Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 97332 |

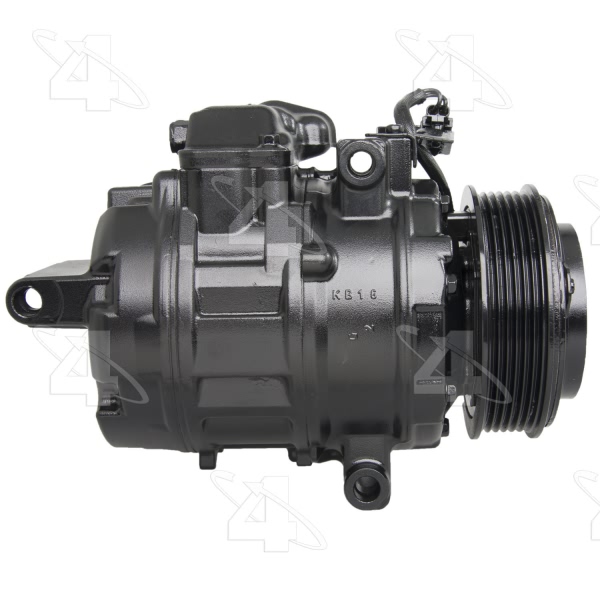

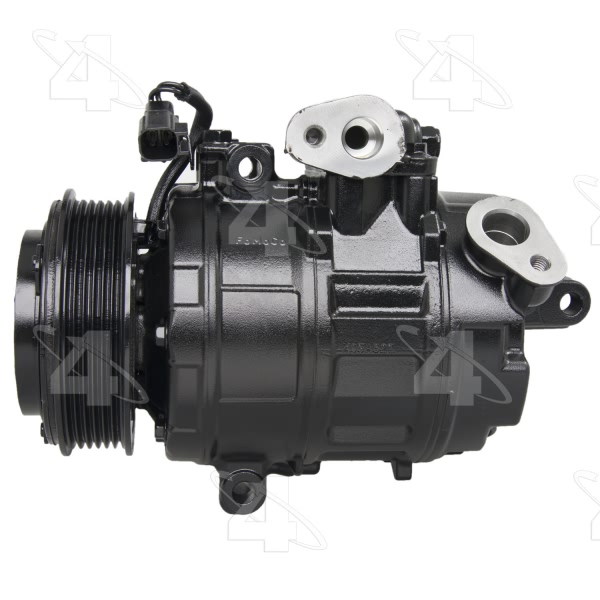

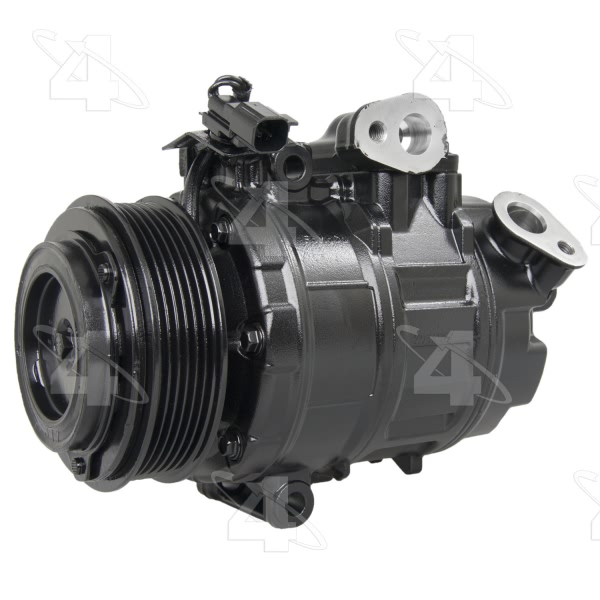

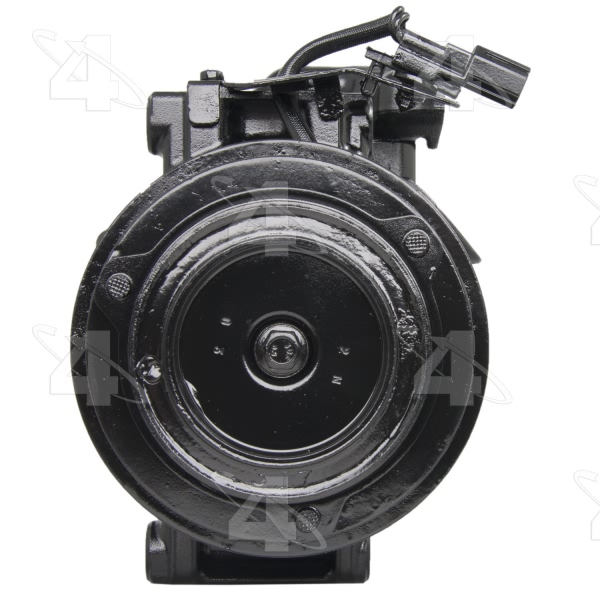

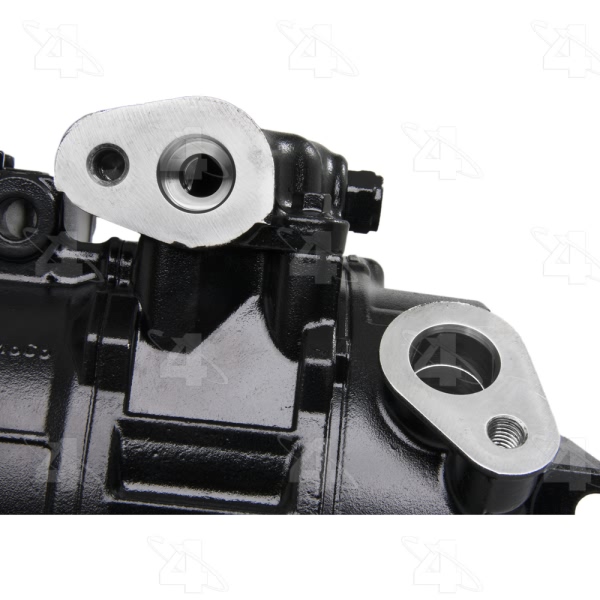

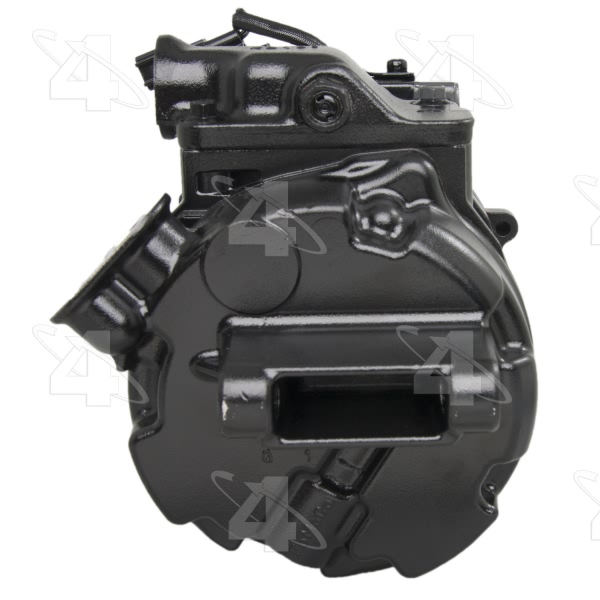

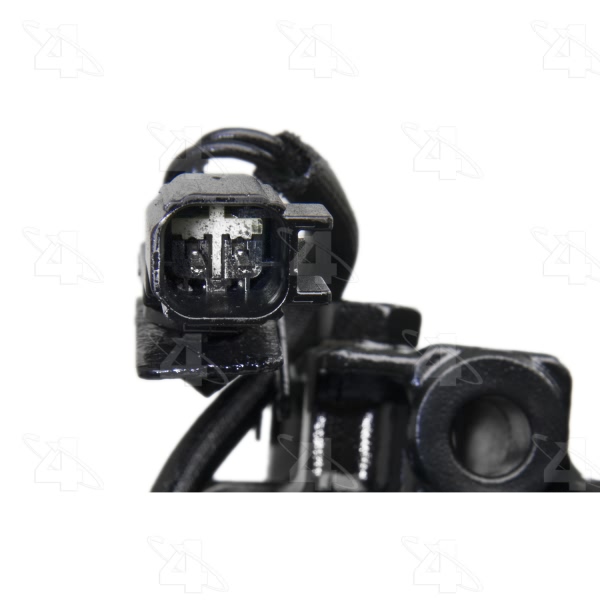

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.3125 |
Coil Clock Position | Pin |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 7SBH17 |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.59375 |
Mount Distance MM | 40.640 |
Mounting Hardware | Not Included |
Mounting Type | 2 Ear & 1 Tangent |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24241] / Sealing Washer Kit |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24243] / Tear Drop Sealing Washer |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 109.728 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.3125 |
Pulley Outside Diameter | 4.3125 |
Pulley Ridge Diameter | 4.3125 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361973329 |
Year Make Model | Trim | Engine |
---|---|---|
2011 Ford Explorer | All Trims | All Engines |
2012-2015 Ford Explorer | All Trims | 6 Cyl 3.5L |
2013 Ford Police Interceptor Utility | All Trims | All Engines |
2014-2015 Ford Police Interceptor Utility | All Trims | 6 Cyl 3.7L |
