Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 97303 |

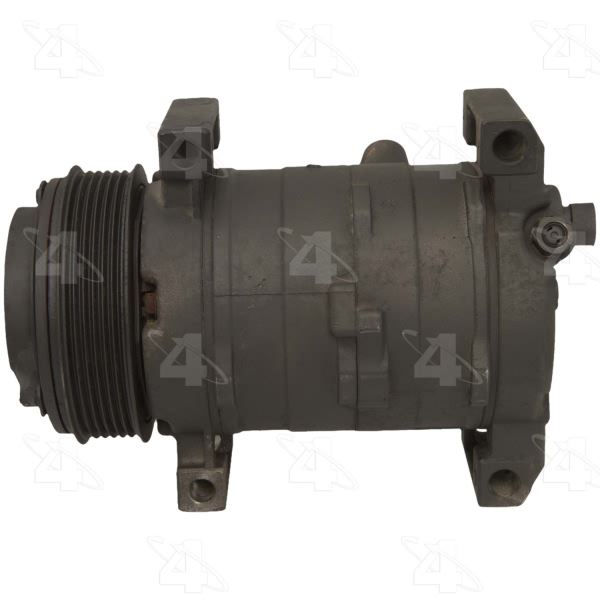

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.500 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10S17F |

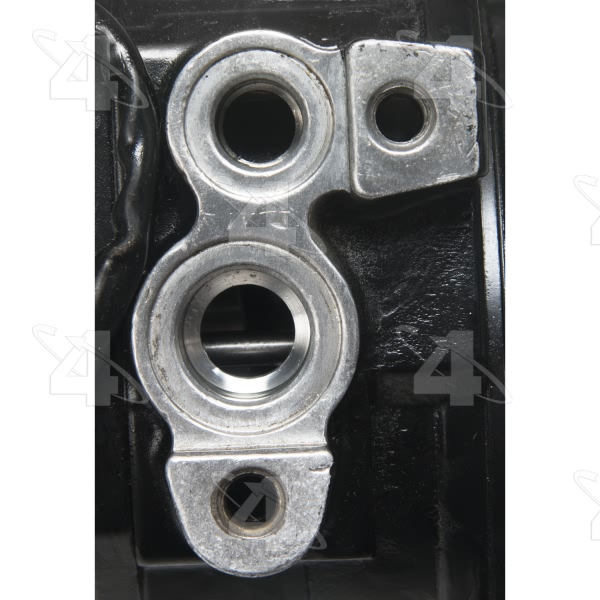

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 0.59375 |
Mount Distance MM | 15.240 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24402] / Slimline Washer |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 114.300 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.500 |
Pulley Outside Diameter | 4.500 |
Pulley Ridge Diameter | 4.500 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |
Switch Included | High Pressure |

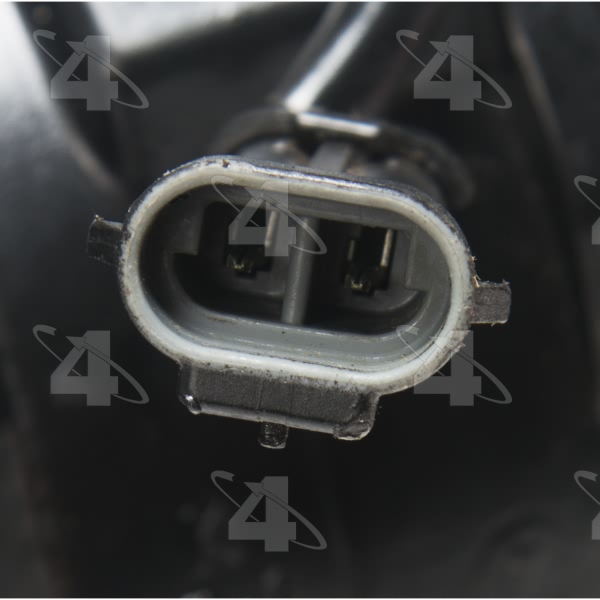

Terminal Type | Pin |
UPC | 096361973039 |
Year Make Model | Trim | Engine |
---|---|---|
2003-2007 Chevrolet Express 1500 | All Trims | 6 Cyl 4.3L |
2003-2006 Chevrolet Express 2500 | All Trims | 6 Cyl 4.3L |
2006-2007 Chevrolet Express 2500 | All Trims | 8 Cyl 6.6L |
2006-2007 Chevrolet Express 3500 | All Trims | 8 Cyl 6.6L |
2003-2007 GMC Savana 1500 | All Trims | 6 Cyl 4.3L |
2003-2006 GMC Savana 2500 | All Trims | 6 Cyl 4.3L |
2006-2007 GMC Savana 2500 | All Trims | 8 Cyl 6.6L |
2006-2007 GMC Savana 3500 | All Trims | 8 Cyl 6.6L |
