Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 97273 |

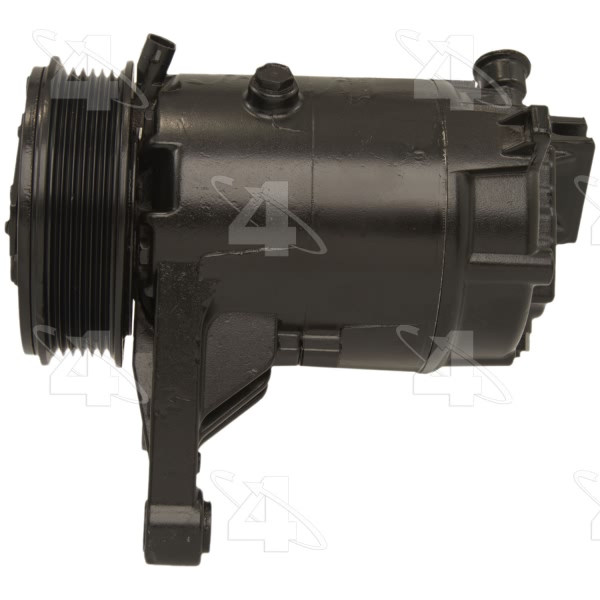

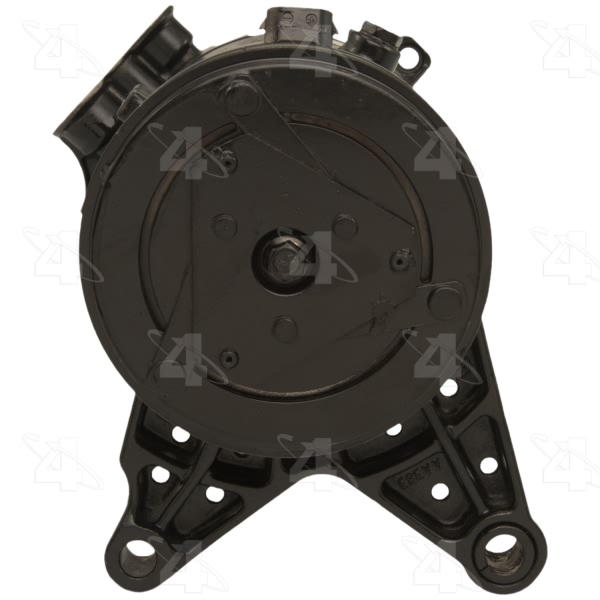

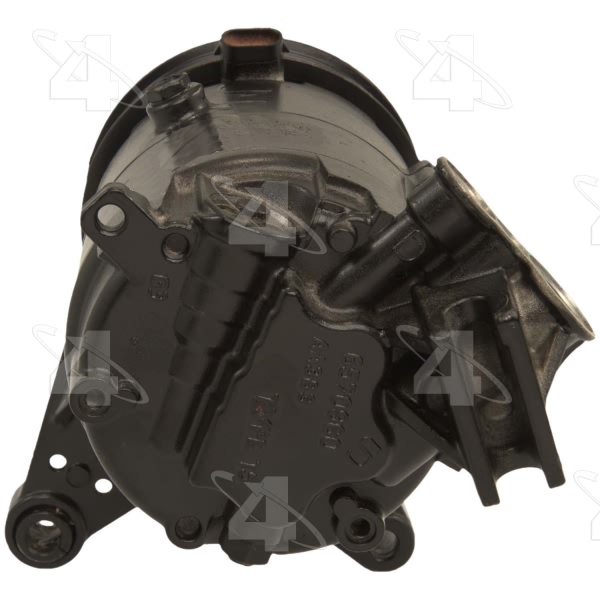

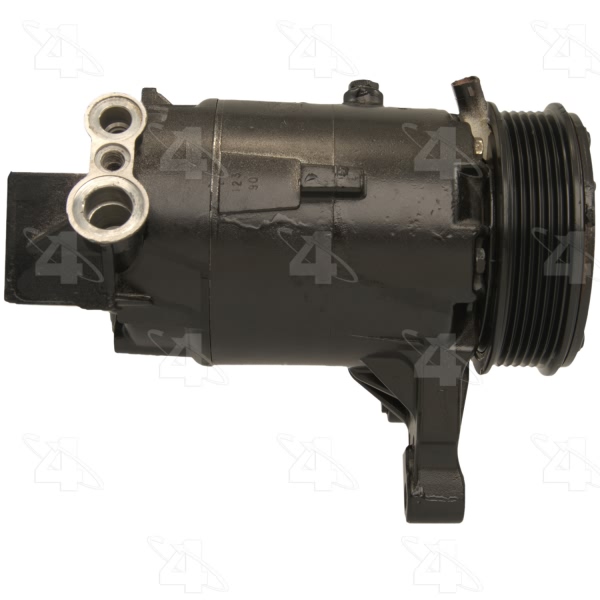

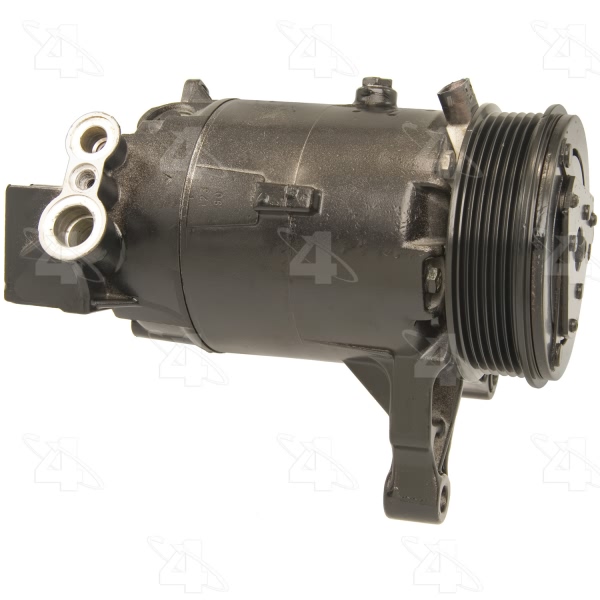

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.250 |
Coil Clock Position | 4 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | CVC |

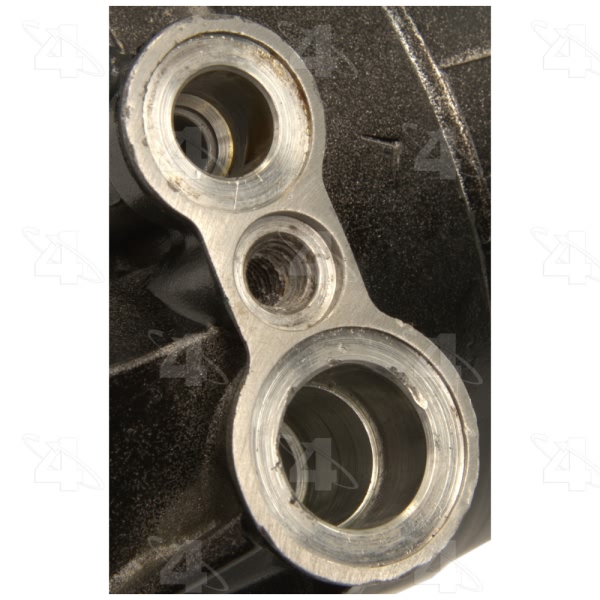

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 0.65625 |
Mount Distance MM | 16.764 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24402] / Slimline Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 114.300 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.250 |
Pulley Outside Diameter | 4.250 |
Pulley Ridge Diameter | 4.250 |
Refrigerant Type | R134a |
Suc Prt Typ Note | 1 O'Clock |
Suction Port Type | Sealing Washer |

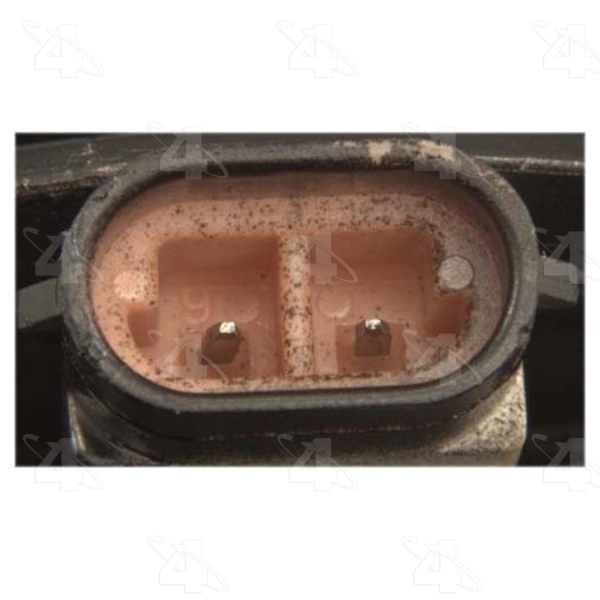

Terminal Type | 8mm Pin Connector |
UPC | 096361972735 |
Year Make Model | Trim | Engine |
---|---|---|
2007 Chevrolet Malibu | All Trims | 6 Cyl 3.9L |
2007-2010 Chevrolet Malibu | All Trims | 6 Cyl 3.5L |
2007-2009 Pontiac G6 | All Trims | 6 Cyl 3.9L |
2007-2010 Pontiac G6 | All Trims | 6 Cyl 3.5L |
2007-2008 Saturn Aura | All Trims | 6 Cyl 3.5L |
