Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 97246 |

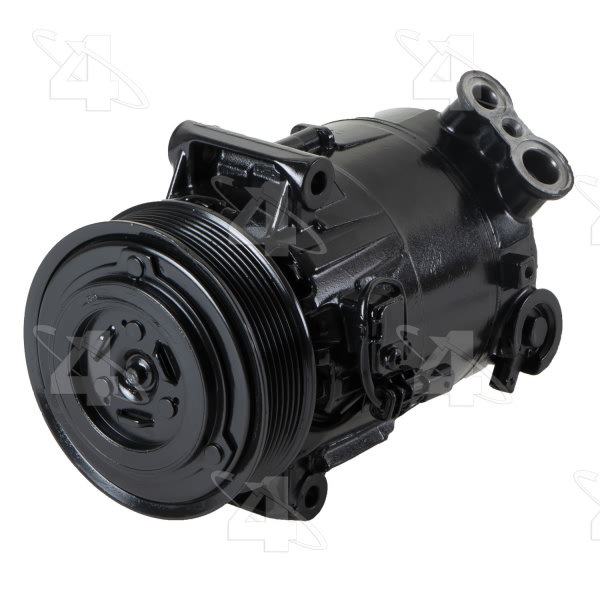

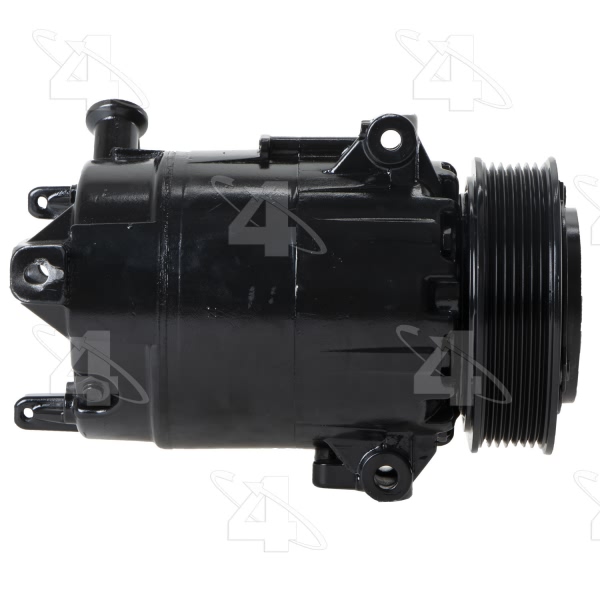

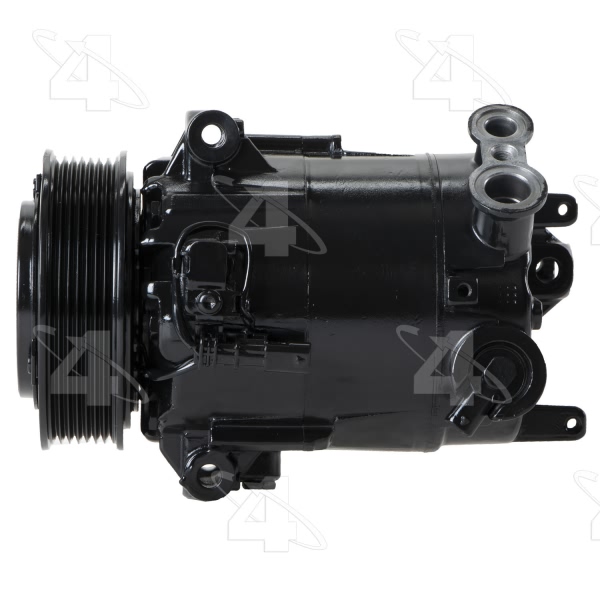

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.71875 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | CVC |
Distance From Clutch To Mounting Flange | 1.171875 |

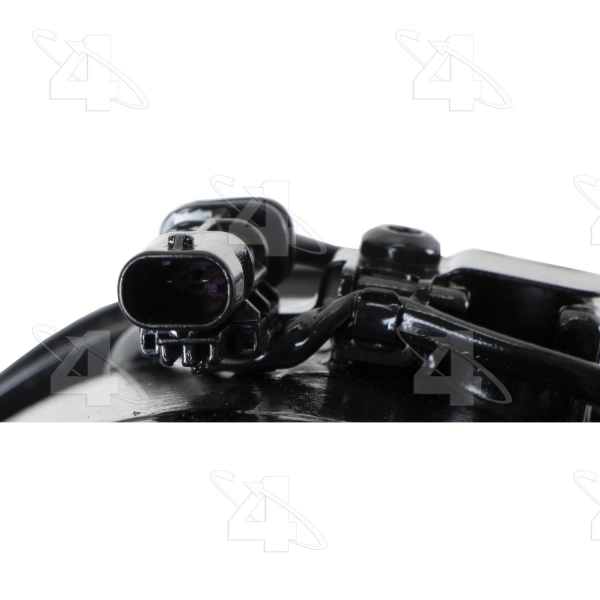

ECV Harness Connector | Compressor SE26F, Vehicle SE23M |
Mounting Hardware | Not Included |
Mounting Type | 3 Tangent One on Rear Head |
New or Reman | Remanufactured |
O-Ring A Number/Desc | 24402 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24404 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 7 |
Pulley Lip Diameter | 4.71875 |
Pulley Outside Diameter | 4.71875 |
Pulley Ridge Diameter | 4.71875 |
Refrigerant Type | R134a |
Terminal Type | Lead Wire |
UPC | 096361090446 |
Year Make Model | Trim | Engine |
---|---|---|
2012-2015 Buick LaCrosse | All Trims | 4 Cyl 2.4L |
2012-2016 Buick Regal | All Trims | 4 Cyl 2.4L |
2014 Chevrolet Impala | All Trims | 4 Cyl 2.4L |
2013-2014 Chevrolet Malibu | All Trims | 4 Cyl 2.4L |
