Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 77593 |

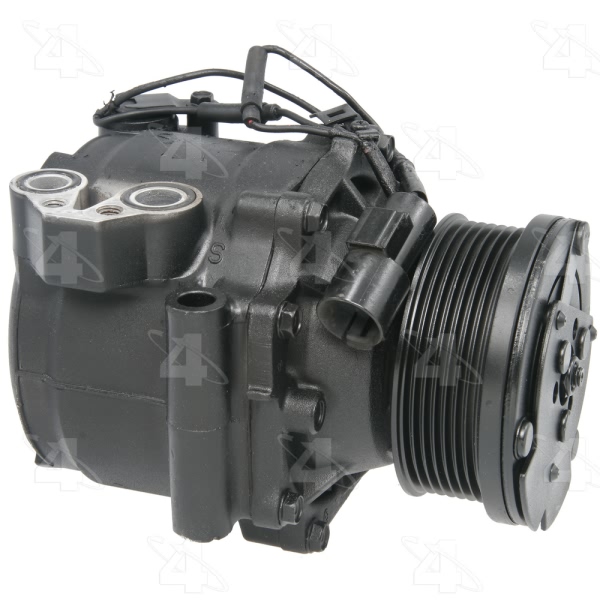

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 3.6875 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | TRS105 |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 2.000 |
Mount Distance MM | 50.800 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24613] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24622] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 93.650 |
Pulley Groove Quantity | 7 |
Pulley Lip Diameter | 3.6875 |
Pulley Outside Diameter | 3.6875 |
Pulley Ridge Diameter | 3.6875 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Switch Included | Heat Sensor |
Terminal Type | Pin |
UPC | 096361775930 |
Year Make Model | Trim | Engine |
---|---|---|
1995 Land Rover Range Rover | All Trims | 8 Cyl 3.9L |
1995 Land Rover Range Rover | All Trims | 8 Cyl 4.0L |
1996-1998 Land Rover Range Rover | All Trims | All Engines |
