Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 77580 |

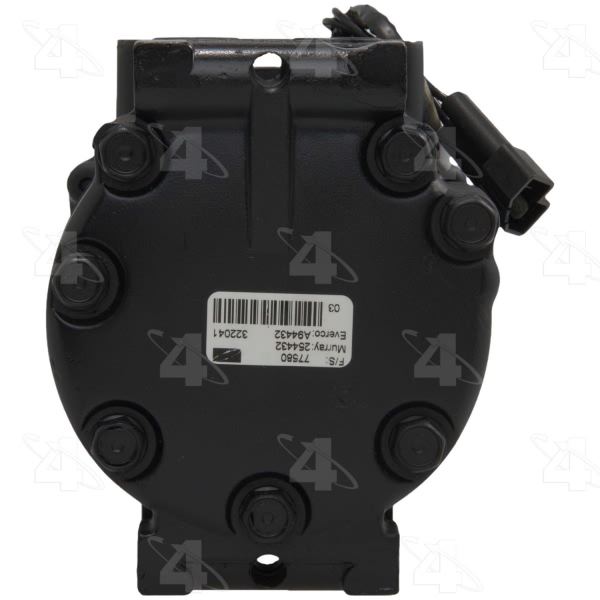

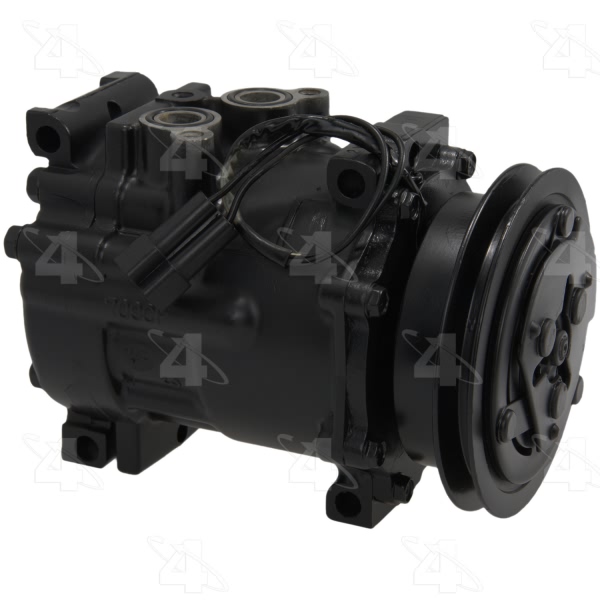

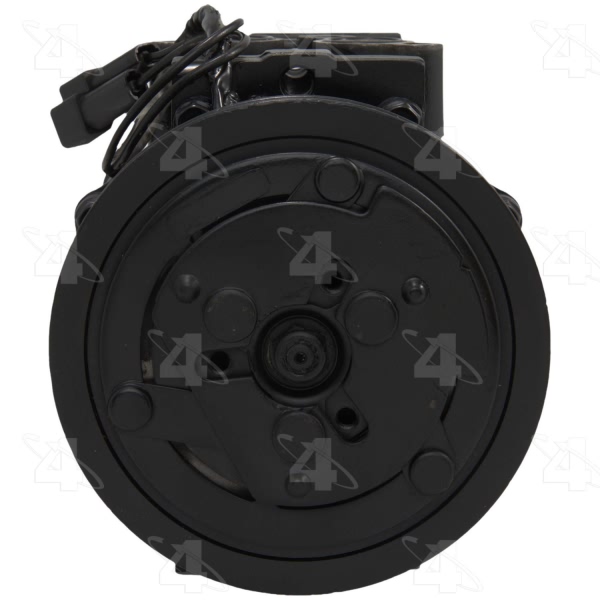

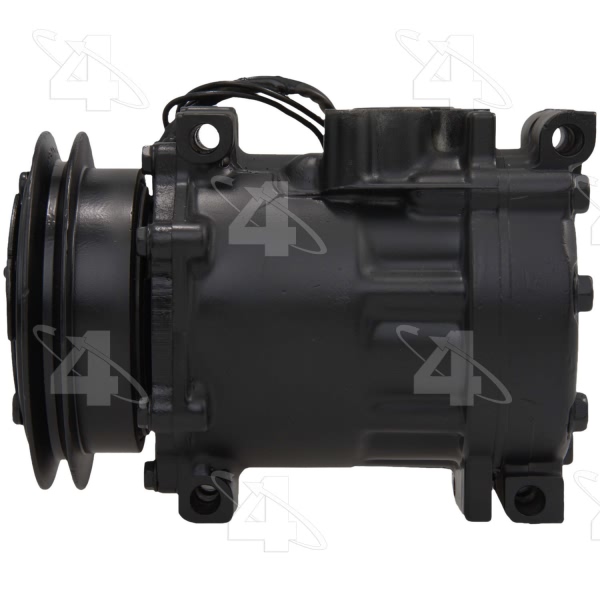

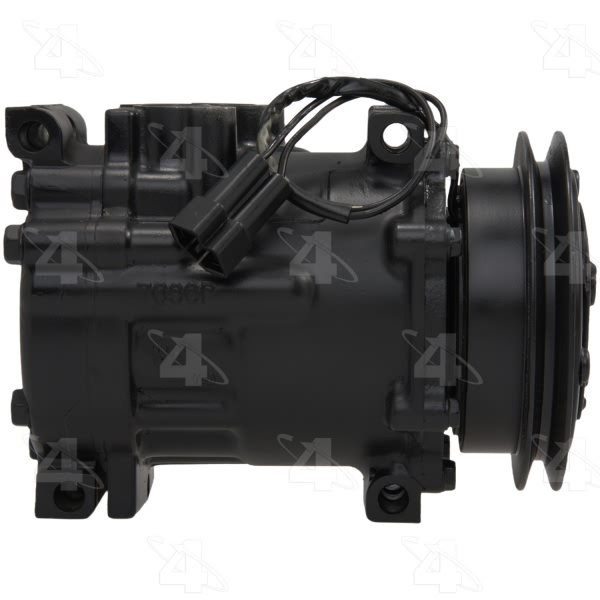

Part Description | Remanufactured A C Compressor With Clutch |
Belt Width IN | 0.500 |
Belt Width MM | 12.700 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.203125 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Comp Head Prt Config | No Ports on Head |
Compatible Refrigerant Oil Type | PAG 100 |
Compressor Head Type | GC |
Compressor Type | SD7H15 |

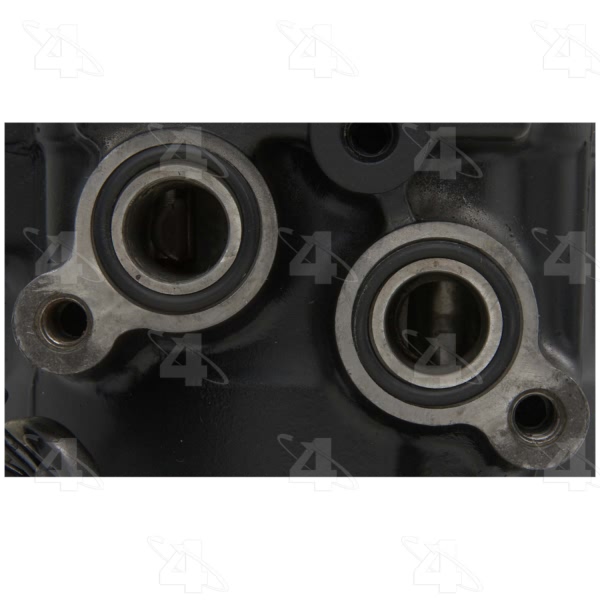

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.703125 |
Mount Distance MM | 43.180 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24613] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24622] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 132.080 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 5.203125 |
Pulley Outside Diameter | 5.203125 |
Pulley Ridge Diameter | 5.203125 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |

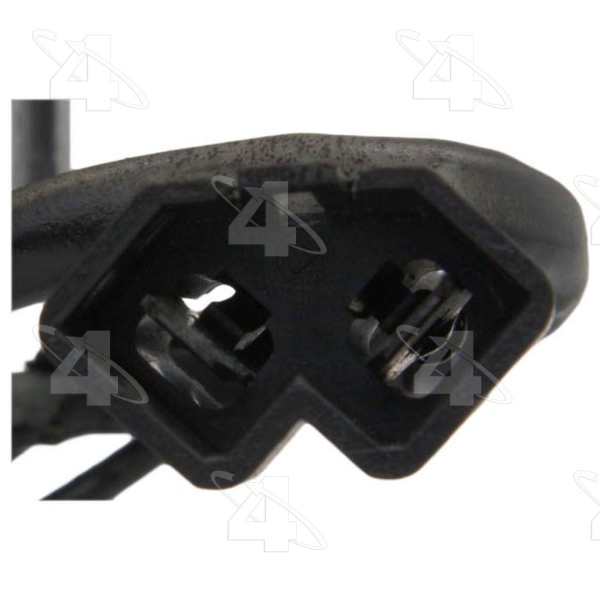

Terminal Type | Pin |
UPC | 096361775800 |
Year Make Model | Trim | Engine |
---|---|---|
1992-1993 Dodge Dakota | All Trims | 4 Cyl 2.5L |
