Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 77554 |

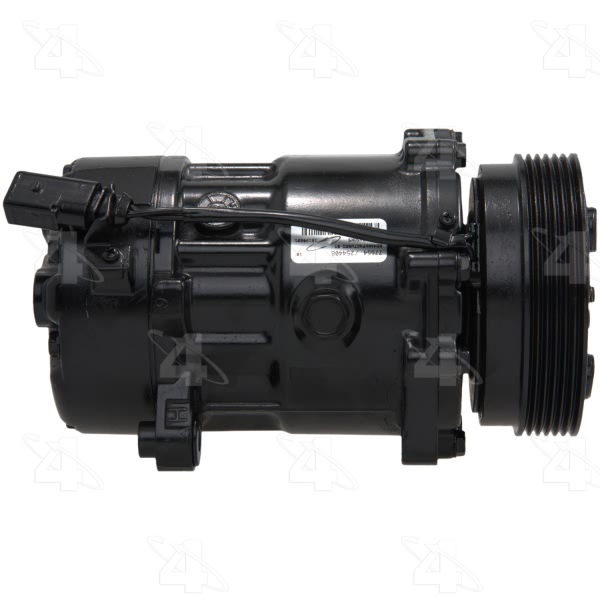

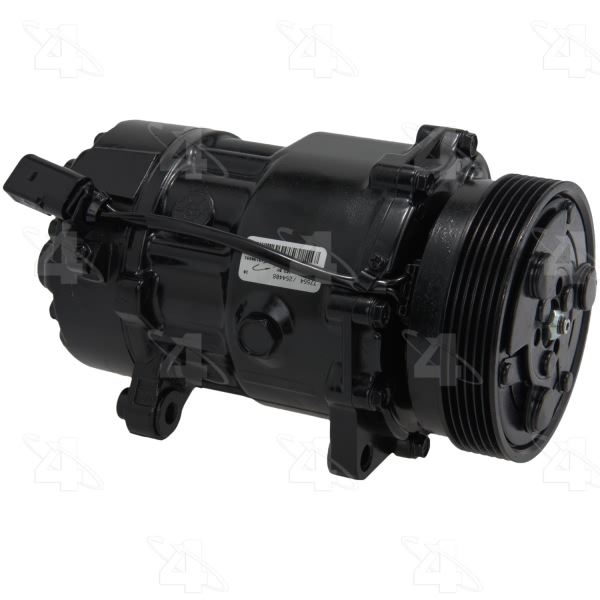

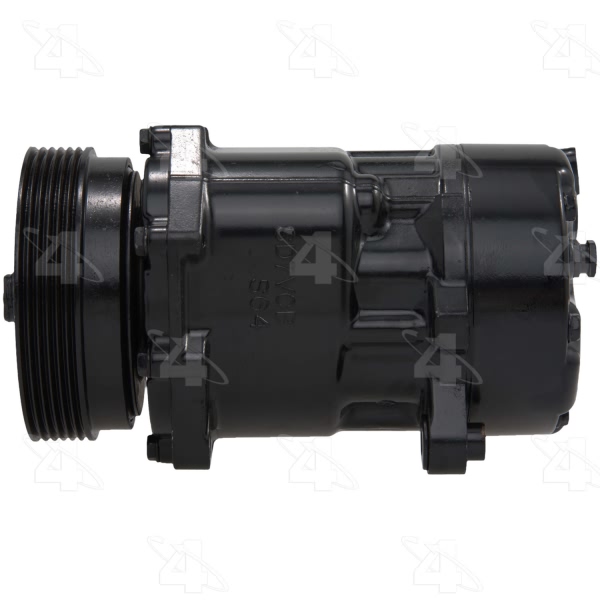

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.750 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Comp Head Prt Config | Rear-Vert-Pad |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Head Type | VQL |
Compressor Type | SD7V16 |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.453125 |
Mount Distance MM | 36.830 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 120.650 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.750 |
Pulley Outside Diameter | 4.750 |
Pulley Ridge Diameter | 4.750 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361775541 |
Year Make Model | Trim | Engine |
---|---|---|
1998-2003 Audi A3 | All Trims | All Engines |
1999-2000 Audi TT | All Trims | All Engines |
2002-2006 Audi TT | All Trims | All Engines |
2000 Audi TT Quattro | All Trims | All Engines |
2002-2006 Audi TT Quattro | All Trims | All Engines |
2002-2008 Seat Alhambra | All Trims | All Engines |
2001-2002 Seat Cordoba | All Trims | All Engines |
2001-2002 Seat Ibiza | All Trims | All Engines |
2001-2006 Seat Leon | All Trims | All Engines |
2001-2006 Seat Toledo | All Trims | All Engines |
