Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 77499 |

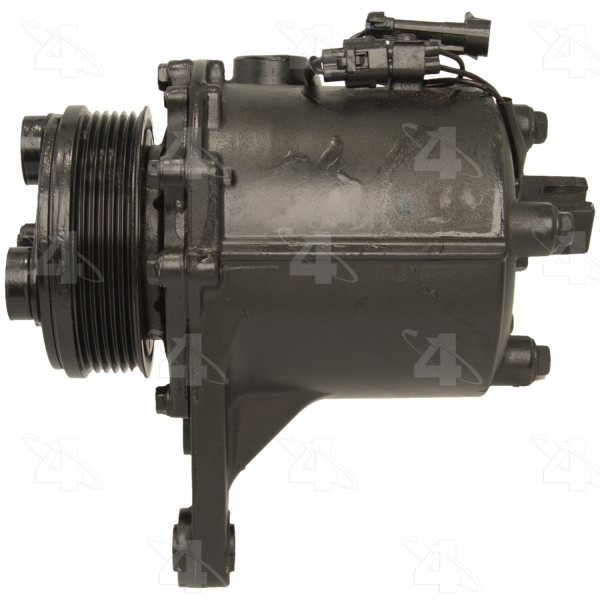

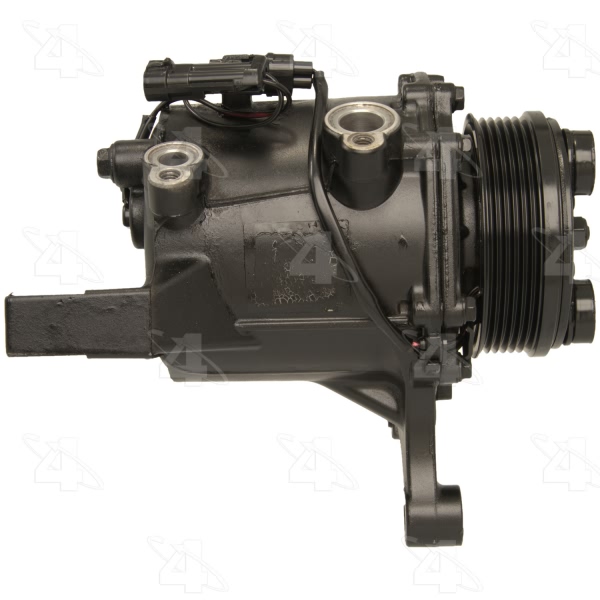

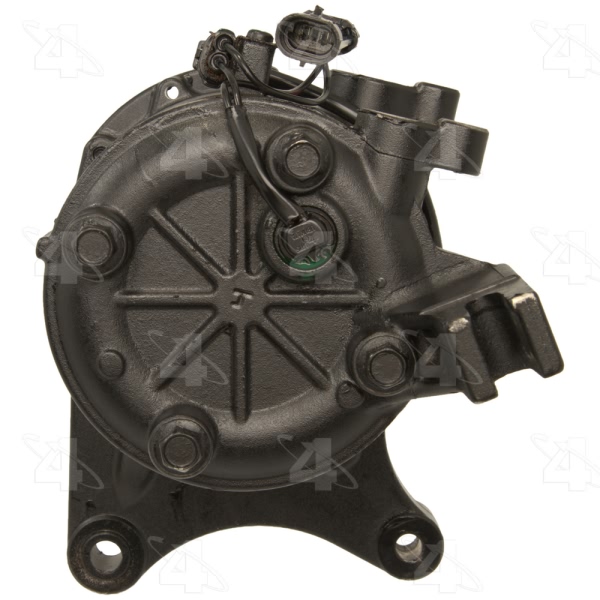

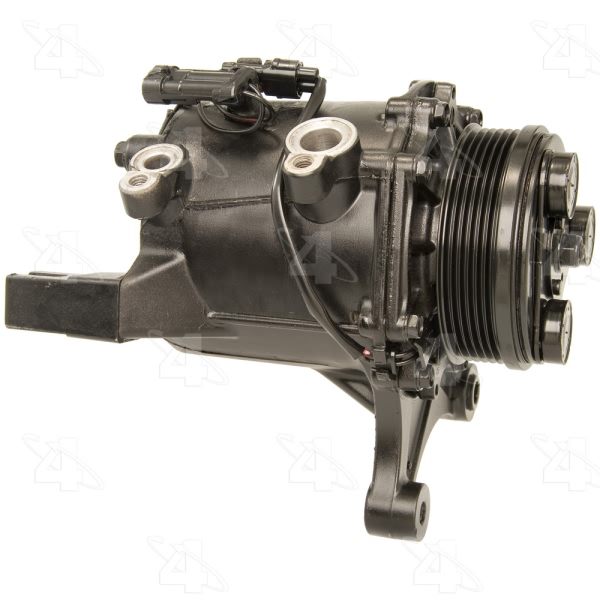

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.000 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | MSC105CG2 |

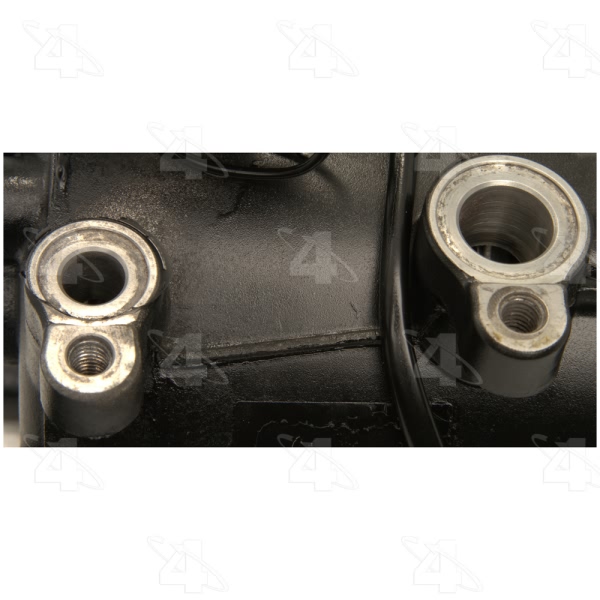

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 0.859375 |
Mount Distance MM | 21.590 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24402] / Slimline Washer |
O-Ring B Quantity | 1 |

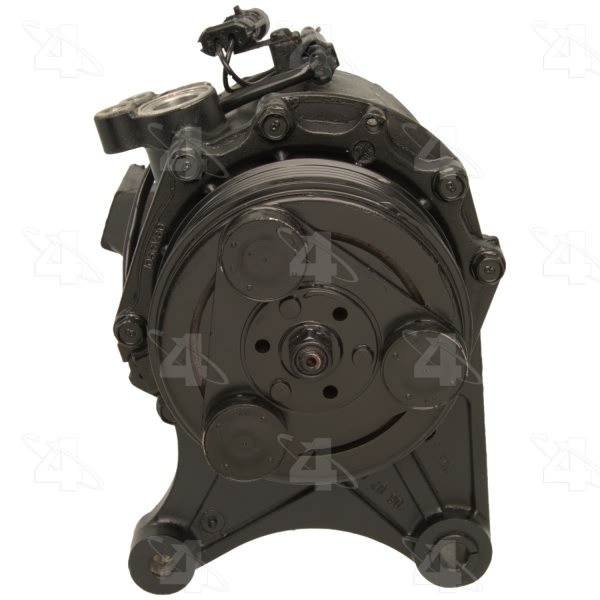

Pulley Belt Type | Serpentine |
Pulley Diameter MM | 101.600 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.000 |
Pulley Outside Diameter | 4.000 |
Pulley Ridge Diameter | 4.000 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |

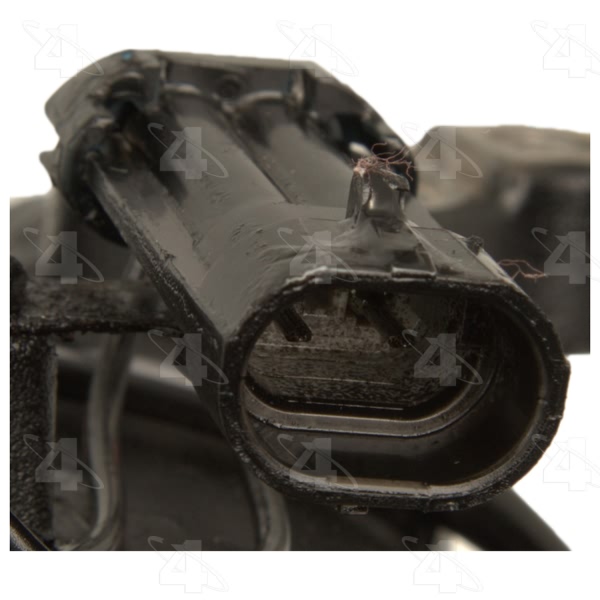

Terminal Type | Pin |
UPC | 096361774995 |
Year Make Model | Trim | Engine |
---|---|---|
2006 Buick Terraza | All Trims | 6 Cyl 3.9L |
2007 Buick Terraza | All Trims | All Engines |
2006 Chevrolet Uplander | All Trims | 6 Cyl 3.9L |
2007-2009 Chevrolet Uplander | All Trims | All Engines |
2006 Pontiac Montana | All Trims | 6 Cyl 3.9L |
2007-2008 Pontiac Montana | All Trims | All Engines |
2006 Saturn Relay | All Trims | 6 Cyl 3.9L |
2007 Saturn Relay | All Trims | All Engines |
