Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 77495 |

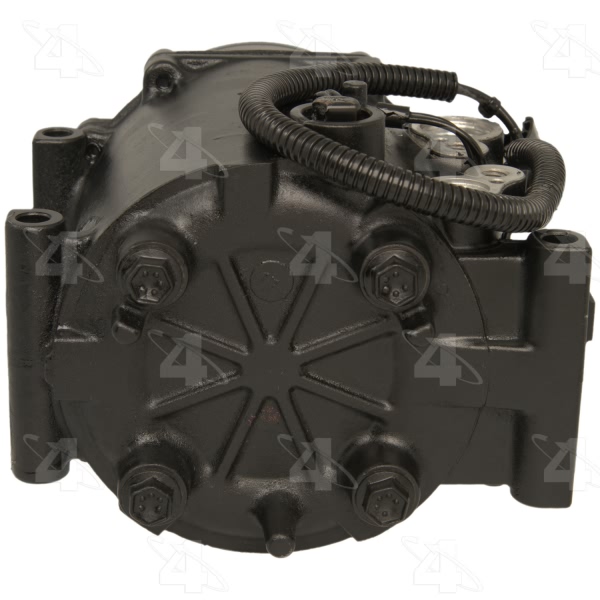

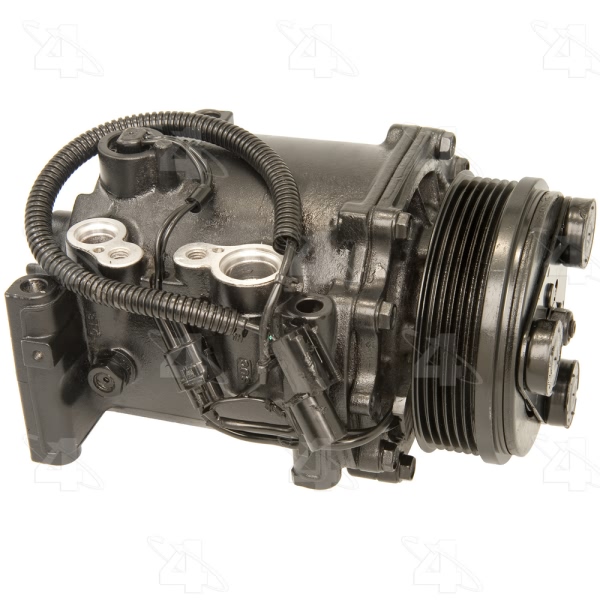

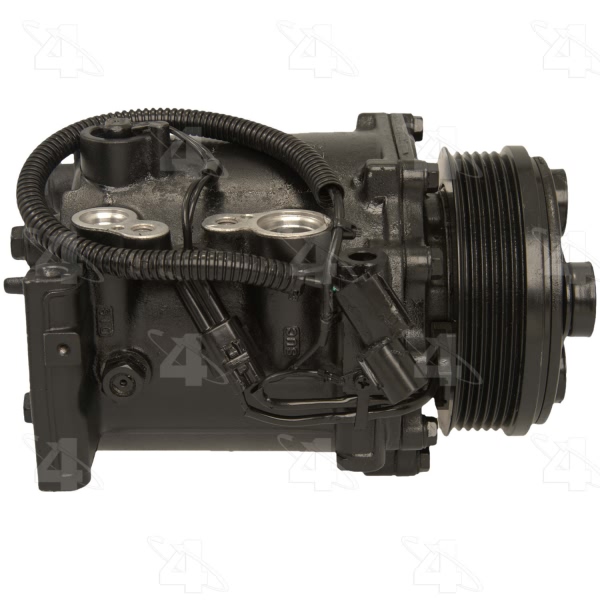

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.3125 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | MSC105C |

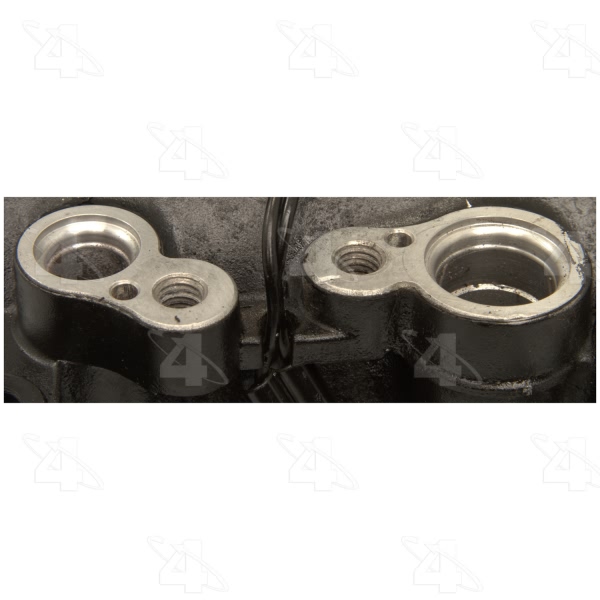

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.15625 |
Mount Distance MM | 29.210 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24131] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24679] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 109.550 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.3125 |
Pulley Outside Diameter | 4.3125 |
Pulley Ridge Diameter | 4.3125 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Switch Included | Heat Sensor |

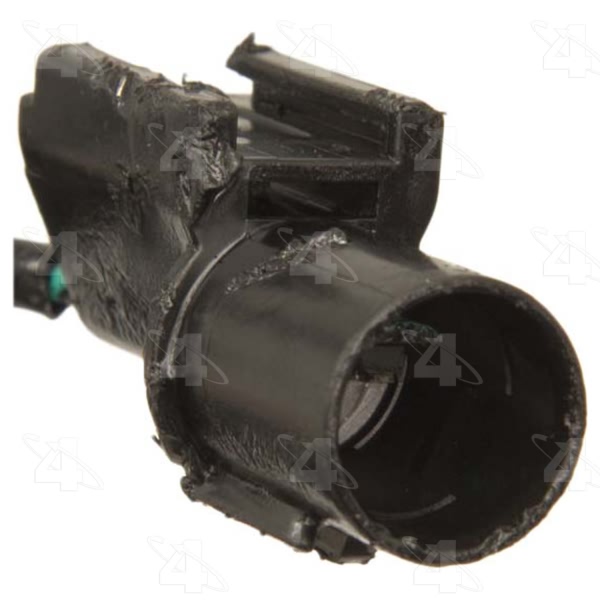

Terminal Type | Pin |
UPC | 096361774957 |
Year Make Model | Trim | Engine |
---|---|---|
2004-2006 Mitsubishi Outlander | All Trims | All Engines |
