Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 77486 |

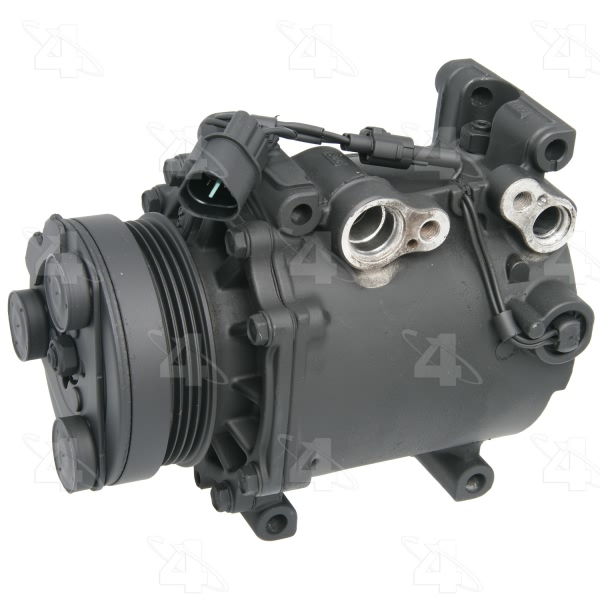

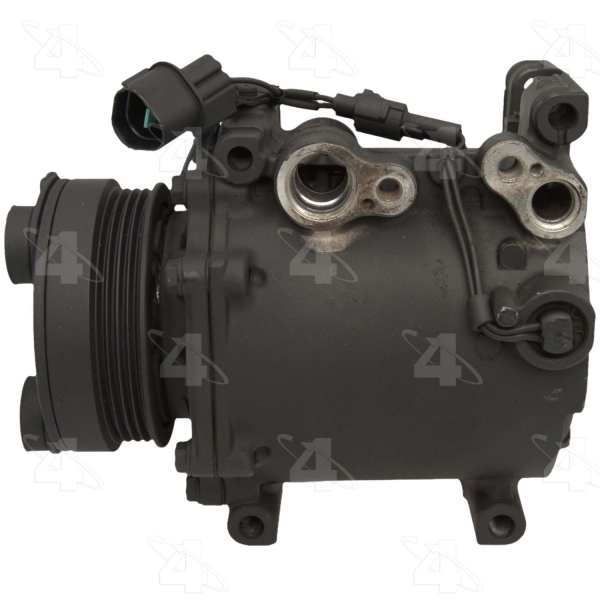

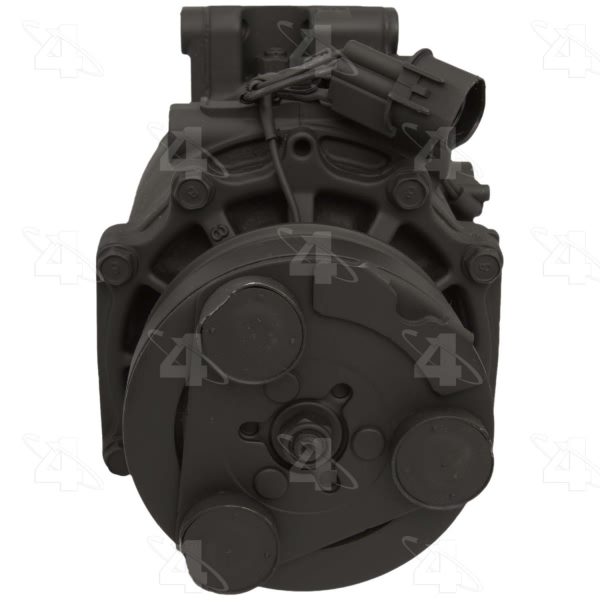

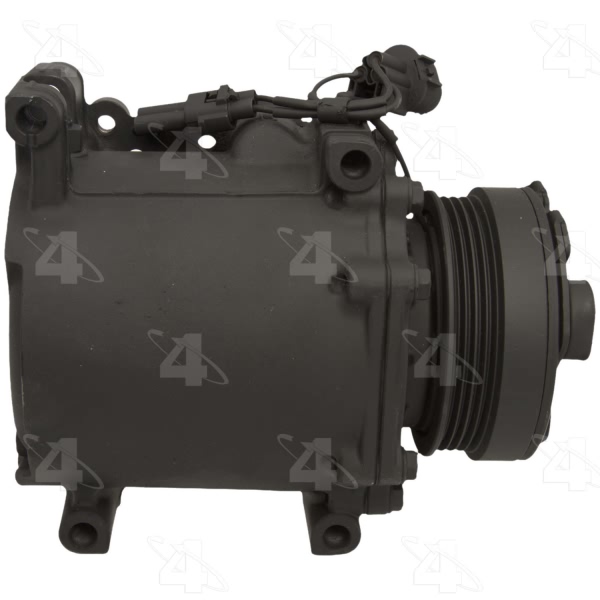

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 3.750 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | MSC90C |
Distance From Clutch To Mounting Flange | 1.09375 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24131] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24679] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 95.250 |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 3.750 |
Pulley Outside Diameter | 3.750 |
Pulley Ridge Diameter | 3.750 |
Refrigerant Type | R134a |

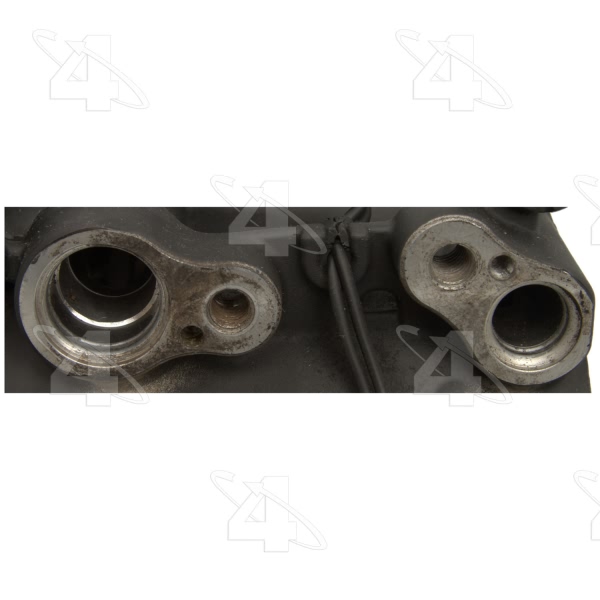

Suction Port Type | O-Ring |
Switch Included | Heat Switch |

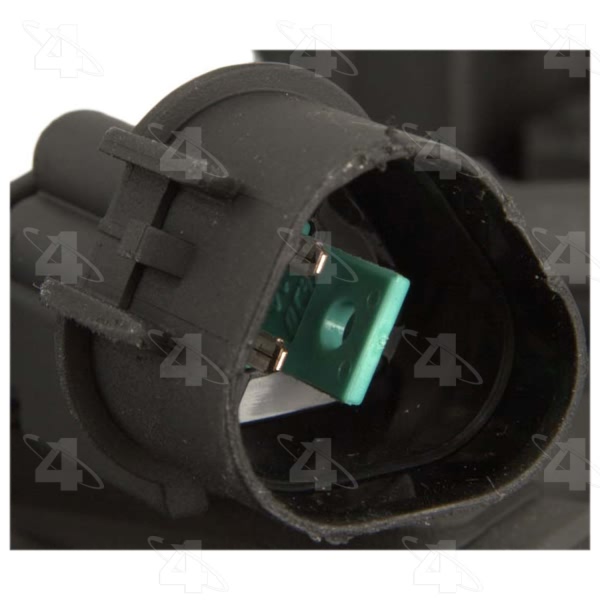

Terminal Type | Pin |
UPC | 096361774865 |
Year Make Model | Trim | Engine |
---|---|---|
1998-2000 Chrysler Sebring | All Trims | 6 Cyl 2.5L |
1998-1999 Dodge Avenger | All Trims | 6 Cyl 2.5L |
2000 Dodge Avenger | All Trims | All Engines |
