Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 77394 |

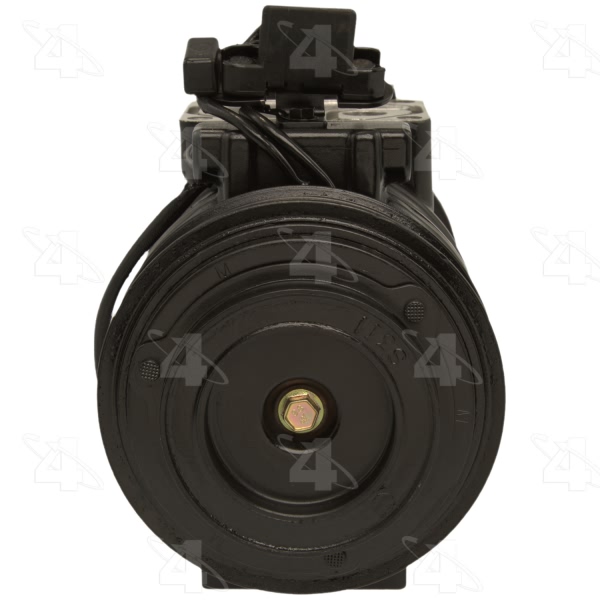

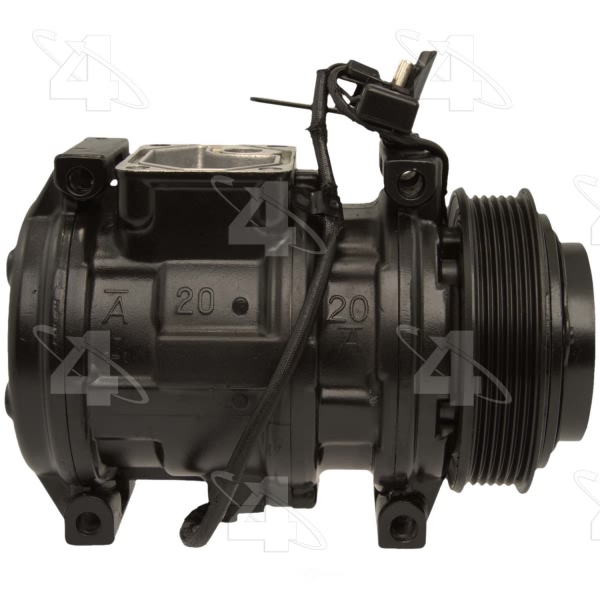

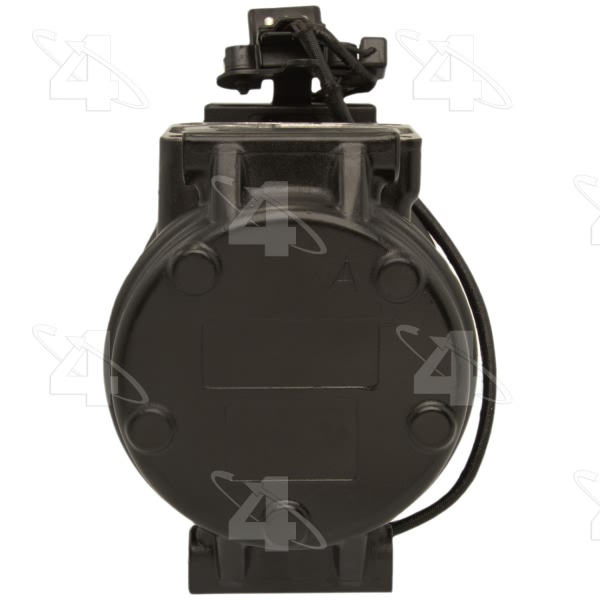

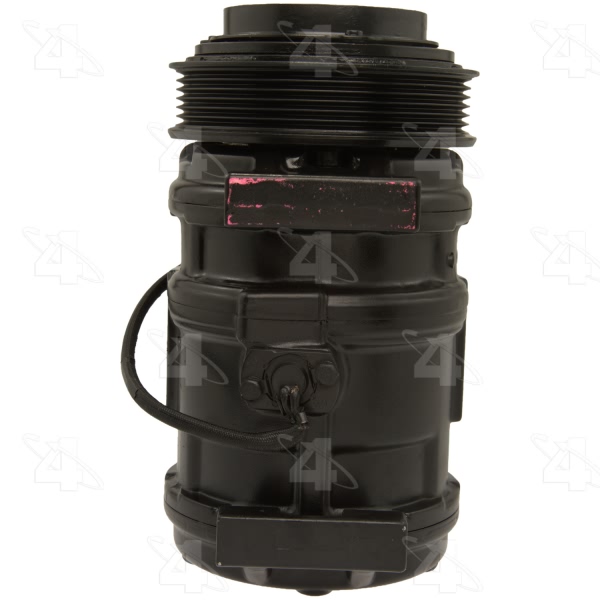

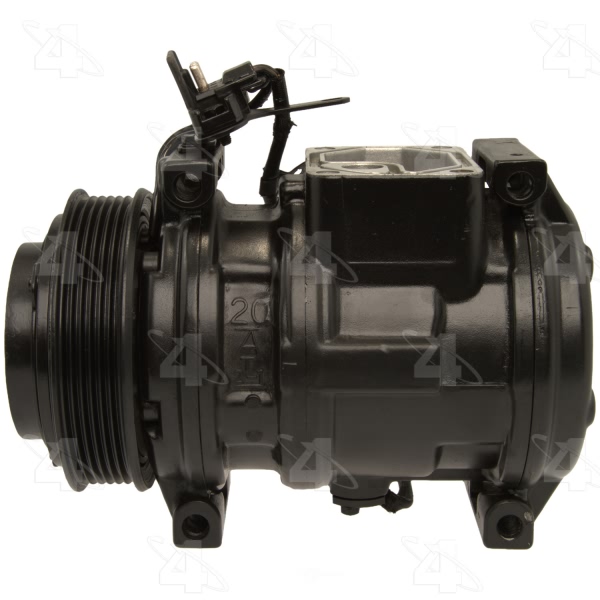

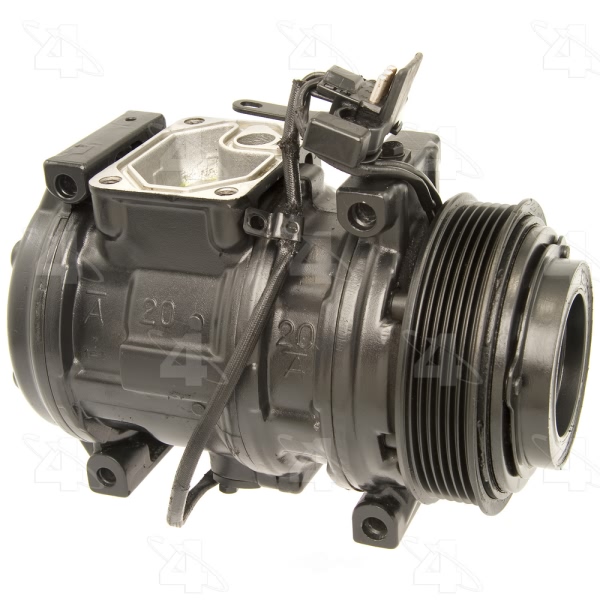

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.09375 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10PA20C |

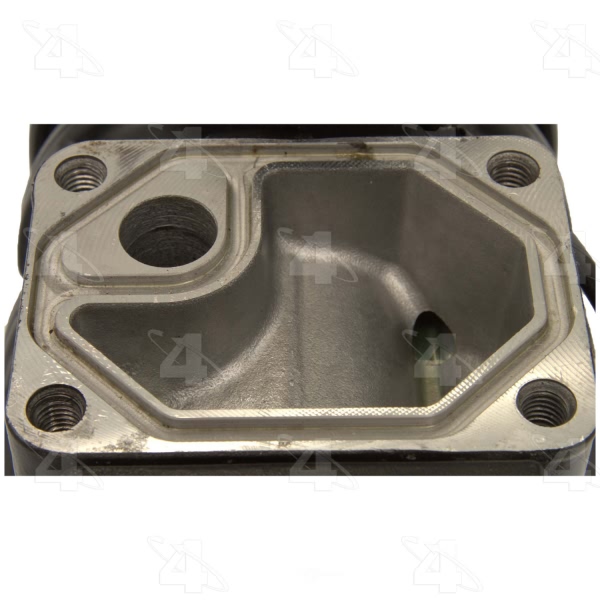

Discharge Port Type | Pad Mount |
Distance From Clutch To Mounting Flange | 0.59375 |
Mount Distance MM | 15.240 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24156] / Compressor Manifold Port Gasket |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 104.140 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.09375 |
Pulley Outside Diameter | 4.09375 |
Pulley Ridge Diameter | 4.09375 |
Refrigerant Type | R134a |
Suction Port Type | Pad Mount |
Switch Included | Speed Sensor |

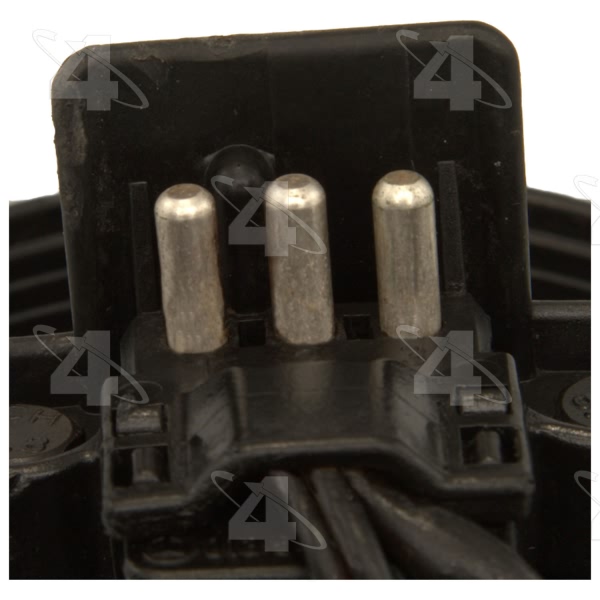

Terminal Type | Lead Wire |
UPC | 096361773943 |
Year Make Model | Trim | Engine |
---|---|---|
1992-1993 Mercedes-Benz 300SD | All Trims | All Engines |
1993 Mercedes-Benz 300SE | All Trims | All Engines |
1992 Mercedes-Benz 400SE | All Trims | All Engines |
1993 Mercedes-Benz 400SEL | All Trims | All Engines |
1992-1993 Mercedes-Benz 500SEL | All Trims | All Engines |
1998-1999 Mercedes-Benz CL600 | All Trims | All Engines |
1996-1999 Mercedes-Benz S320 | All Trims | All Engines |
1997-1999 Mercedes-Benz S600 | All Trims | All Engines |
