Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 77390 |

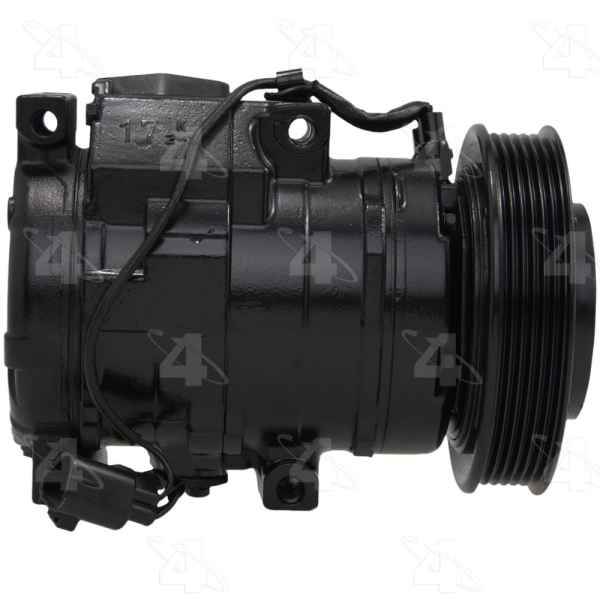

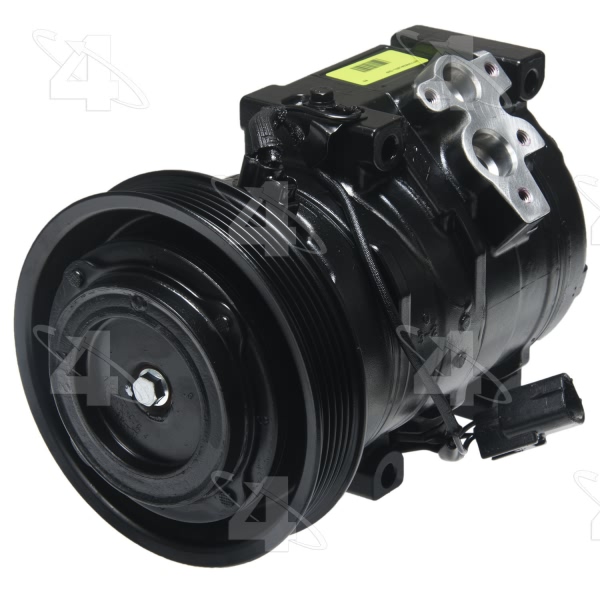

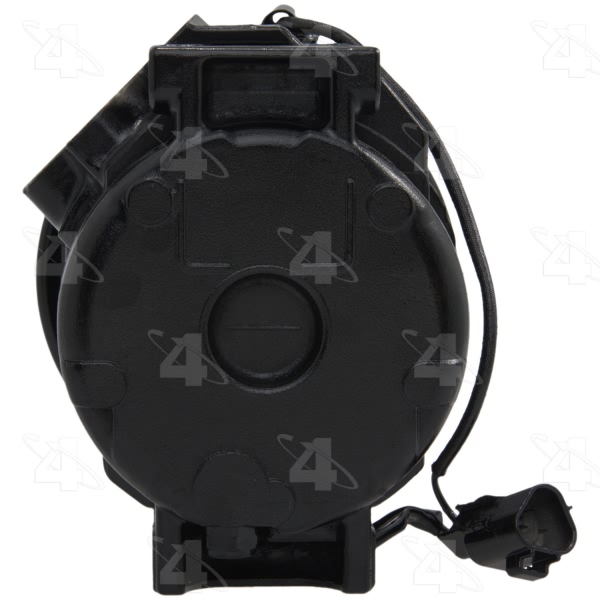

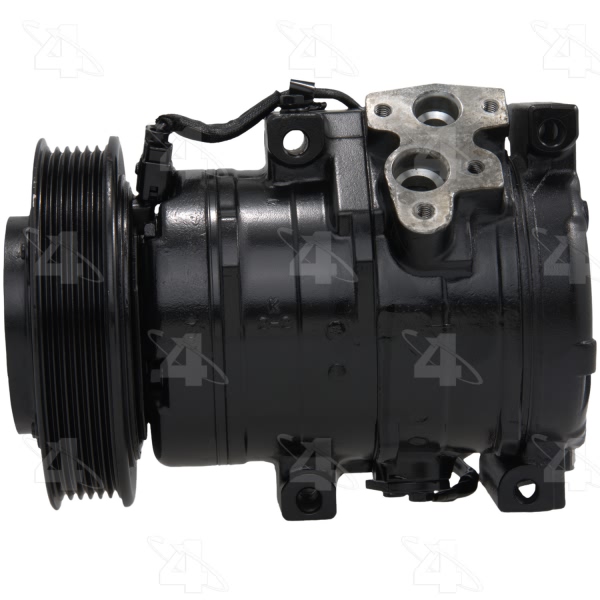

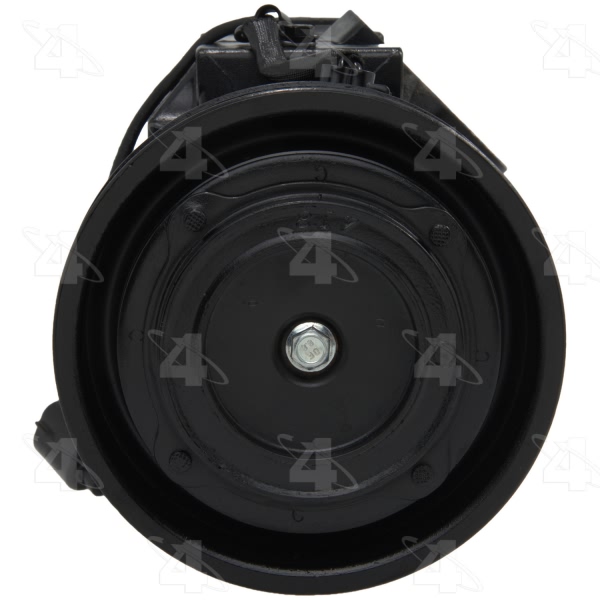

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.0625 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10S17C |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 2.328125 |
Mount Distance MM | 59.182 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 128.575 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.0625 |
Pulley Outside Diameter | 5.0625 |
Pulley Ridge Diameter | 5.0625 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Switch Included | Speed Sensor |

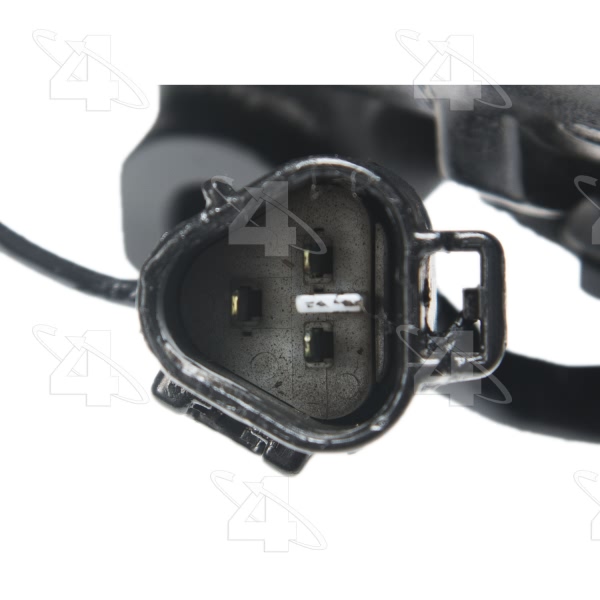

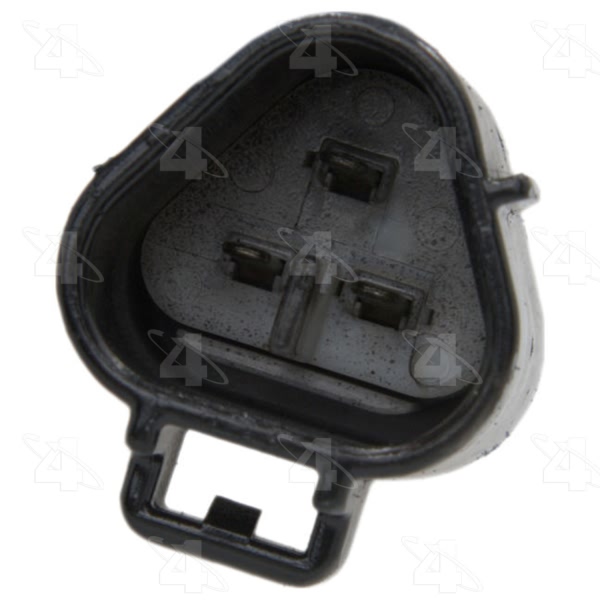

Terminal Type | Pin |
UPC | 096361773905 |
Year Make Model | Trim | Engine |
---|---|---|
1999-2003 Lexus ES300 | All Trims | All Engines |
2004-2006 Lexus ES330 | All Trims | All Engines |
1999-2003 Lexus RX300 | All Trims | All Engines |
2004-2006 Lexus RX330 | All Trims | All Engines |
2000-2004 Toyota Avalon | All Trims | All Engines |
2002-2006 Toyota Camry | All Trims | 6 Cyl 3.0L |
2004-2006 Toyota Camry | All Trims | 6 Cyl 3.3L |
2001-2003 Toyota Highlander | All Trims | 6 Cyl 3.0L |
2004-2007 Toyota Highlander | All Trims | 6 Cyl 3.3L |
2004-2008 Toyota Solara | All Trims | 6 Cyl 3.3L |
