Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 77388 |

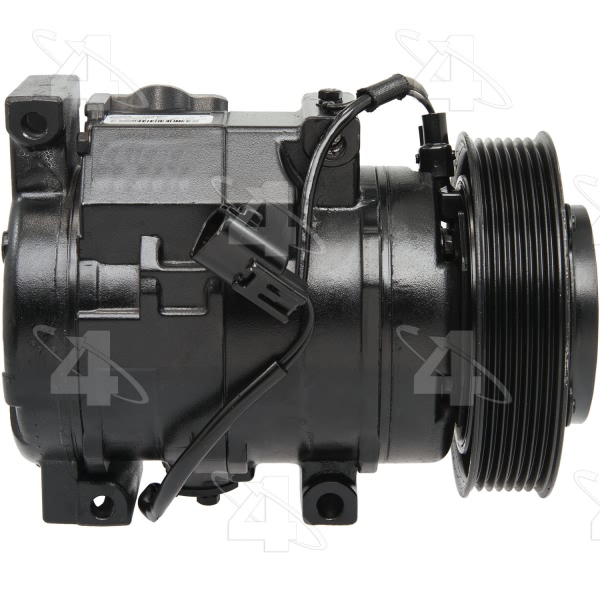

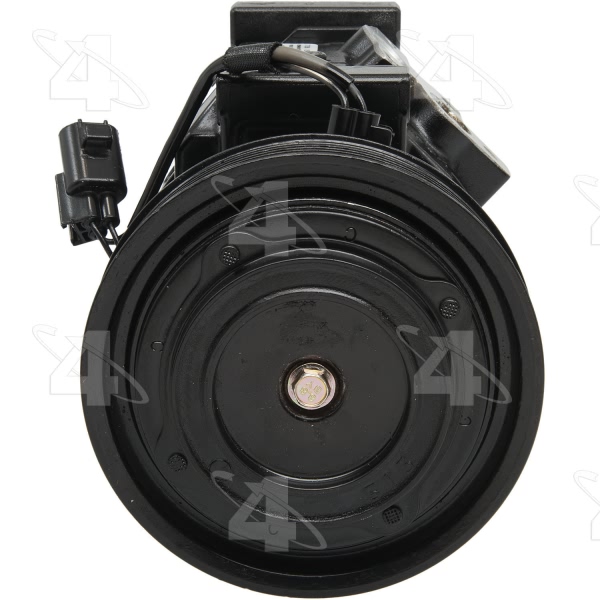

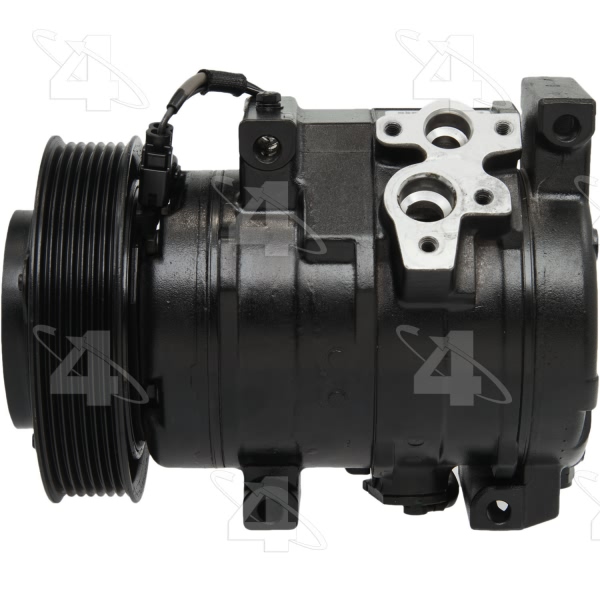

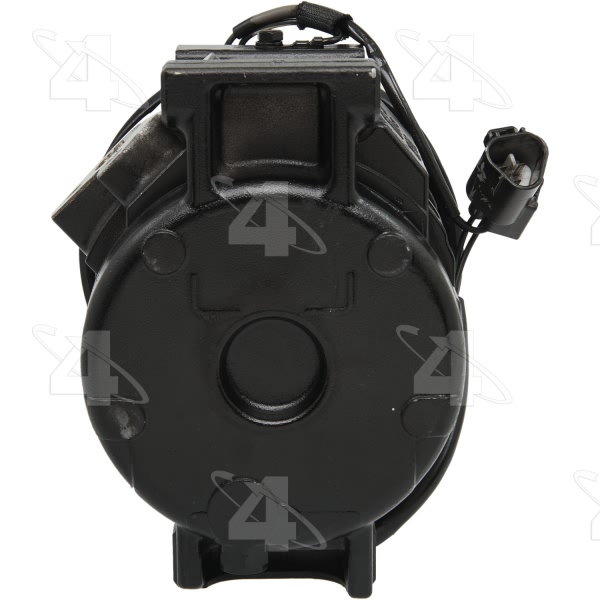

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.125 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10S17C |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.65625 |
Mount Distance MM | 42.164 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold; DeSlugger [36140] Recommended to Eliminate Compressor Damage on Vehicles with Low Mount Compressor |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 130.175 |
Pulley Groove Quantity | 7 |
Pulley Lip Diameter | 5.125 |
Pulley Outside Diameter | 5.125 |
Pulley Ridge Diameter | 5.125 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Switch Included | Speed Sensor |
Terminal Type | Pin |
UPC | 096361773882 |
Year Make Model | Trim | Engine |
---|---|---|
2002-2006 Toyota Camry | All Trims | 4 Cyl 2.4L |
2001-2007 Toyota Highlander | All Trims | 4 Cyl 2.4L |
2002-2008 Toyota Solara | All Trims | 4 Cyl 2.4L |
