Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 77380 |

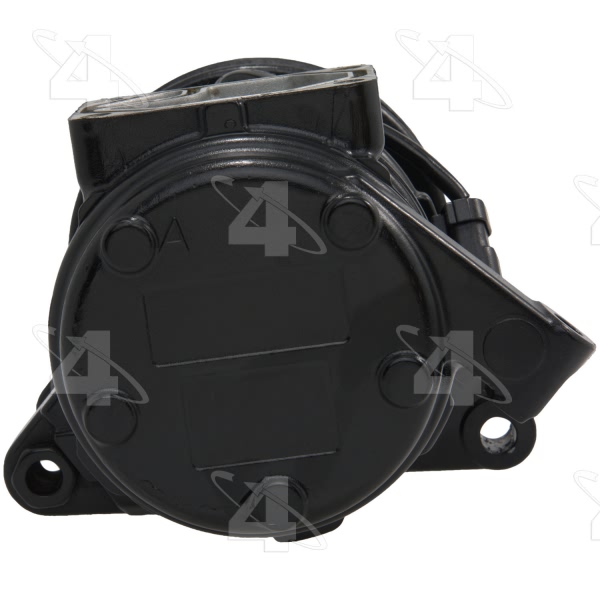

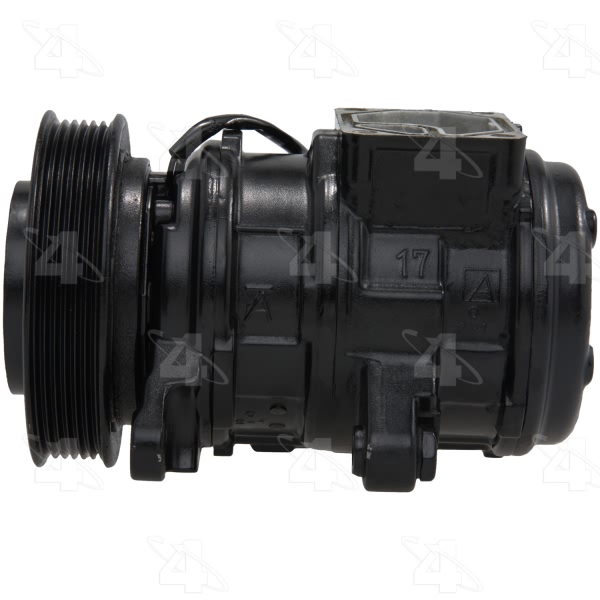

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.125 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10PA17E |

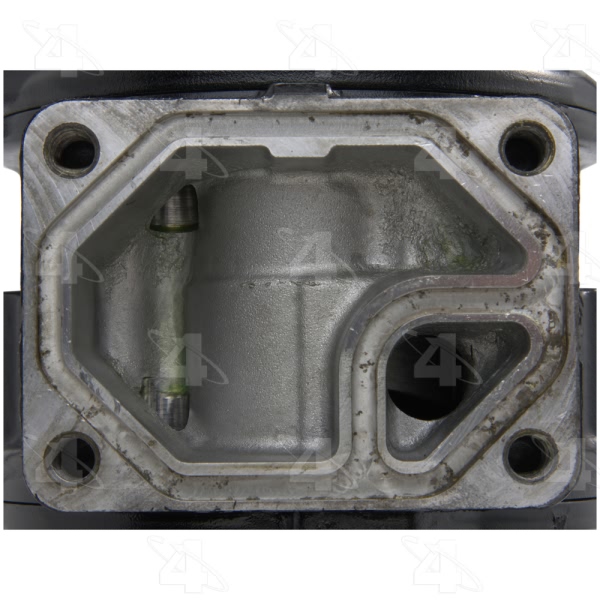

Discharge Port Type | Pad Mount |
Distance From Clutch To Mounting Flange | 2.046875 |
Mount Distance MM | 52.070 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24156] / Compressor Manifold Port Gasket |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |

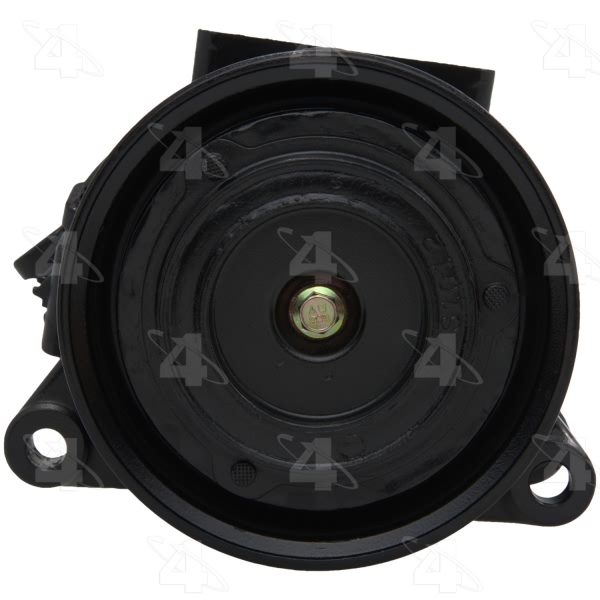

Pulley Belt Type | Serpentine |
Pulley Diameter MM | 130.175 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.125 |
Pulley Outside Diameter | 5.125 |
Pulley Ridge Diameter | 5.125 |
Refrigerant Type | R134a |
Suction Port Type | Pad Mount |

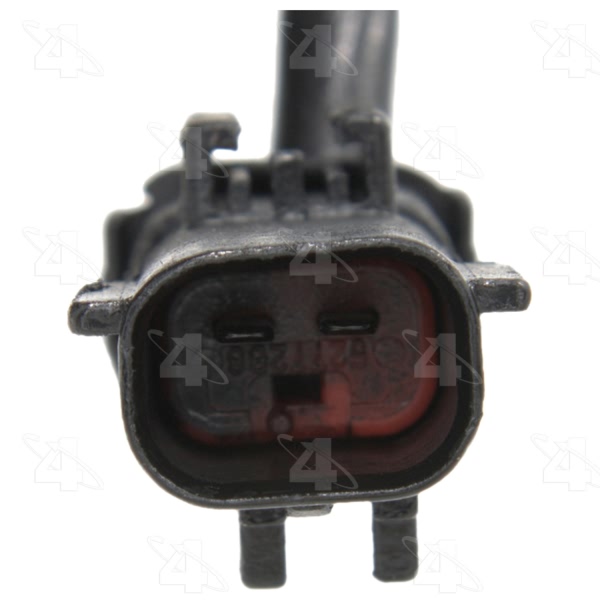

Terminal Type | Pin |
UPC | 096361773806 |
Year Make Model | Trim | Engine |
---|---|---|
1999-2004 Jeep Grand Cherokee | All Trims | 8 Cyl 4.7L |
