Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 77370 |

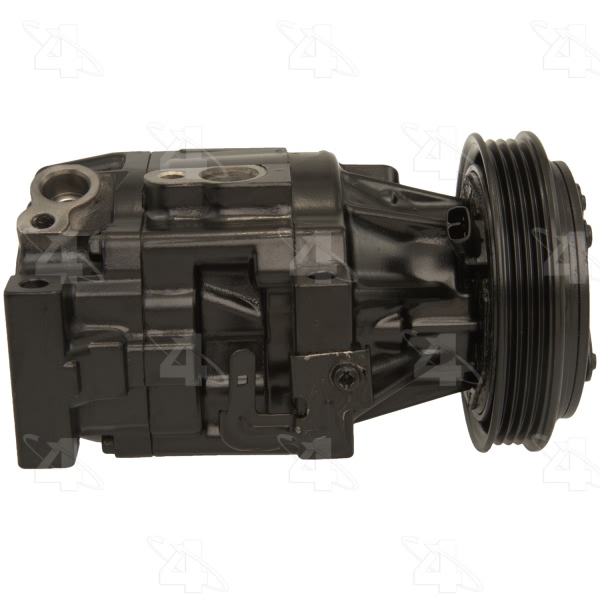

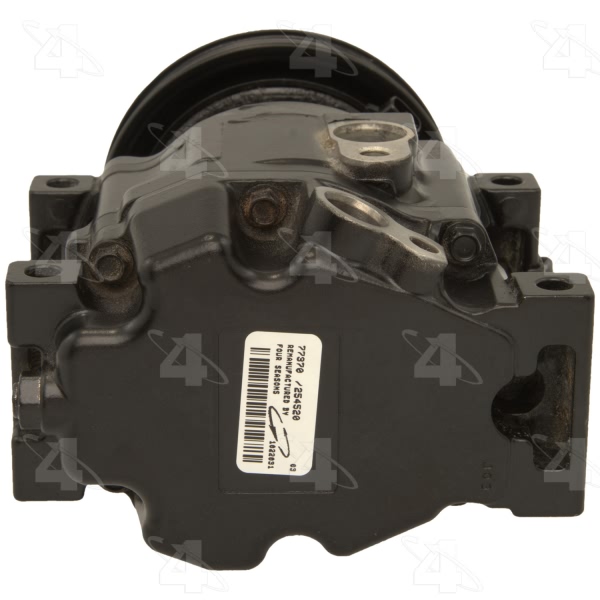

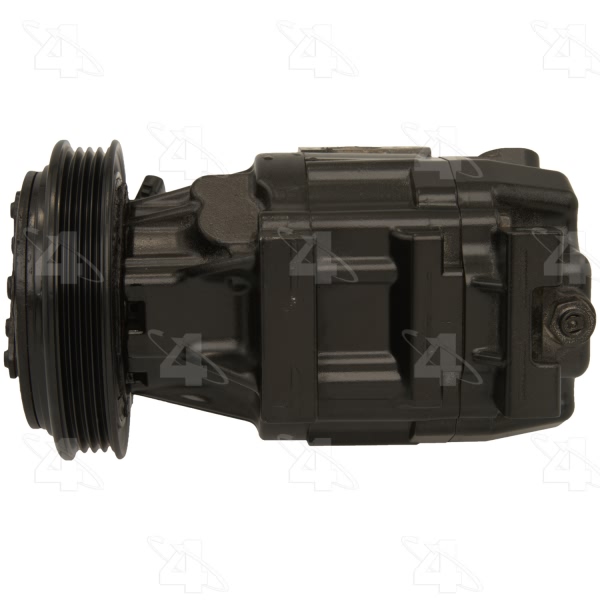

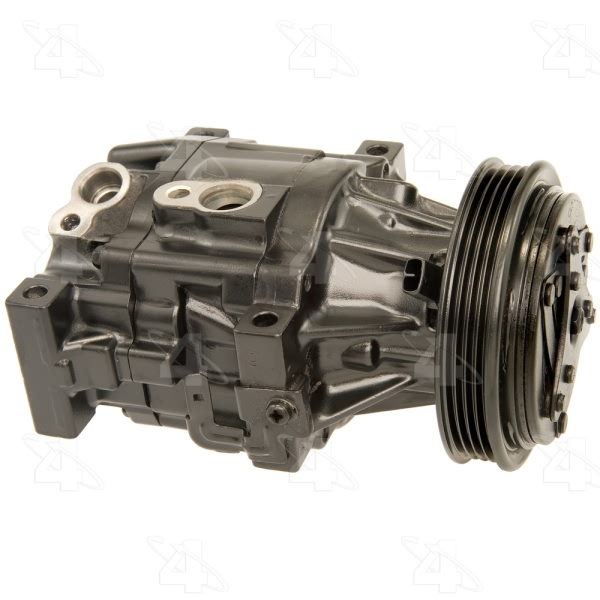

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.296875 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | SCS06C |

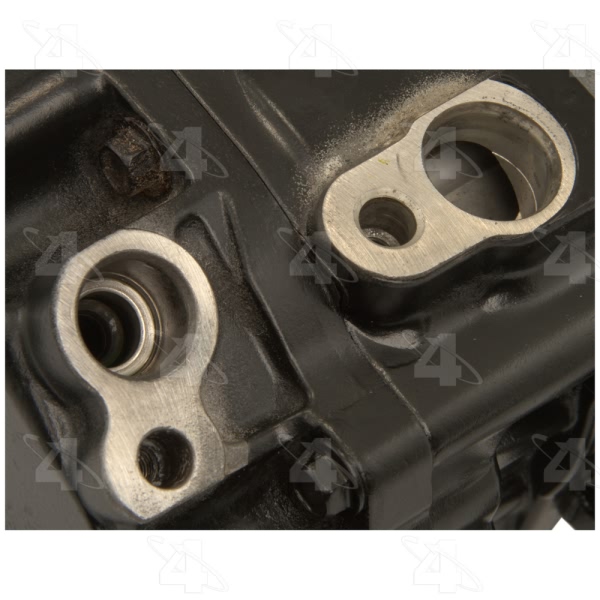

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 2.000 |
Mount Distance MM | 50.800 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |

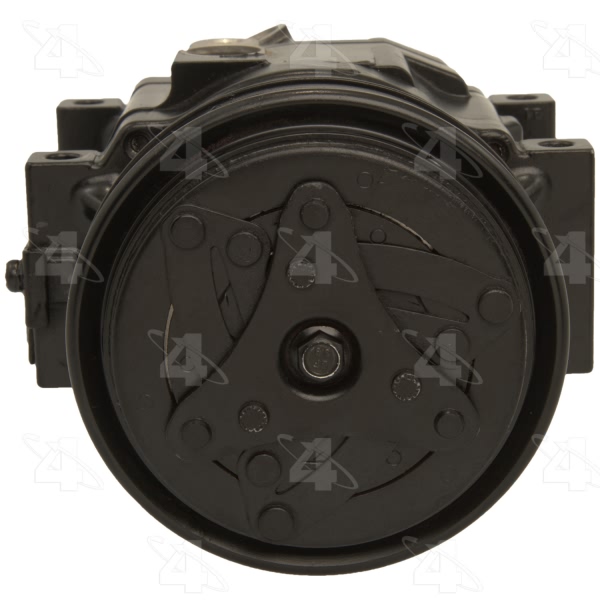

Pulley Belt Type | Serpentine |
Pulley Diameter MM | 109.220 |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 4.296875 |
Pulley Outside Diameter | 4.296875 |
Pulley Ridge Diameter | 4.296875 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |

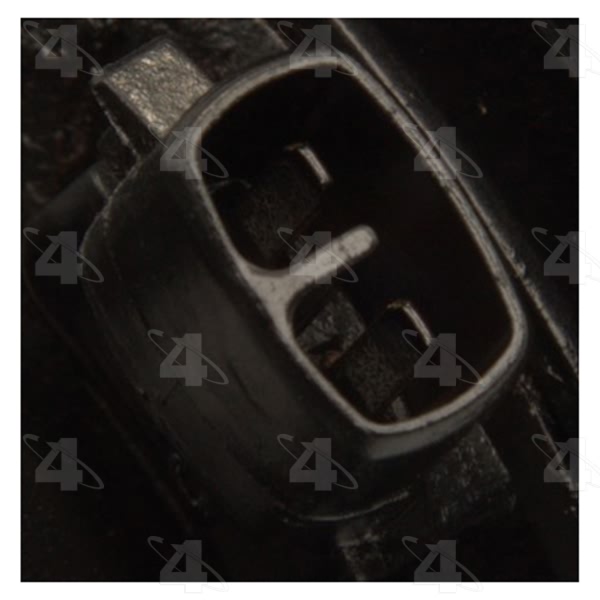

Terminal Type | Pin |
UPC | 096361773707 |
Year Make Model | Trim | Engine |
---|---|---|
2000-2005 Toyota Echo | All Trims | All Engines |
