Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 77342 |

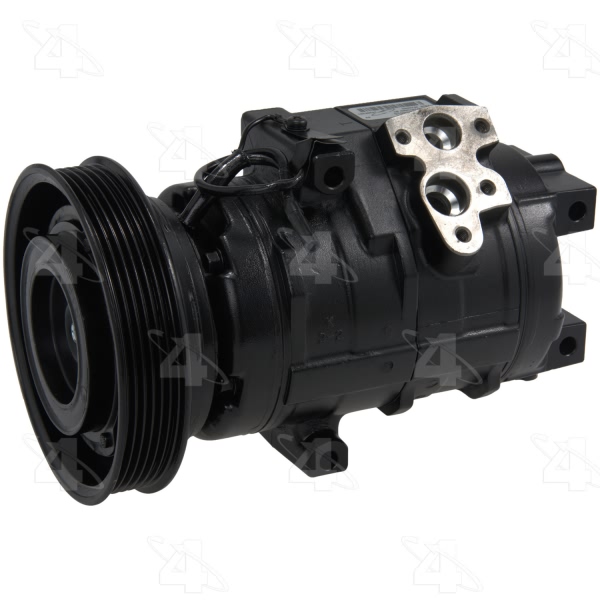

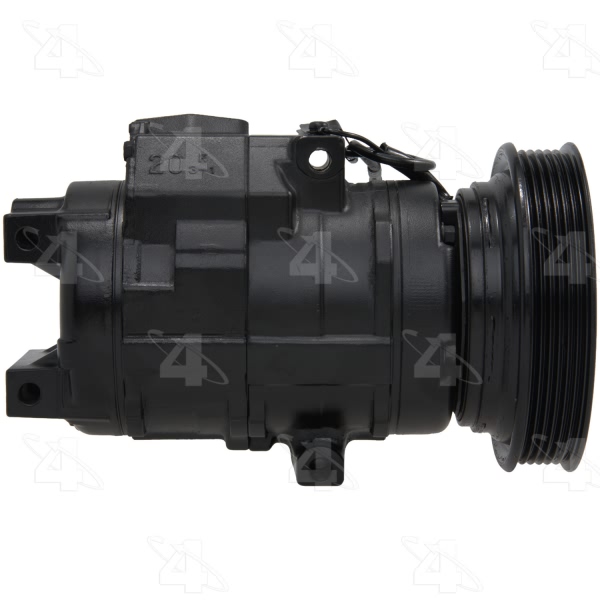

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |

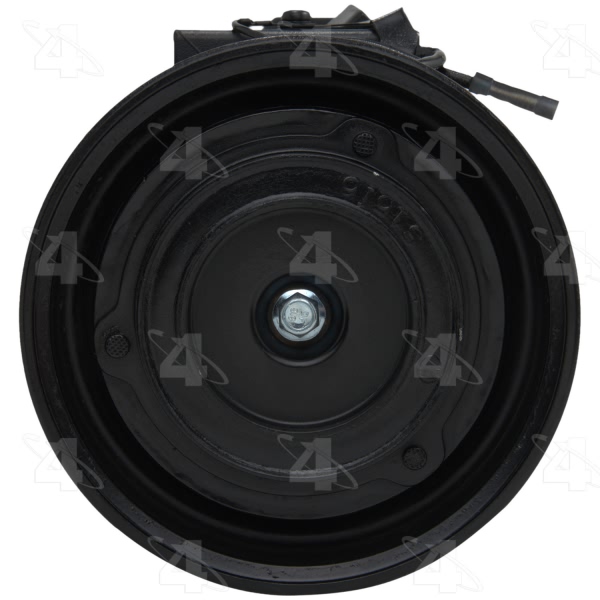

Clutch Maximum Diameter | 5.250 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10S20C |

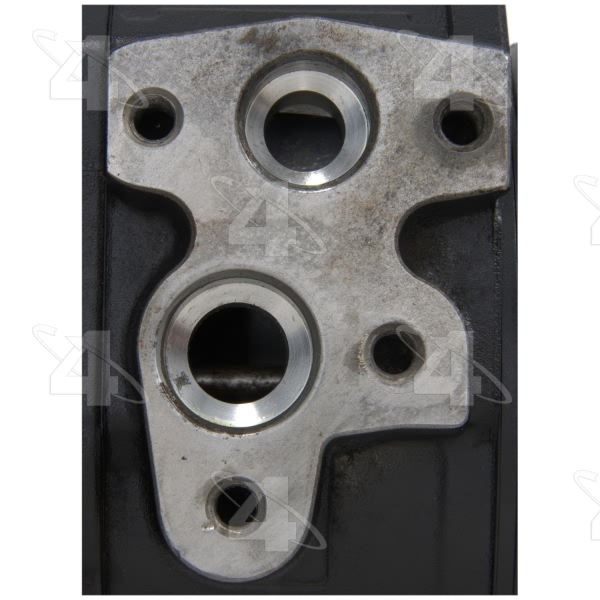

Discharge Port Type | Pad Mount |
Distance From Clutch To Mounting Flange | 2.90625 |
Mount Distance MM | 73.660 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24068] / Gasket |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24069] / Gasket |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold; DeSlugger [36140] Recommended to Eliminate Compressor Damage on Vehicles with Low Mount Compressor |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 133.350 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.250 |
Pulley Outside Diameter | 5.250 |
Pulley Ridge Diameter | 5.250 |
Refrigerant Type | R134a |
Suction Port Type | Pad Mount |
Terminal Type | Pin |
UPC | 096361773424 |
Year Make Model | Trim | Engine |
---|---|---|
2001-2002 Acura MDX | All Trims | All Engines |
1999-2004 Honda Odyssey | All Trims | All Engines |
2003-2004 Honda Pilot | All Trims | All Engines |
