Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 77324 |

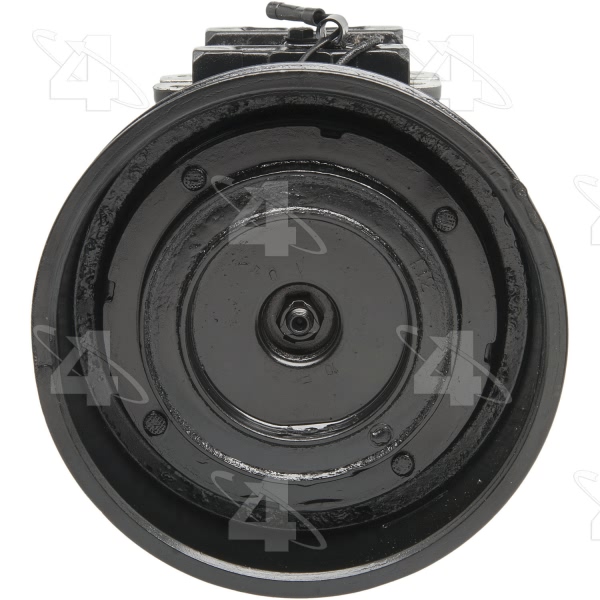

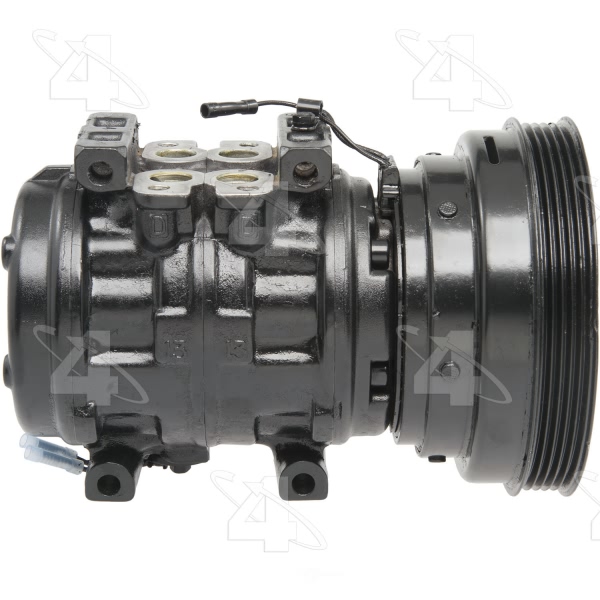

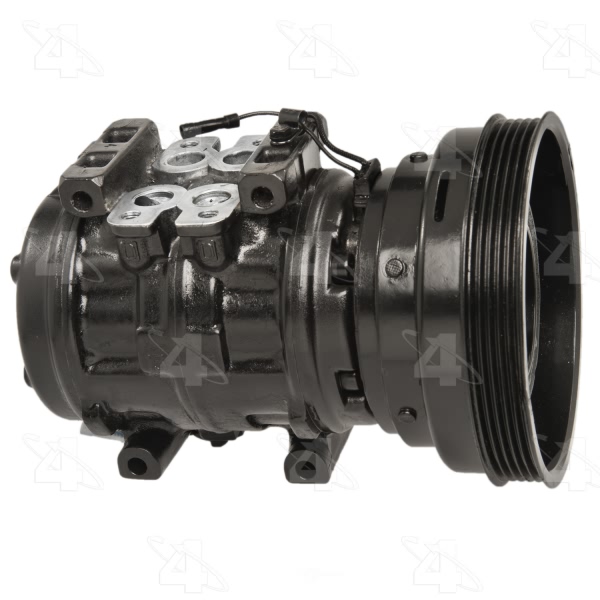

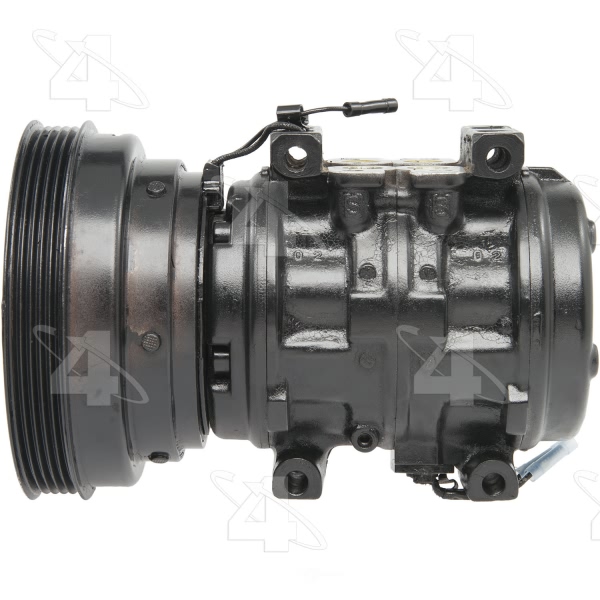

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.875 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10P13C |
Discharge Port Type | Pad Mount |
Distance From Clutch To Mounting Flange | 2.09375 |
Mount Distance MM | 53.340 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24613] / Green O-Ring |
O-Ring A Quantity | 4 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 149.098 |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 5.875 |
Pulley Outside Diameter | 5.875 |
Pulley Ridge Diameter | 5.875 |
Refrigerant Type | R134a |
Suction Port Type | Pad Mount |
Switch Included | Speed Sensor |
Terminal Type | Pin |
UPC | 096361773240 |
Year Make Model | Trim | Engine |
---|---|---|
1996-1997 Toyota RAV4 | All Trims | All Engines |
