Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 77308 |

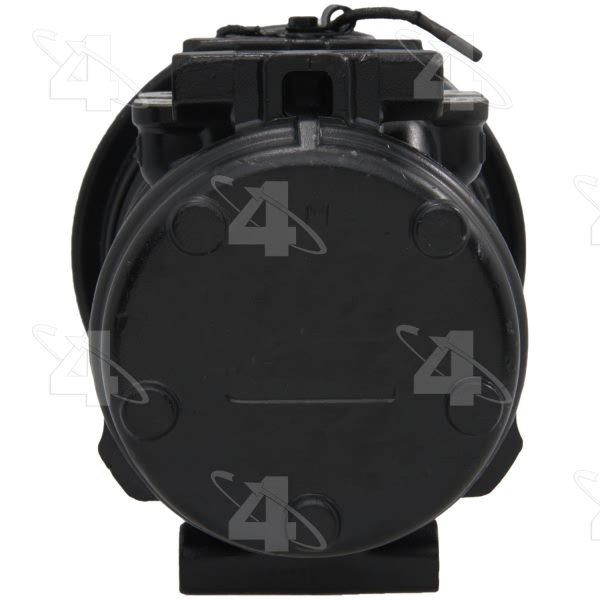

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 6.000 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10P15C |

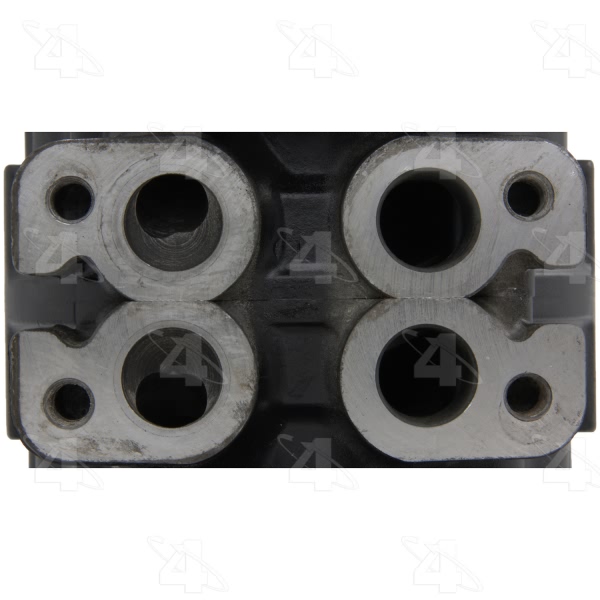

Discharge Port Type | Pad Mount |
Distance From Clutch To Mounting Flange | 3.046875 |
Mount Distance MM | 77.470 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24613] / Green O-Ring |
O-Ring A Quantity | 4 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |

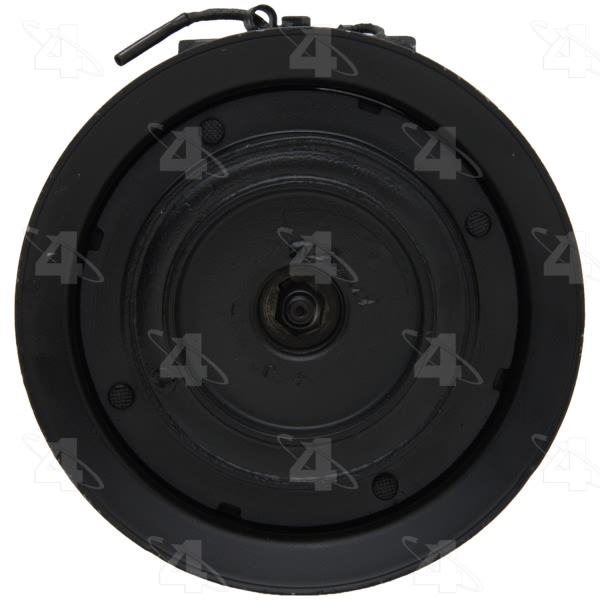

Pulley Belt Type | V-Belt |
Pulley Diameter MM | 152.400 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 6.000 |
Pulley Outside Diameter | 6.000 |
Pulley Ridge Diameter | 6.000 |
Refrigerant Type | R134a |
Suction Port Type | Pad Mount |
Terminal Type | Butt |
UPC | 096361773080 |
Year Make Model | Trim | Engine |
---|---|---|
1985-1991 Dodge Colt | All Trims | 4 Cyl 2.0L |
1989 Hyundai Sonata | All Trims | All Engines |
1990-1991 Hyundai Sonata | All Trims | 4 Cyl 2.4L |
1990-1991 Hyundai Sonata | All Trims | 6 Cyl 3.0L |
1985-1987 Mitsubishi Galant | All Trims | All Engines |
1987-1990 Mitsubishi Van | All Trims | All Engines |
1985-1991 Plymouth Colt | All Trims | 4 Cyl 2.0L |
