Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 77305 |

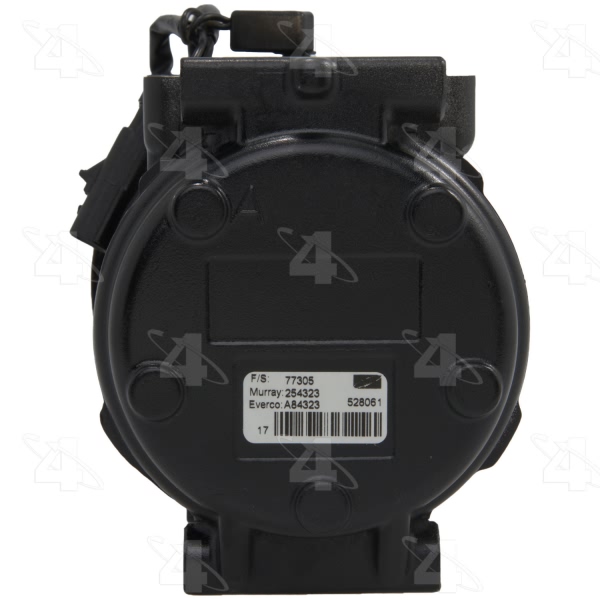

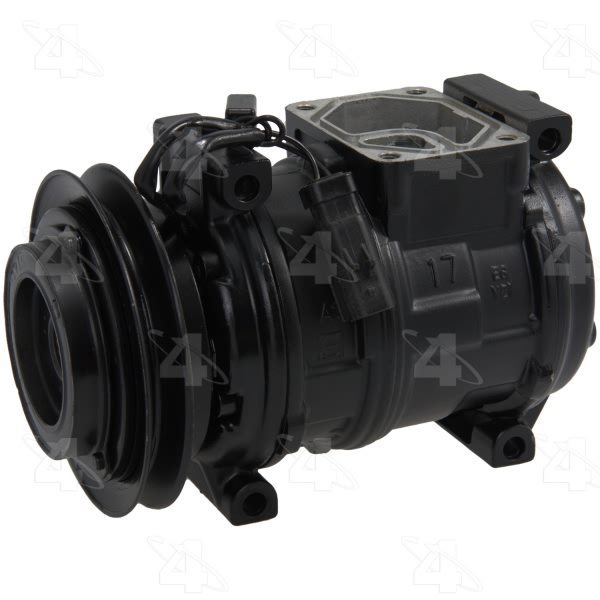

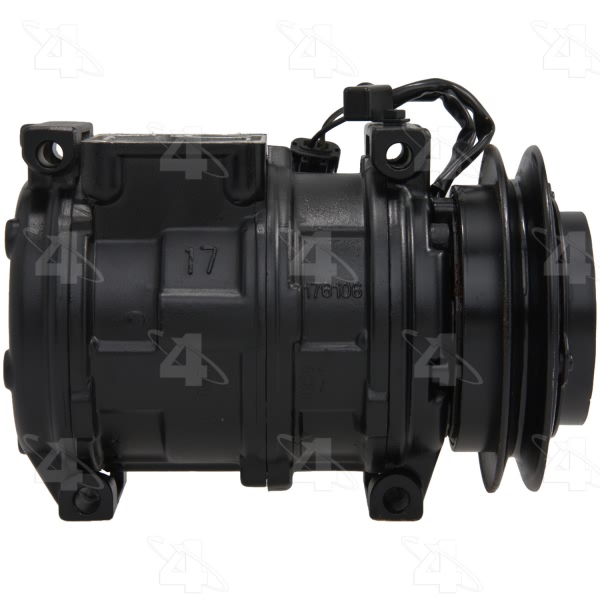

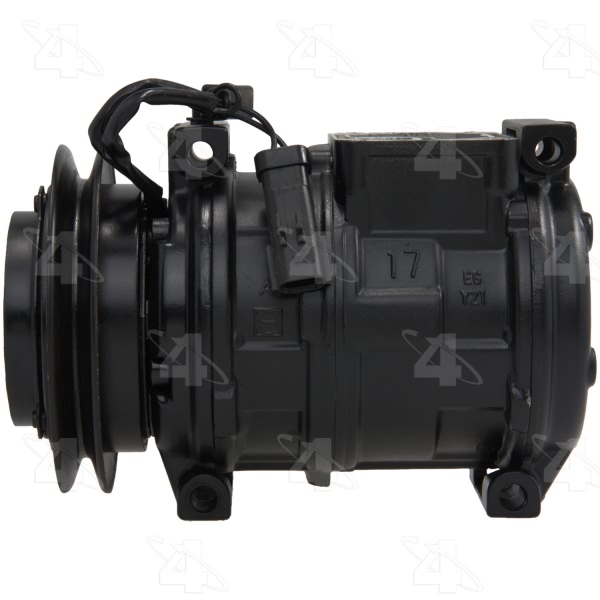

Part Description | Remanufactured A C Compressor With Clutch |
Belt Width IN | 0.500 |
Belt Width MM | 12.700 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.250 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10PA17C |

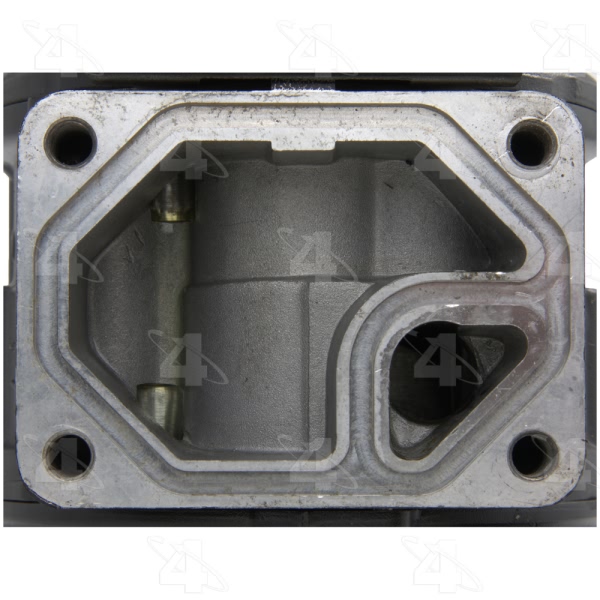

Discharge Port Type | Pad Mount |
Distance From Clutch To Mounting Flange | 1.40625 |
Mount Distance MM | 35.560 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24156] / Compressor Manifold Port Gasket |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |

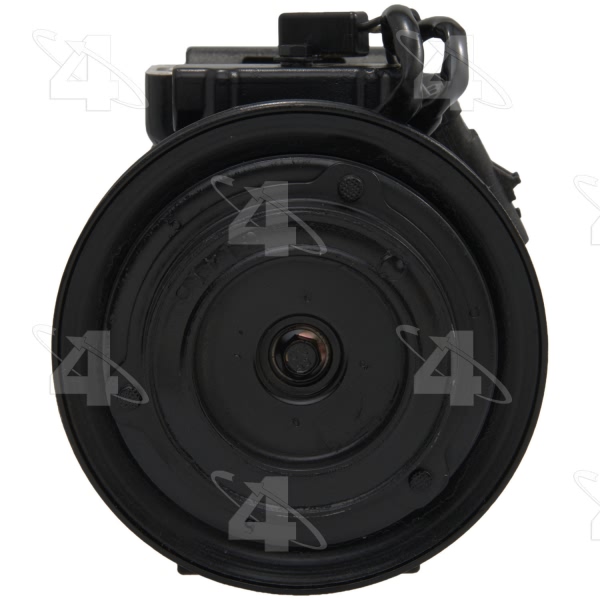

Pulley Belt Type | V-Belt |
Pulley Diameter MM | 133.350 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 5.250 |
Pulley Outside Diameter | 5.250 |
Pulley Ridge Diameter | 5.250 |
Refrigerant Type | R134a |
Suction Port Type | Pad Mount |

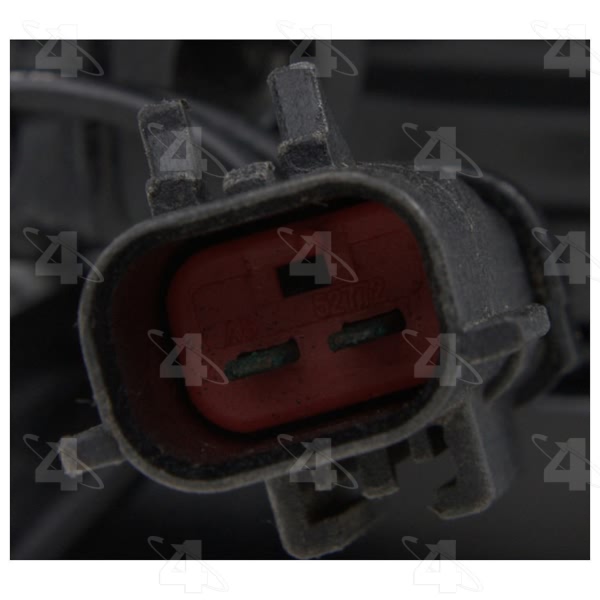

Terminal Type | pin |
UPC | 096361773059 |
w/ Diode | Yes |
Year Make Model | Trim | Engine |
---|---|---|
2000 Chrysler Grand Voyager | All Trims | 6 Cyl 3.0L |
2000 Chrysler Voyager | All Trims | 6 Cyl 3.0L |
1996-2000 Dodge Caravan | All Trims | 6 Cyl 3.0L |
1996-2000 Dodge Grand Caravan | All Trims | 6 Cyl 3.0L |
1996-2000 Plymouth Grand Voyager | All Trims | 6 Cyl 3.0L |
1996-2000 Plymouth Voyager | All Trims | 6 Cyl 3.0L |
