Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 77303 |

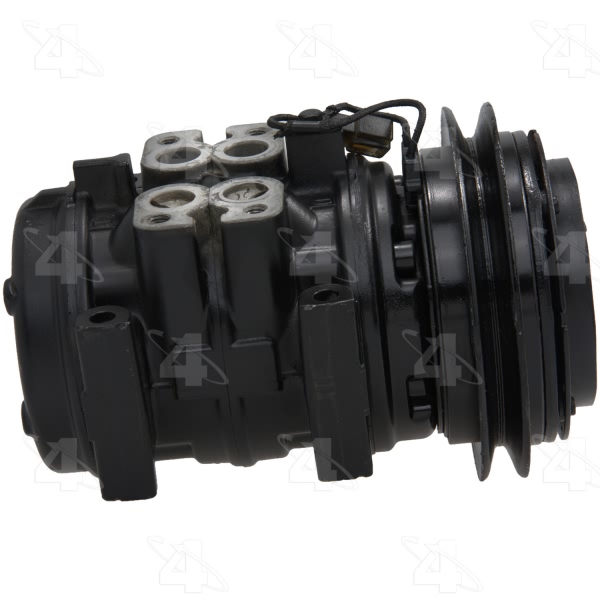

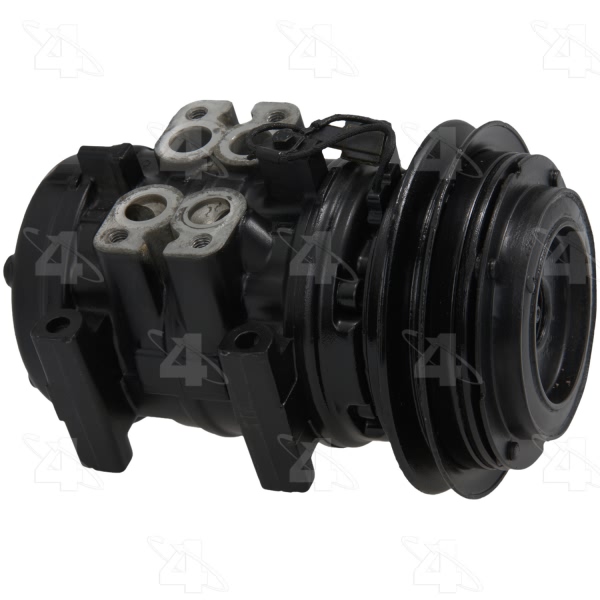

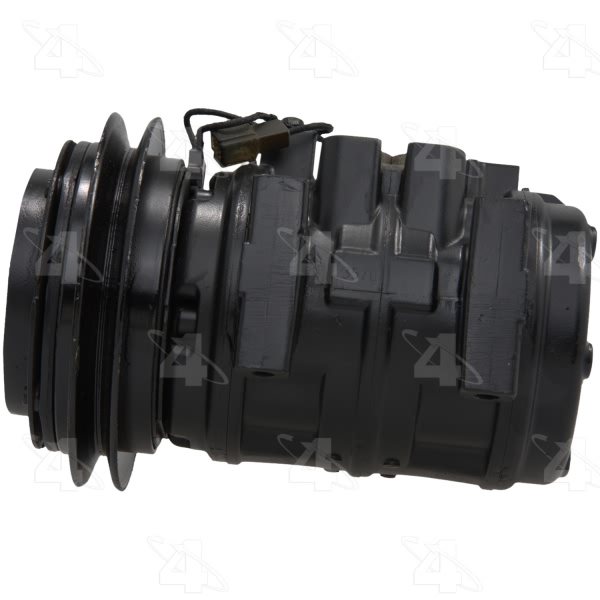

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.625 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10P13F |

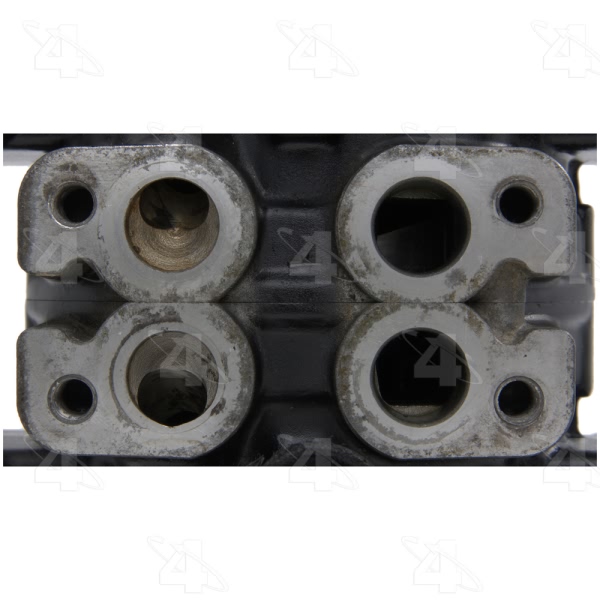

Discharge Port Type | Pad Mount |
Distance From Clutch To Mounting Flange | 1.859375 |
Mount Distance MM | 46.990 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24613] / Green O-Ring |
O-Ring A Quantity | 4 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 142.748 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 5.625 |
Pulley Outside Diameter | 5.625 |
Pulley Ridge Diameter | 5.625 |
Refrigerant Type | R134a |
Suction Port Type | Pad Mount |

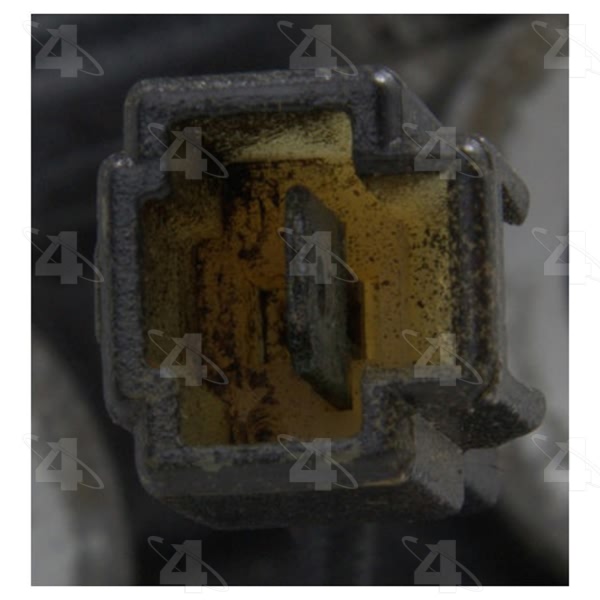

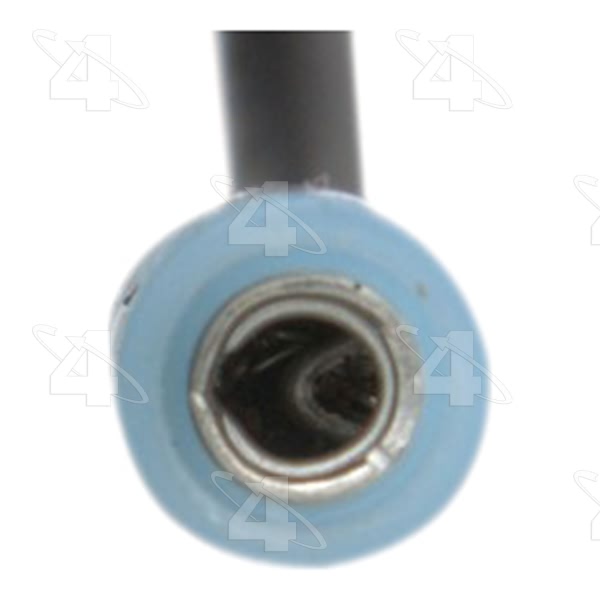

Terminal Type | Butt |
UPC | 096361773035 |
Year Make Model | Trim | Engine |
---|---|---|
1986-1987 Mazda 323 | All Trims | All Engines |
