Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 67676 |

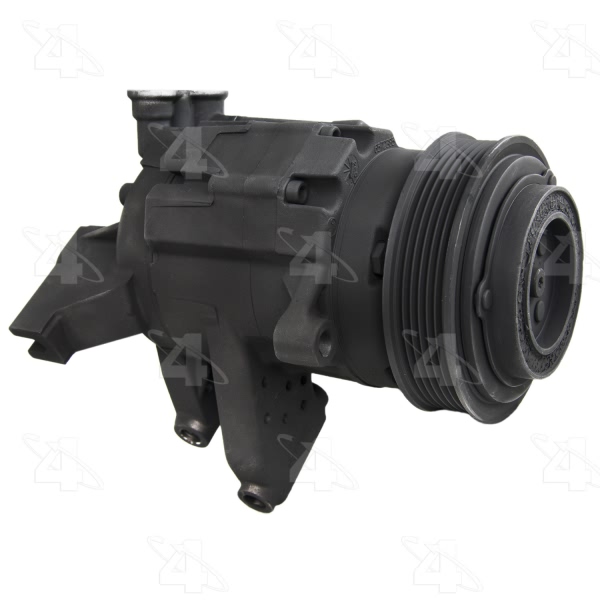

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.703125 |
Coil Clock Position | 2 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | SP17 |
Discharge Port Type | O-Ring / Gasket |
Distance From Clutch To Mounting Flange | 1.0625 |
Mount Distance MM | 26.924 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24402] / Slimline Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 119.634 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.703125 |
Pulley Outside Diameter | 4.703125 |
Pulley Ridge Diameter | 4.703125 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring / Gasket |
Terminal Type | Pin |
UPC | 096361676763 |
Year Make Model | Trim | Engine |
---|---|---|
2010-2011 Chevrolet Equinox | All Trims | 6 Cyl 3.0L |
2010-2011 GMC Terrain | All Trims | 6 Cyl 3.0L |
