Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 67655 |

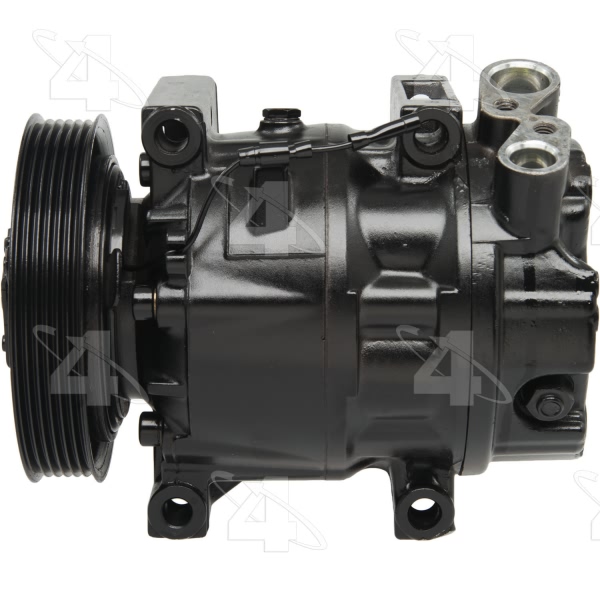

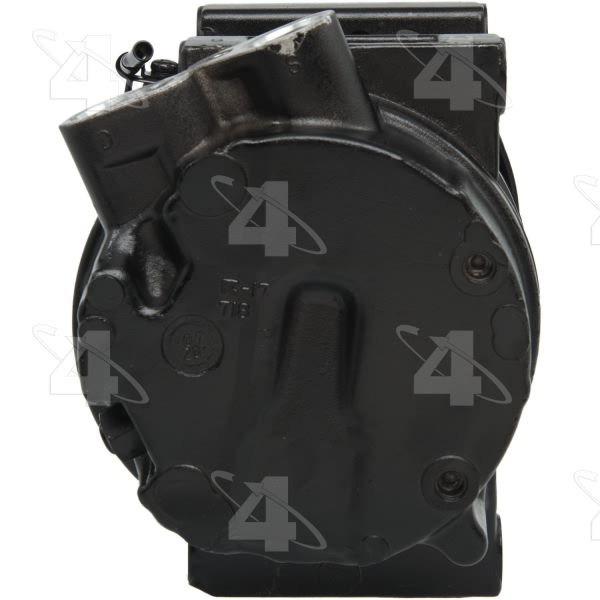

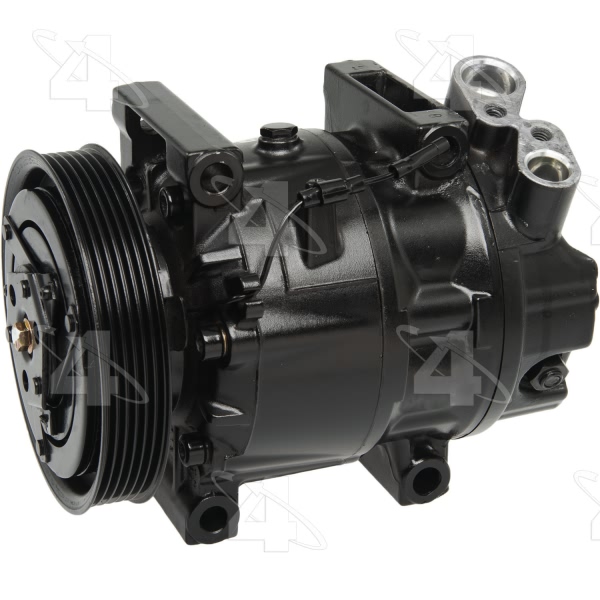

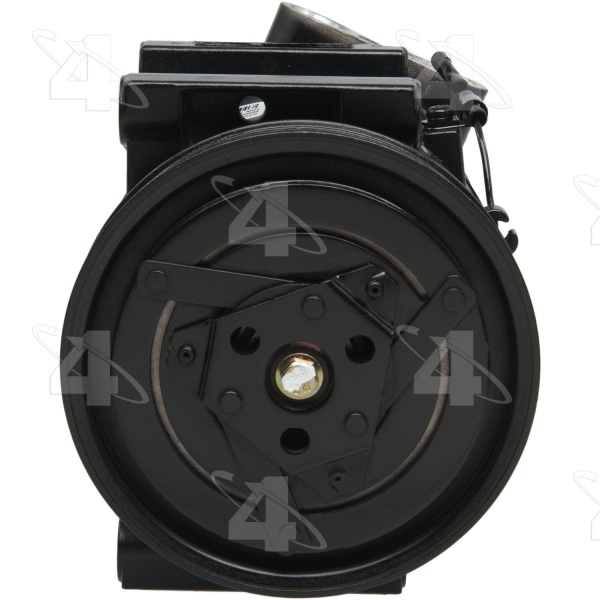

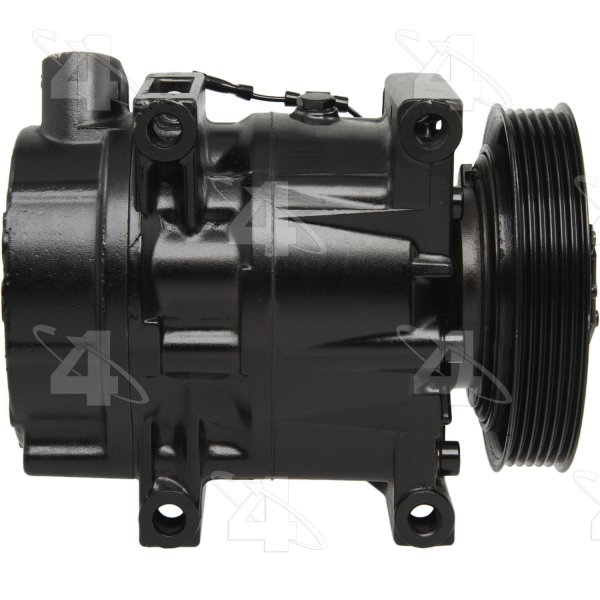

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.250 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | CWV618 |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 0.859375 |
Mount Distance MM | 21.590 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24602] / Green Round O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24659] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 133.350 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.250 |
Pulley Outside Diameter | 5.250 |
Pulley Ridge Diameter | 5.250 |
Refrigerant Type | R134a |
Suc Prt Typ Note | Smooth Deep |
Suction Port Type | O-Ring |
Switch Service Port | w/o Switch Port |
Terminal Type | Pin |
UPC | 096361676558 |
Year Make Model | Trim | Engine |
---|---|---|
1999-2001 Infiniti I30 | All Trims | All Engines |
1998-2001 Nissan Maxima | All Trims | All Engines |
