Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 67648 |

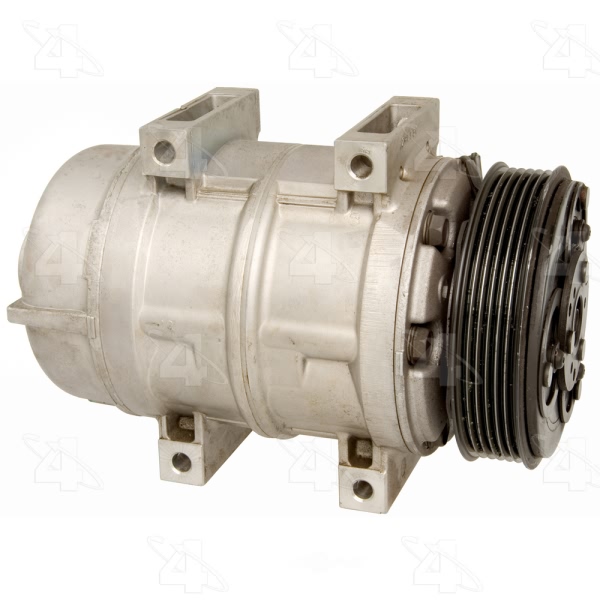

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.625 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | DKS17CH |

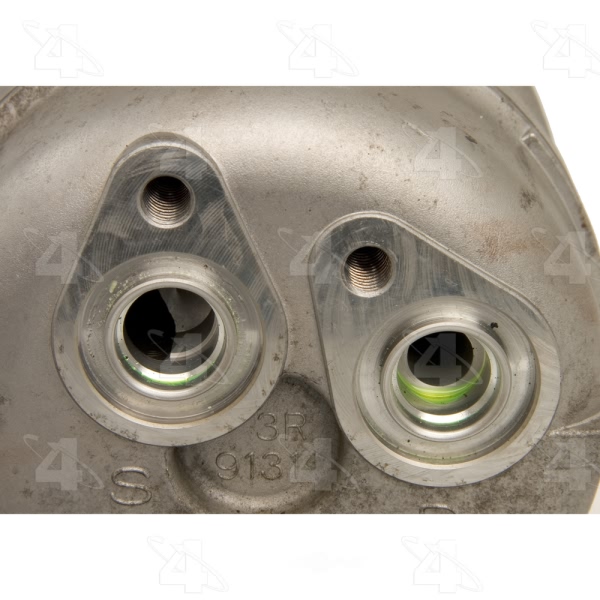

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.296875 |
Mount Distance MM | 33.020 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24615] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 117.475 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.625 |
Pulley Outside Diameter | 4.625 |
Pulley Ridge Diameter | 4.625 |
Refrigerant Type | R134a |
Suc Prt Typ Note | Tear Drop |
Suction Port Type | O-Ring |
Switch Included | Heat Switch |
Switch Type | Heat Switch |
Terminal Type | Bullet |
UPC | 096361676480 |
Year Make Model | Trim | Engine |
---|---|---|
2001 Volvo S60 | All Trims | All Engines |
1999-2001 Volvo S80 | All Trims | All Engines |
2001-2002 Volvo V70 | All Trims | All Engines |
