Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 67643 |

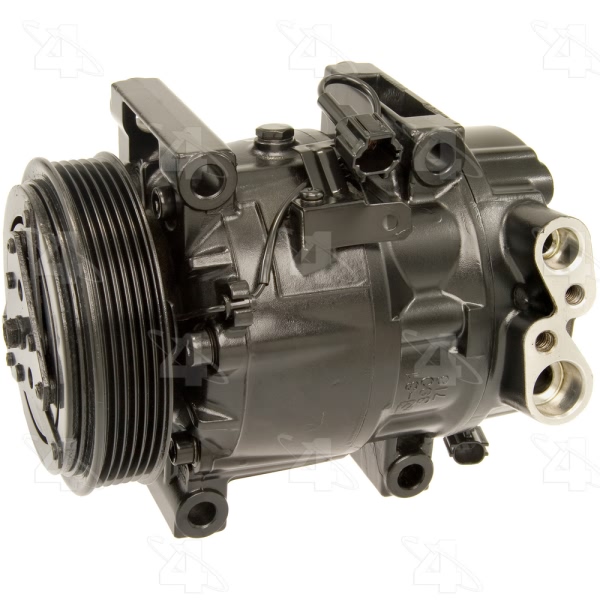

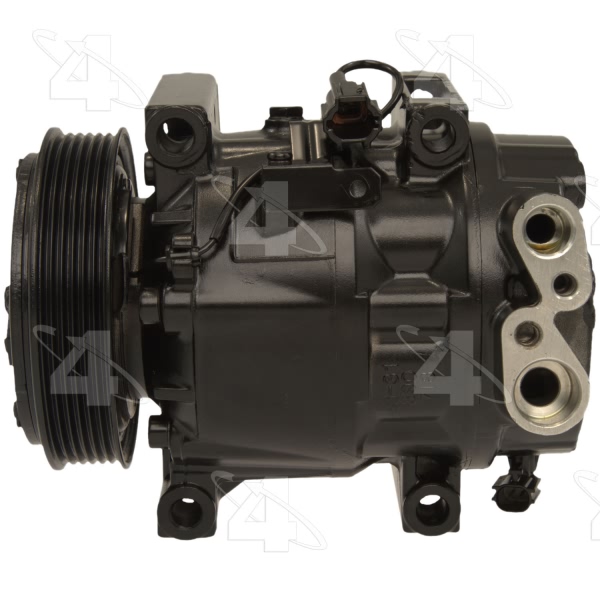

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.875 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | CWE618 |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 0.5625 |

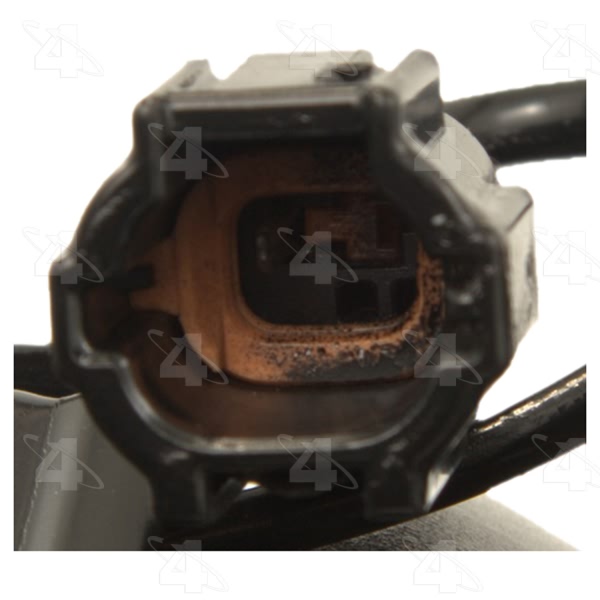

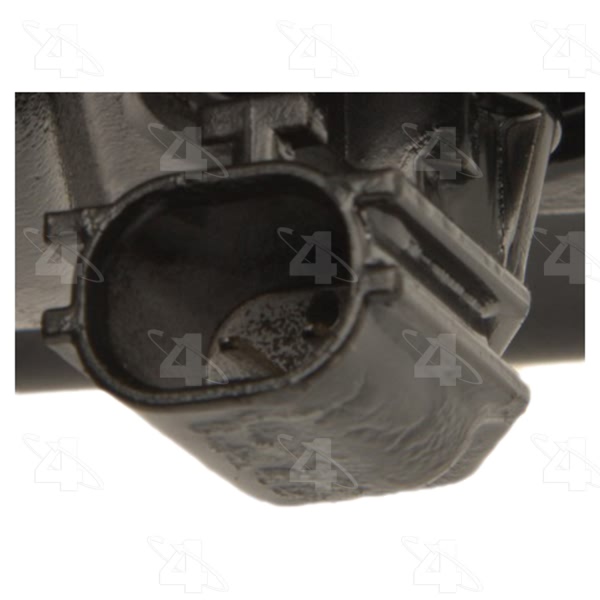

ECV Harness Connector | Compressor SE25F, Vehicle SE22M |
Mount Distance MM | 14.224 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24602] / Green Round O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24659] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 123.825 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.875 |
Pulley Outside Diameter | 4.875 |
Pulley Ridge Diameter | 4.875 |
Refrigerant Type | R134a |
Suc Prt Typ Note | Smooth Deep |
Suction Port Type | O-Ring |
Switch Service Port | w/o Switch Port |
Terminal Type | Pin |
UPC | 096361676435 |
Year Make Model | Trim | Engine |
---|---|---|
2003-2008 Infiniti FX45 | All Trims | All Engines |
2003-2004 Infiniti M45 | All Trims | All Engines |
2003-2006 Infiniti Q45 | All Trims | All Engines |
