Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 67633 |

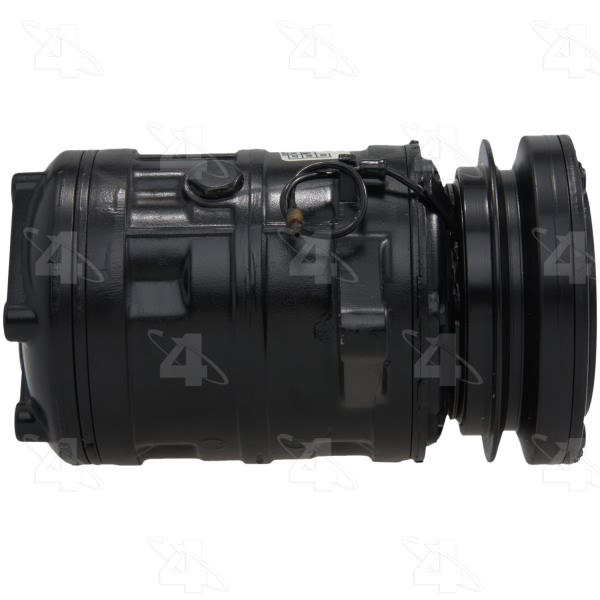

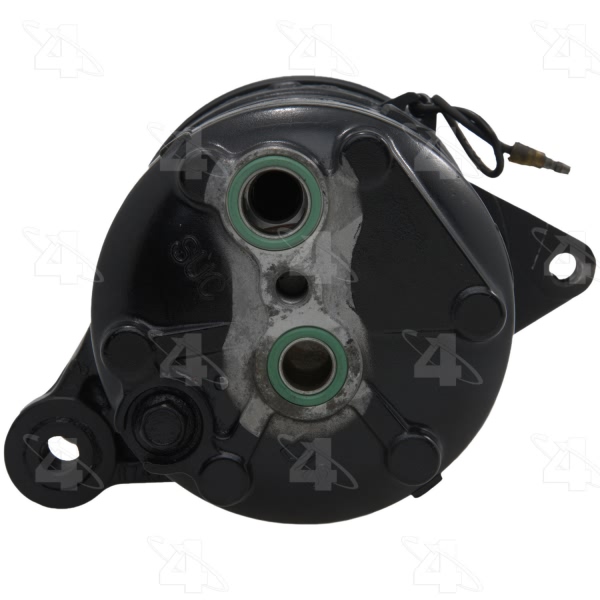

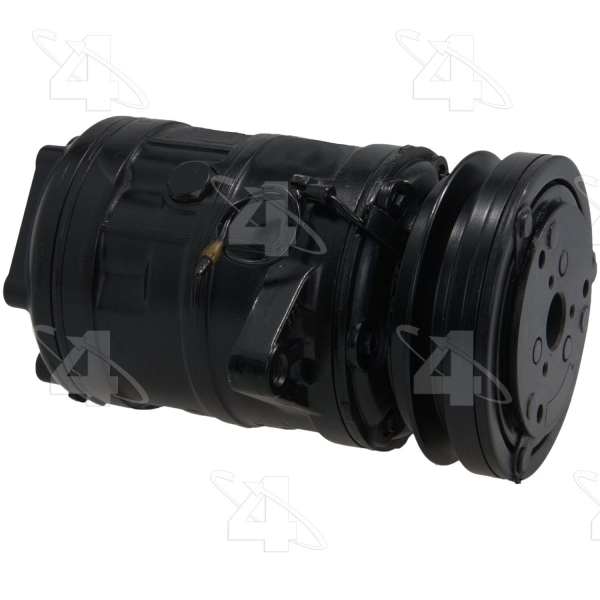

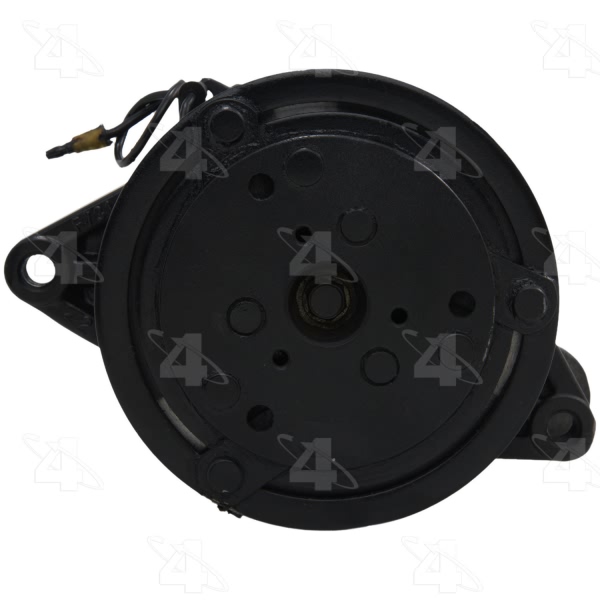

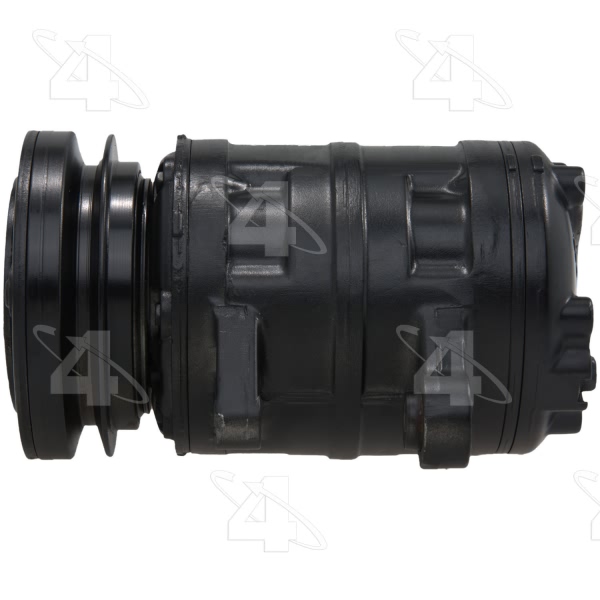

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.750 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | DKS13G |

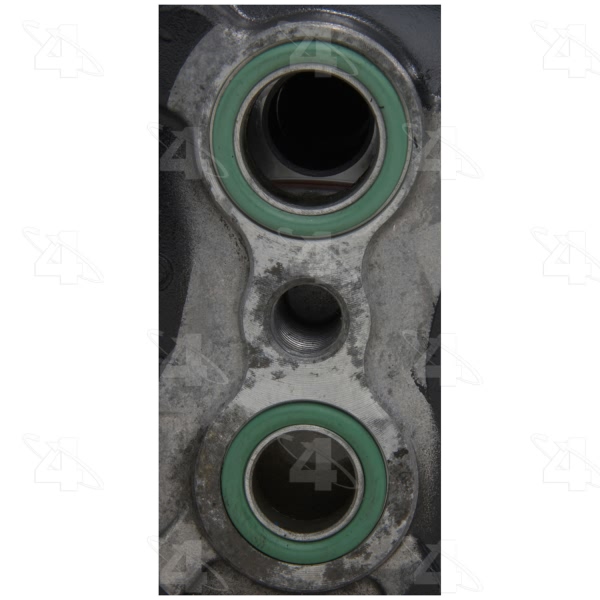

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.859375 |
Mount Distance MM | 46.990 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24680] / O-Ring Assortment |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24678] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 120.650 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 4.750 |
Pulley Outside Diameter | 4.750 |
Pulley Ridge Diameter | 4.750 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |

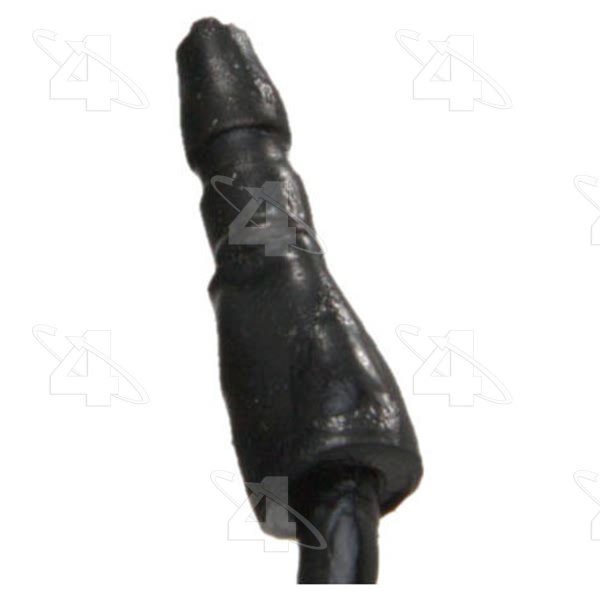

Terminal Type | Bullet |
UPC | 096361676336 |
Year Make Model | Trim | Engine |
---|---|---|
1985-1988 Chevrolet Spectrum | All Trims | All Engines |
1989 Geo Spectrum | All Trims | All Engines |
1985 Isuzu I-Mark | All Trims | 4 Cyl 1.8L |
1985-1986 Isuzu I-Mark | All Trims | 4 Cyl 1.5L |
1987-1989 Isuzu I-Mark | All Trims | All Engines |
1986-1987 Isuzu Pickup | All Trims | 4 Cyl 2.2L |
