Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 67594 |

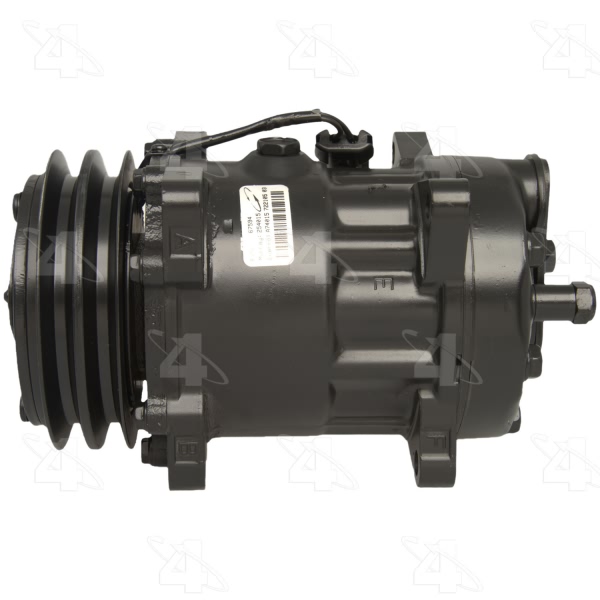

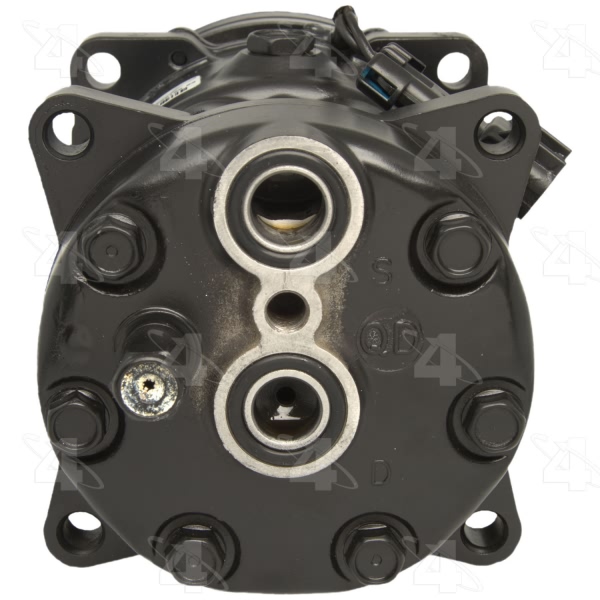

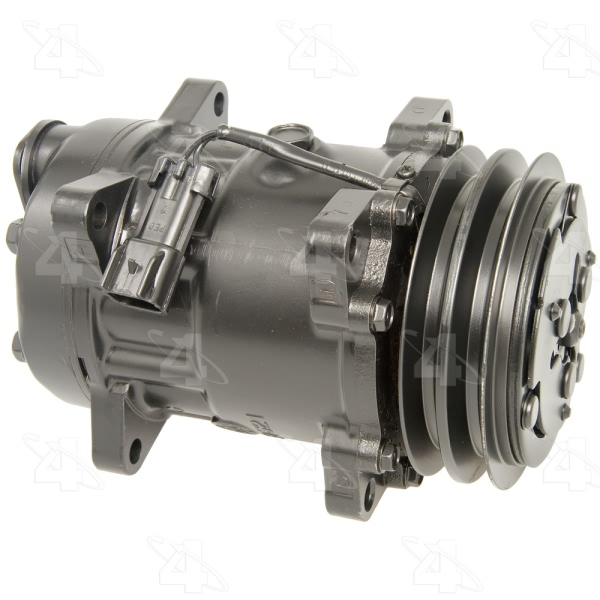

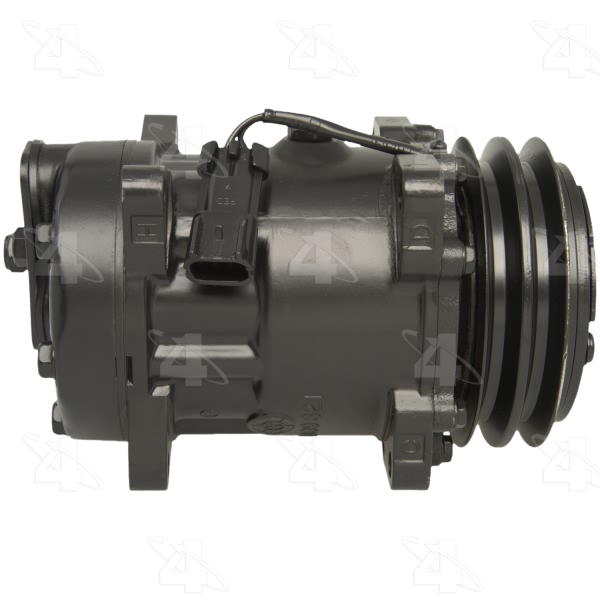

Part Description | Remanufactured A C Compressor With Clutch |
Belt Width IN | 0.500 |
Belt Width MM | 12.700 |

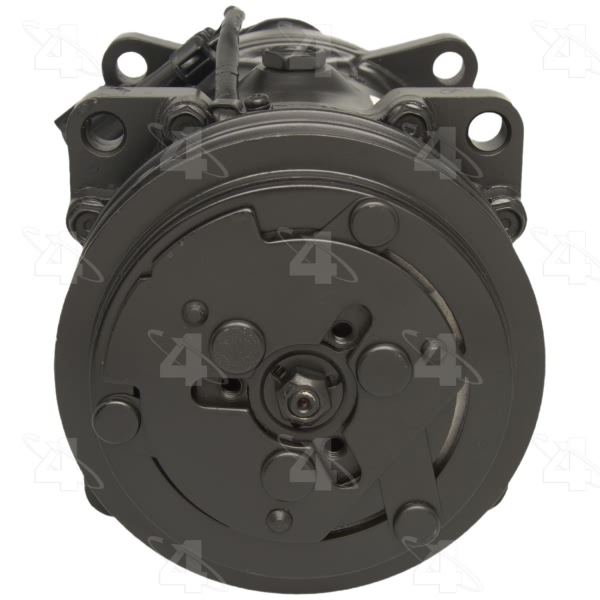

Clutch Included | Yes |
Clutch Maximum Diameter | 4.875 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 100 |
Compressor Head Type | VQD |
Compressor Type | SD7H15 |

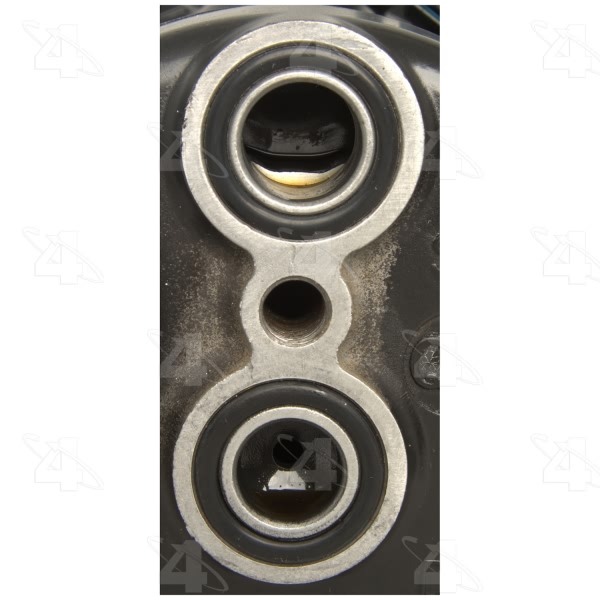

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 0.953125 |
Mount Distance B IN | 1.546875 |
Mount Distance B MM | 39.370 |
Mount Distance MM | 24.130 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24615] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 123.698 |
Pulley Groove Quantity | 2 |
Pulley Lip Diameter | 4.875 |
Pulley Outside Diameter | 4.875 |
Pulley Ridge Diameter | 4.875 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |

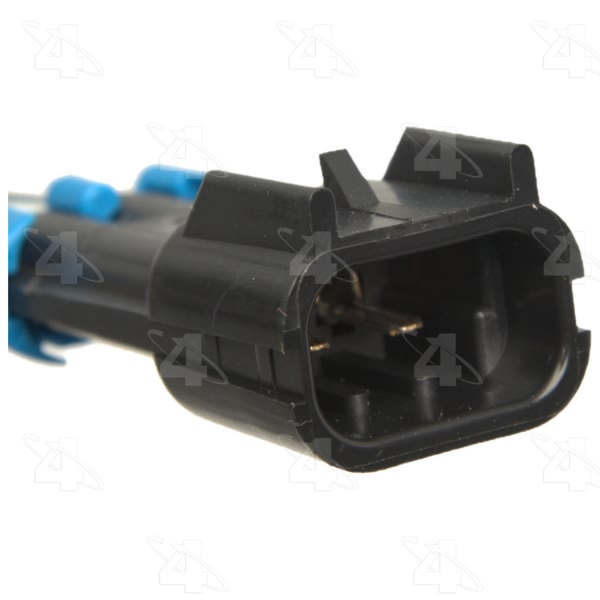

Terminal Type | Packard |
UPC | 096361675940 |
Year Make Model | Trim | Engine |
---|---|---|
1993-1995 Chevrolet P30 | All Trims | 8 Cyl 7.4L |
1993-1995 GMC P3500 | All Trims | 8 Cyl 7.4L |
