Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 67571 |

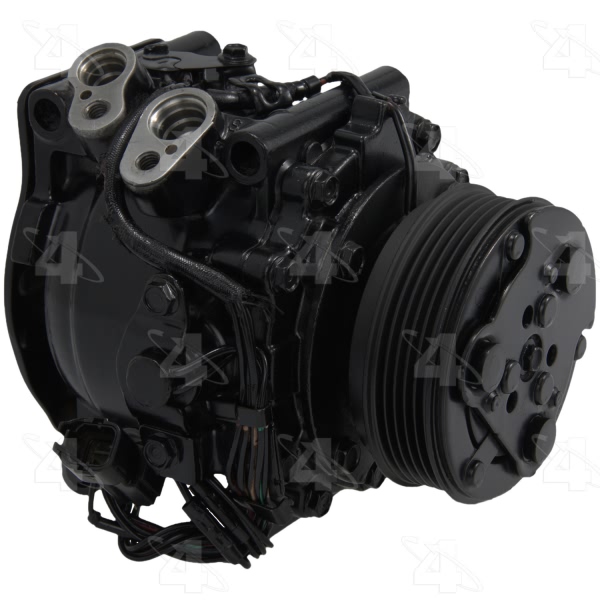

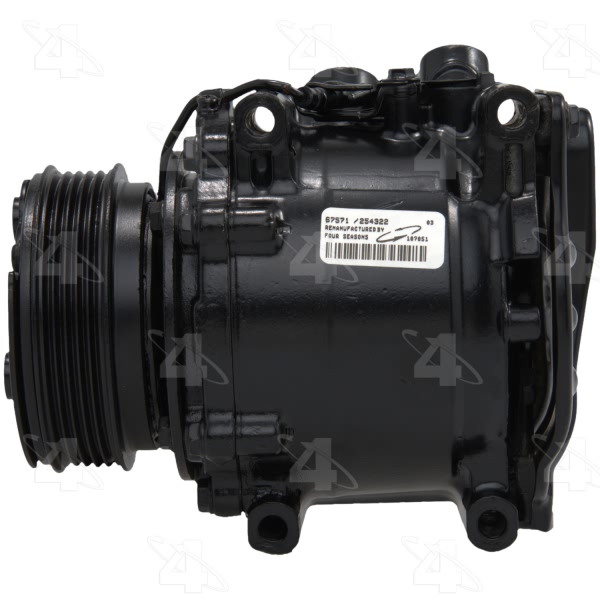

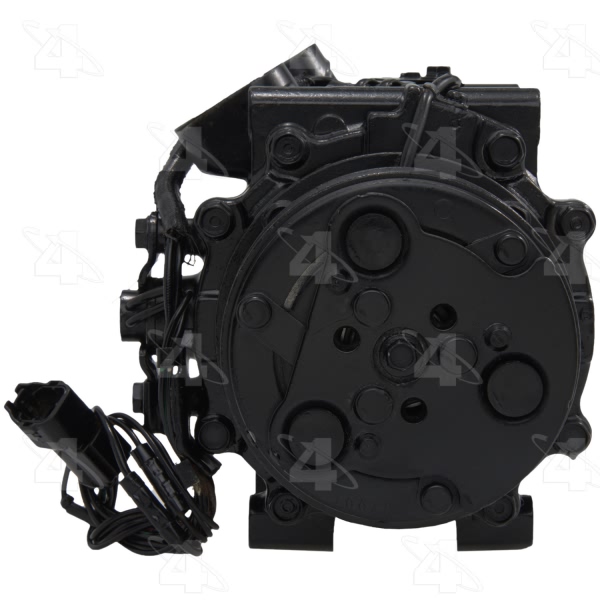

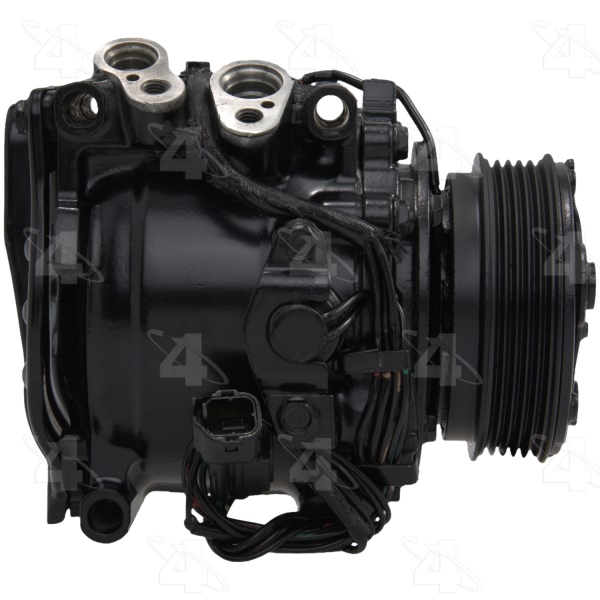

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 3.875 |
Coil Clock Position | 12 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | TR70 |

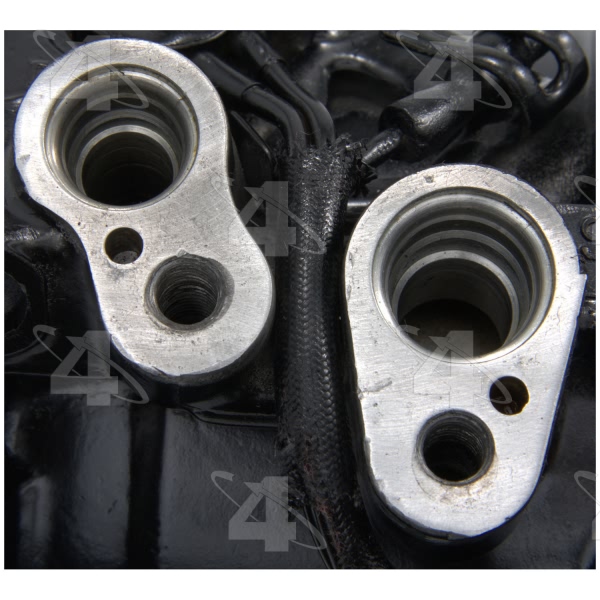

Discharge Port Type | Pad Mount |
Distance From Clutch To Mounting Flange | 1.796875 |
Mount Distance MM | 45.720 |
Mounting Hardware | Not Included |

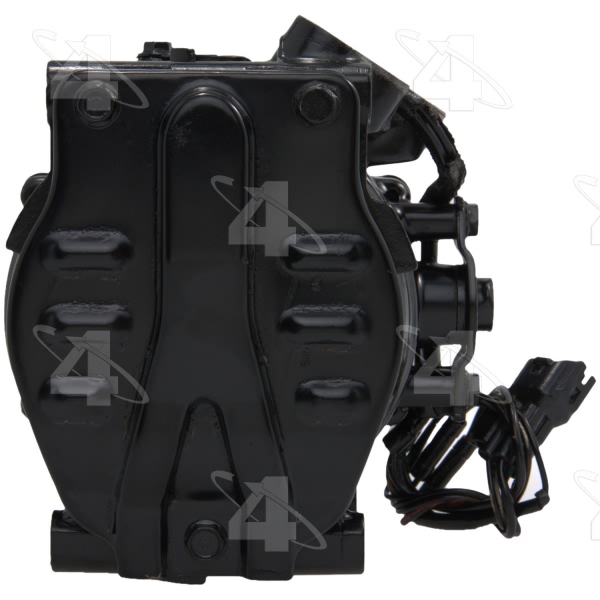

Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 98.298 |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 3.875 |
Pulley Outside Diameter | 3.875 |
Pulley Ridge Diameter | 3.875 |
Refrigerant Type | R134a |
Suction Port Type | Pad Mount |
Switch Included | Heat Sensor / Speed Sensor |

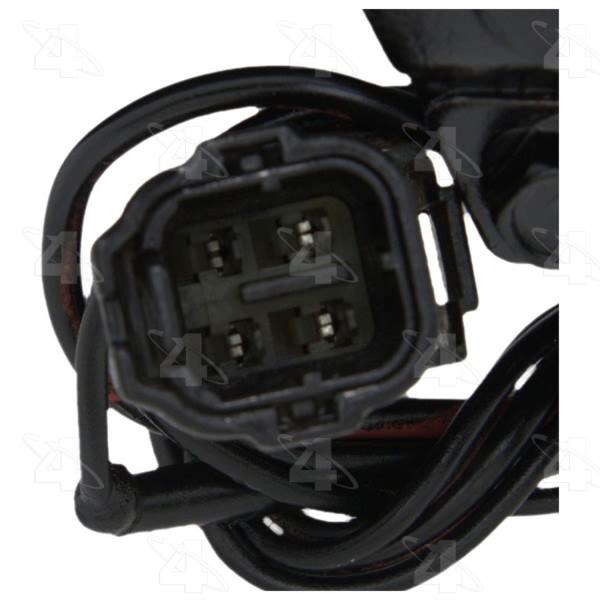

Terminal Type | Pin |
UPC | 096361675711 |
Year Make Model | Trim | Engine |
---|---|---|
1990 Honda Prelude | 2.0 S | 4 Cyl 2.0L |
1990 Honda Prelude | 2.0 Si | 4 Cyl 2.0L |
1990 Honda Prelude | SR | 4 Cyl 2.0L |
1990 Honda Prelude | Si | 4 Cyl 2.1L |
1990 Honda Prelude | Si 4WS | 4 Cyl 2.1L |
1990 Honda Prelude | Si ALB | 4 Cyl 2.1L |
1991 Honda Prelude | All Trims | All Engines |
