Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 67451 |

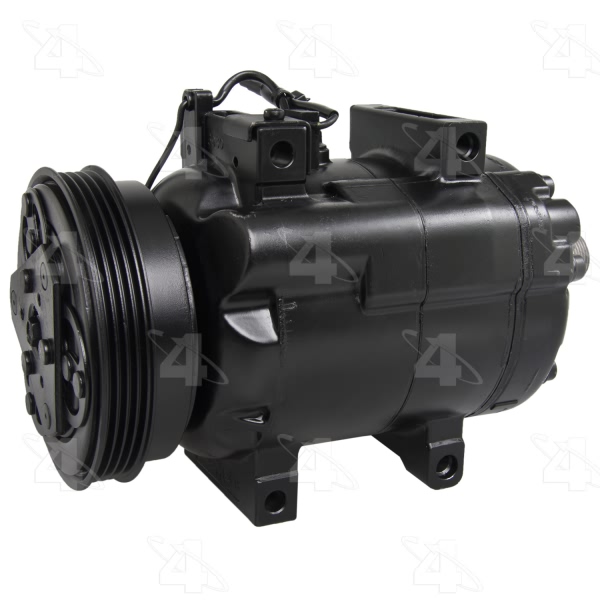

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.750 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Head Type | D213 |
Compressor Type | DCW17D |
Distance From Clutch To Mounting Flange | 1.953125 |
Mount Distance MM | 49.530 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24610] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May require use of OE connector |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 120.650 |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 4.750 |
Pulley Outside Diameter | 4.750 |
Pulley Ridge Diameter | 4.750 |
Refrigerant Type | R134a |

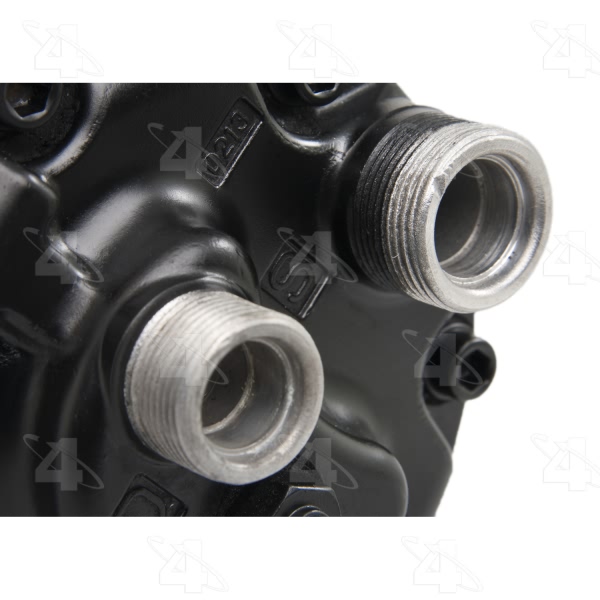

Suction Port Type | O-Ring |
Switch Service Port | w/o Switch Port |
Terminal Type | Spade |
UPC | 096361674516 |
Year Make Model | Trim | Engine |
---|---|---|
1997 Audi A4 | All Trims | 6 Cyl 2.8L |
1997-2001 Audi A4 | All Trims | 4 Cyl 1.8L |
1997 Audi A4 Quattro | All Trims | 6 Cyl 2.8L |
1997-2001 Audi A4 Quattro | All Trims | 4 Cyl 1.8L |
1998-2005 Audi A6 | All Trims | All Engines |
1998-2001 Audi A6 Quattro | All Trims | All Engines |
2002-2005 Audi A6 Quattro | All Trims | 6 Cyl 3.0L |
2005 Audi A6 Quattro | All Trims | 8 Cyl 4.2L |
1998-2000 Volkswagen Passat | All Trims | 4 Cyl 1.8L |
