Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 67401 |

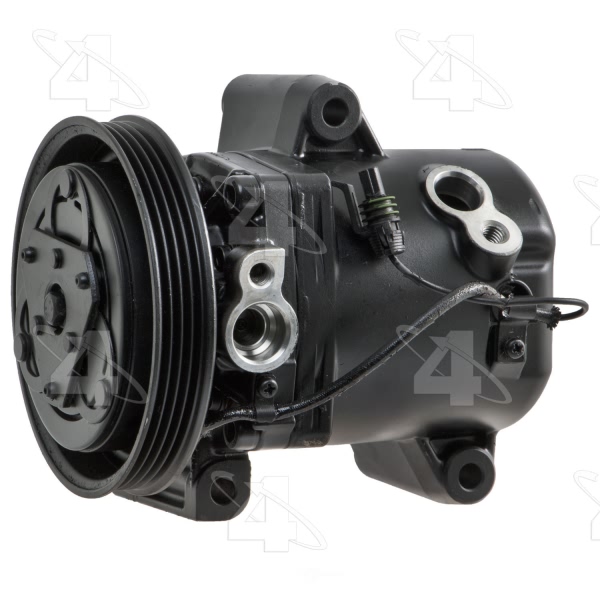

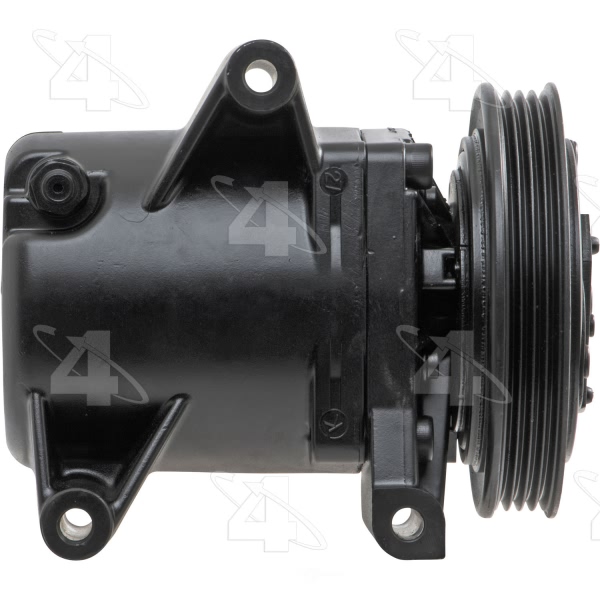

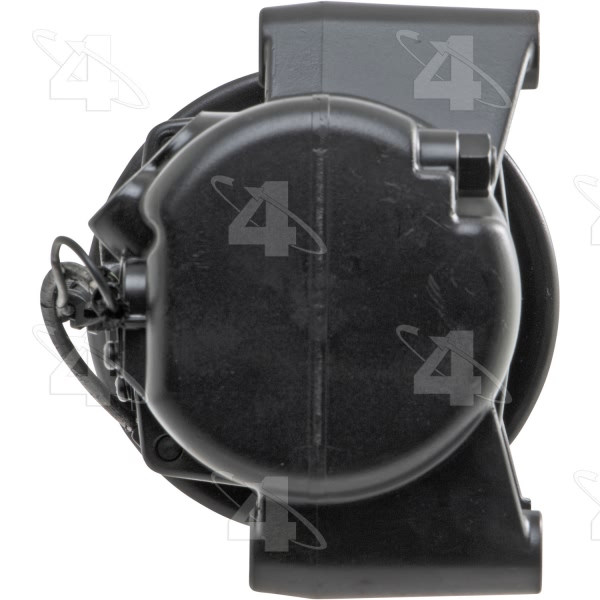

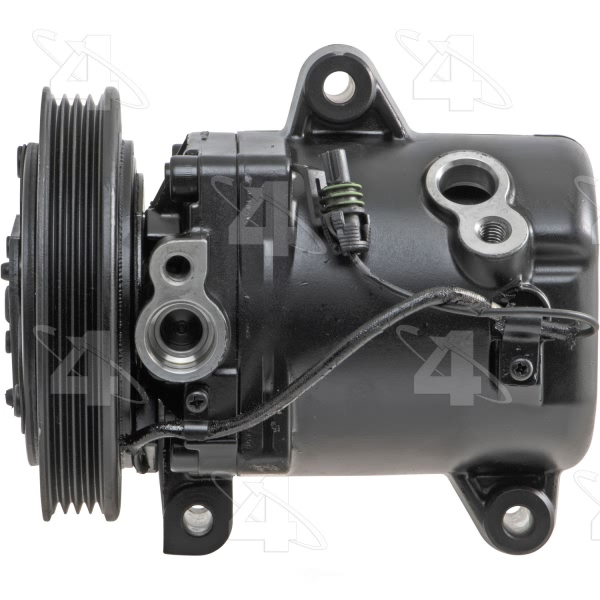

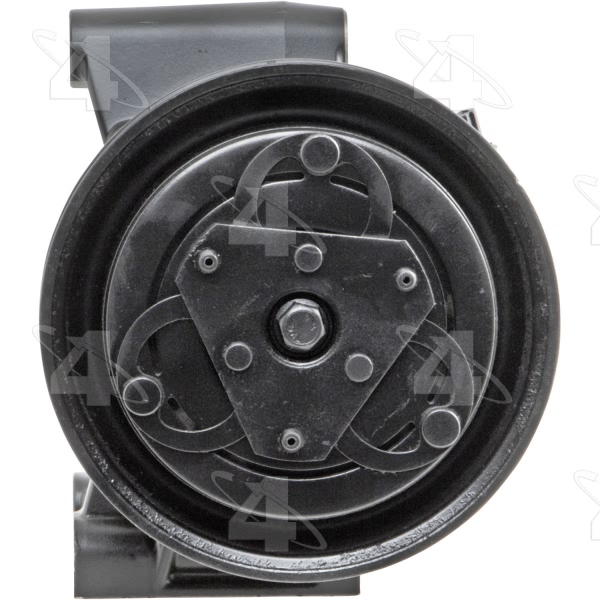

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.71875 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | SS72DLG1 |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 2.328125 |
Mount Distance MM | 59.182 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24661] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24681] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 119.888 |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 4.71875 |
Pulley Outside Diameter | 4.71875 |
Pulley Ridge Diameter | 4.71875 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Lead Wire |
UPC | 096361674011 |
Year Make Model | Trim | Engine |
---|---|---|
2008-2010 Smart Fortwo | All Trims | All Engines |
2011-2015 Smart Fortwo | All Trims | 3 Cyl 1.0L |
