Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 67398 |

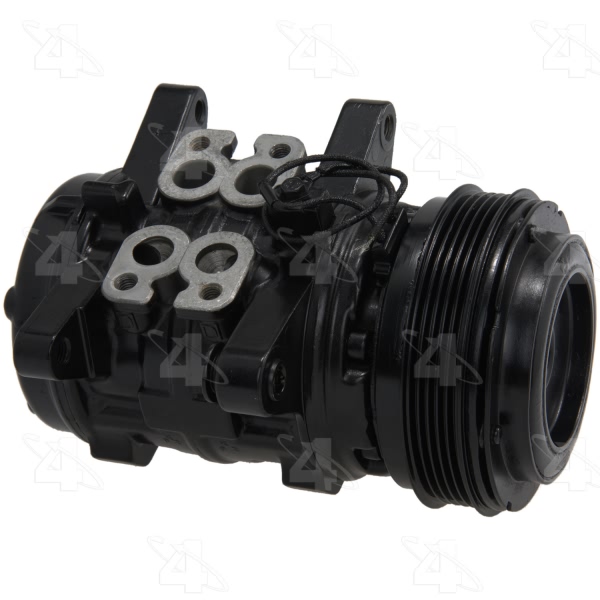

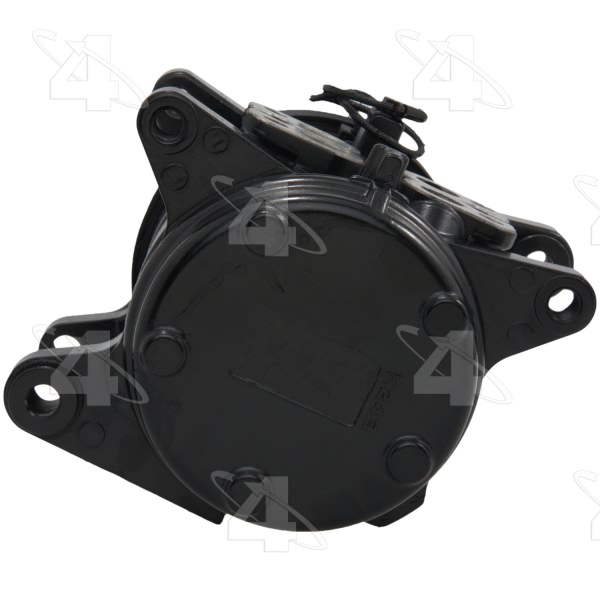

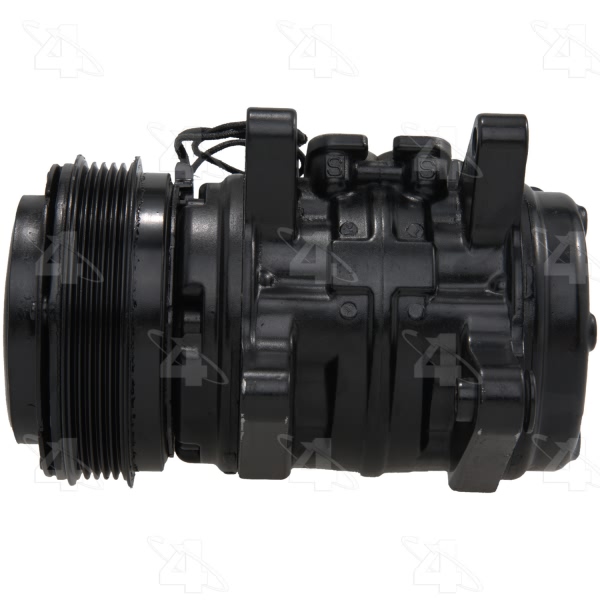

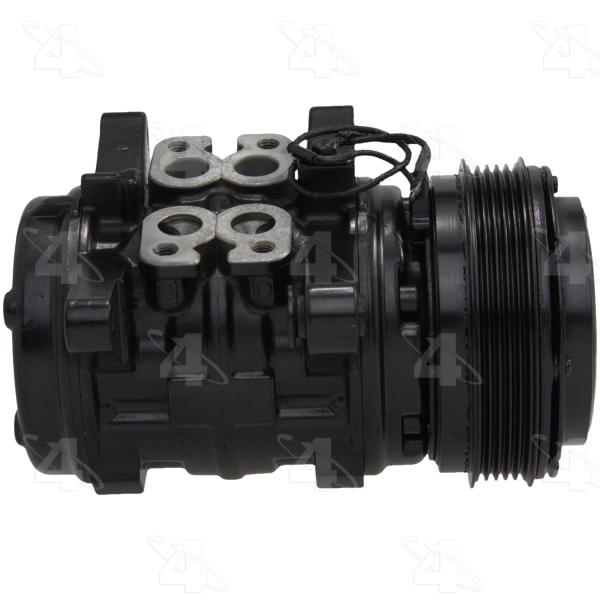

Part Description | Remanufactured A C Compressor With Clutch |
Belt Width IN | 0.750 |
Belt Width MM | 19.050 |
Clutch Included | Yes |

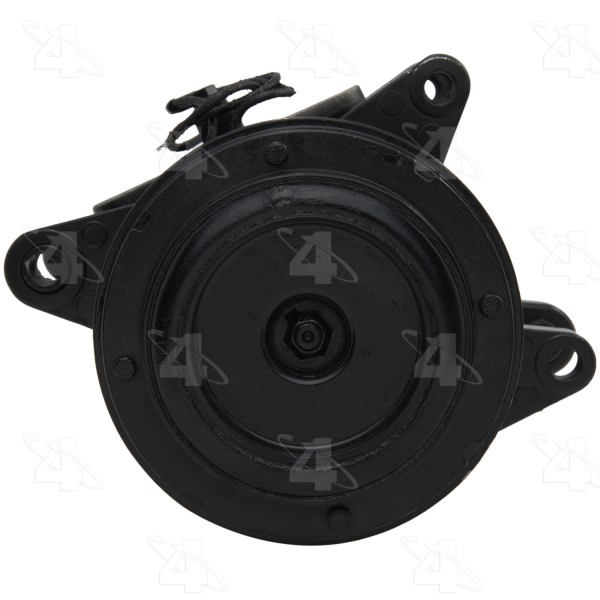

Clutch Maximum Diameter | 4.750 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10P13A |

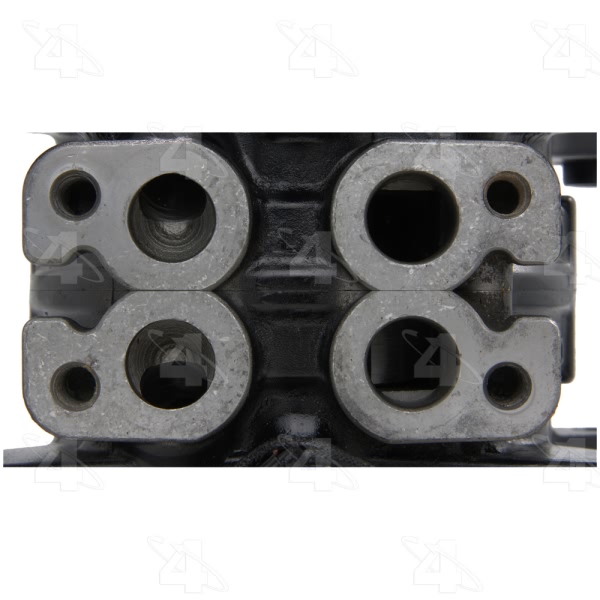

Discharge Port Type | Pad Mount |
Distance From Clutch To Mounting Flange | 1.750 |
Mount Distance MM | 44.450 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24613] / Green O-Ring |
O-Ring A Quantity | 4 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 120.650 |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 4.750 |
Pulley Outside Diameter | 4.750 |
Pulley Ridge Diameter | 4.750 |
Refrigerant Type | R134a |
Suction Port Type | Pad Mount |

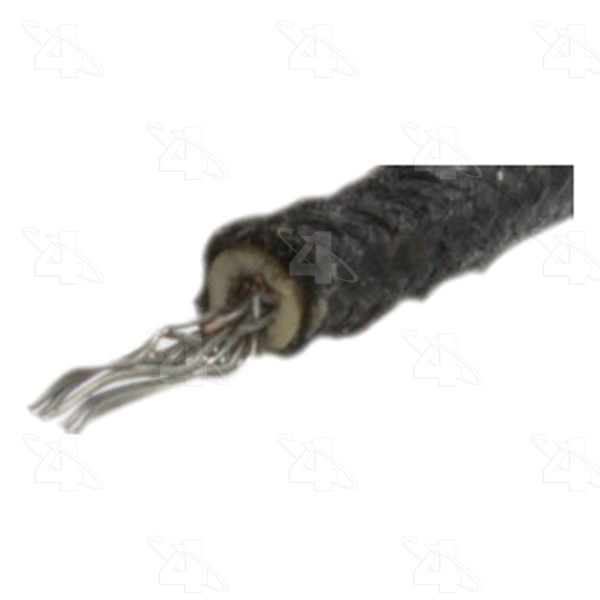

Terminal Type | Lead Wire |
UPC | 096361673984 |
Year Make Model | Trim | Engine |
---|---|---|
1988-1992 Mazda 626 | All Trims | All Engines |
1988-1992 Mazda MX-6 | All Trims | All Engines |
