Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 67382 |
Part Description | Remanufactured A C Compressor With Clutch |
Belt Width IN | 0.750 |
Belt Width MM | 19.050 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.250 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10P15C |
Discharge Port Type | Pad Mount |
Distance From Clutch To Mounting Flange | 3.09375 |
Mount Distance MM | 78.740 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24613] / Green O-Ring |
O-Ring A Quantity | 4 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 133.350 |
Pulley Groove Quantity | 5 |

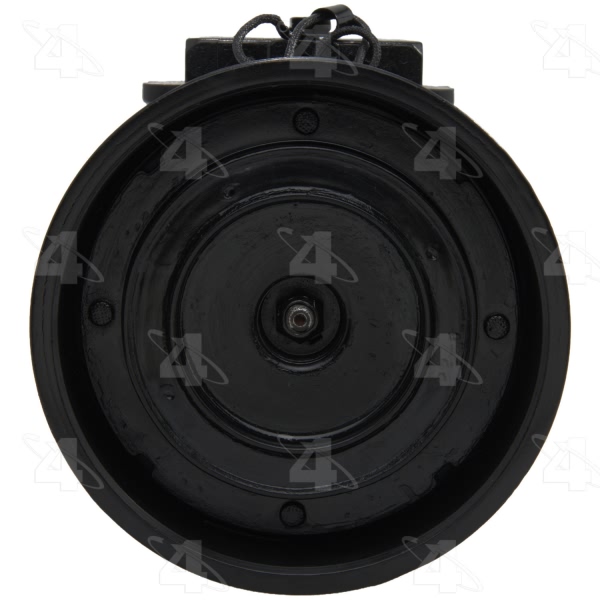

Pulley Lip Diameter | 5.250 |
Pulley Outside Diameter | 5.250 |
Pulley Ridge Diameter | 5.250 |
Refrigerant Type | R134a |
Suction Port Type | Pad Mount |

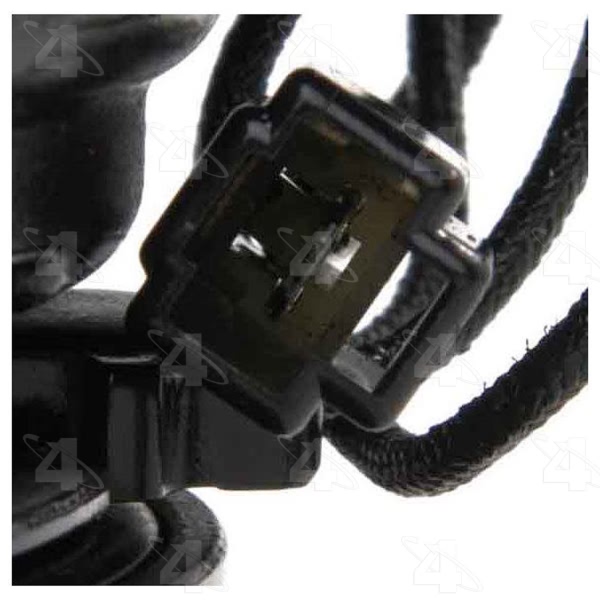

Terminal Type | Butt |
UPC | 096361673823 |
Year Make Model | Trim | Engine |
---|---|---|
1986 Toyota Celica | GT | All Engines |
1986 Toyota Celica | GTS | All Engines |
1986 Toyota Celica | ST | All Engines |
1987 Toyota Celica | All Trims | All Engines |
1987 Toyota Corolla | All Trims | All Engines |
1988 Toyota Corolla | FX16 | 4 Cyl 1.6L |
1988 Toyota Corolla | FX16 GTS | 4 Cyl 1.6L |
