Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 67340 |

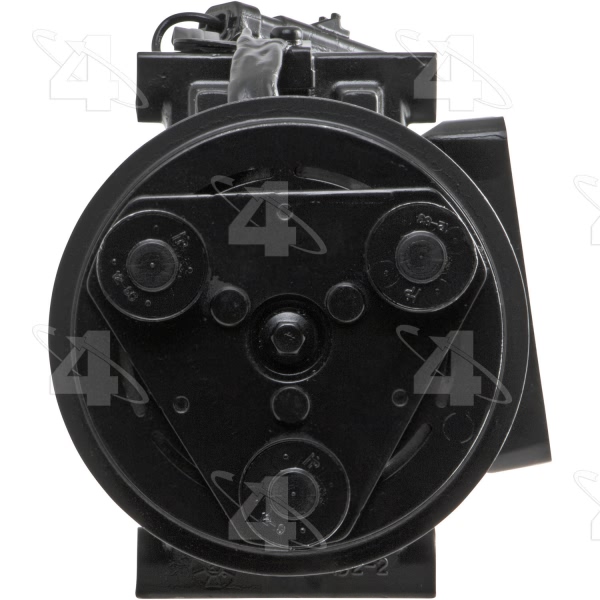

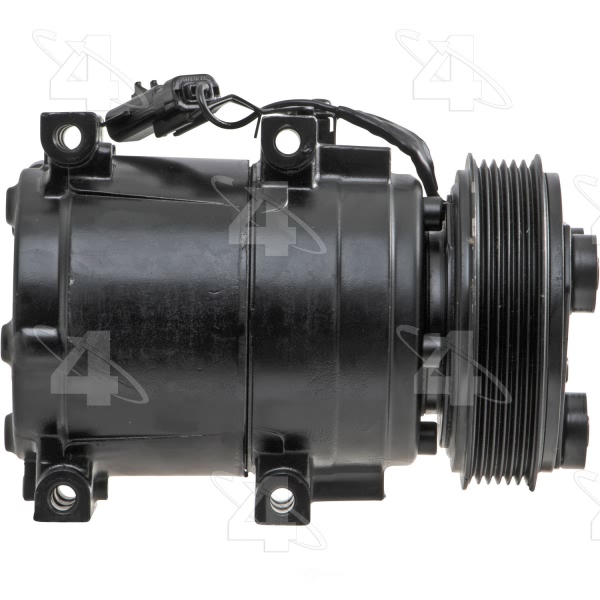

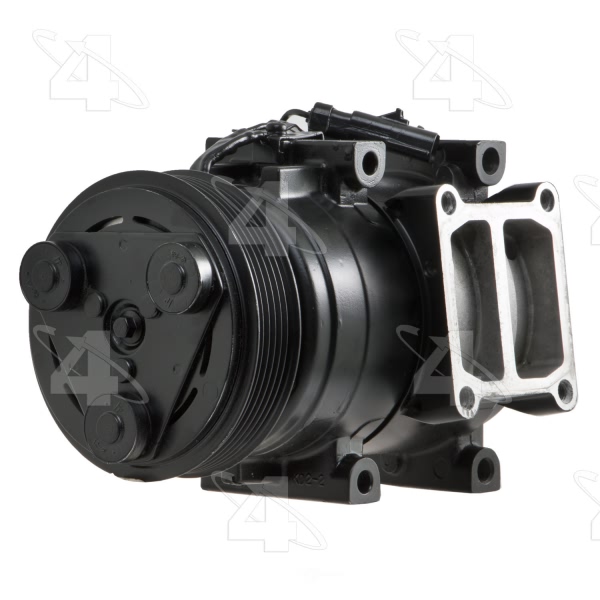

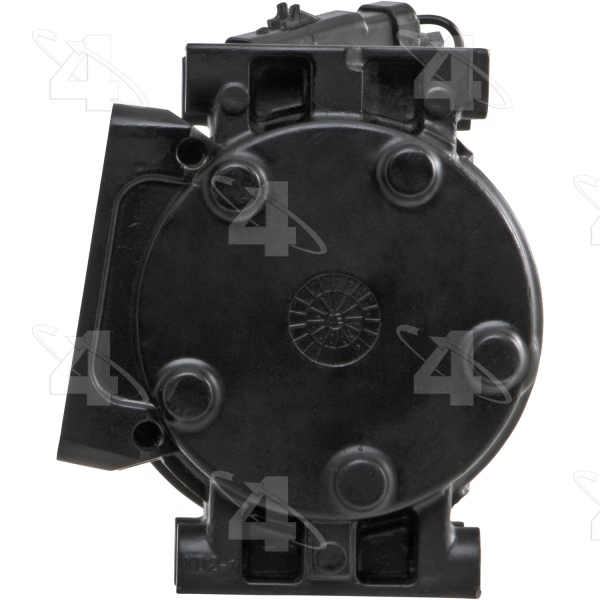

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.625 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | HS15 |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 2.296875 |
Mount Distance MM | 58.420 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |

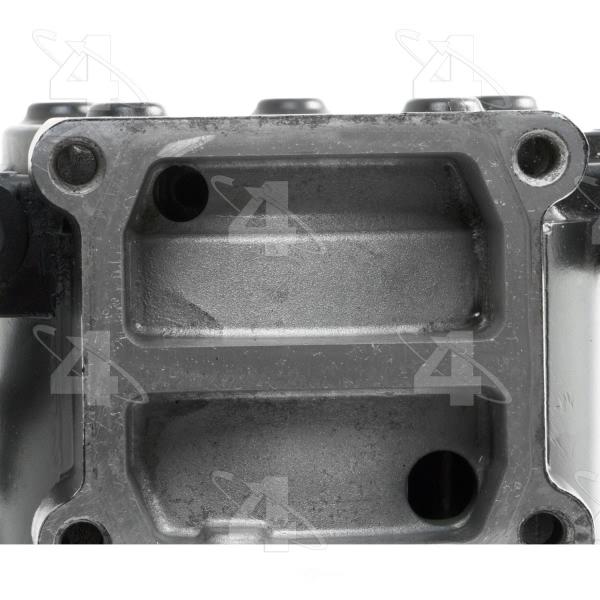

Printed Foot Note | Requires Use of Original Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 117.475 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.625 |
Pulley Outside Diameter | 4.625 |
Pulley Ridge Diameter | 4.625 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |

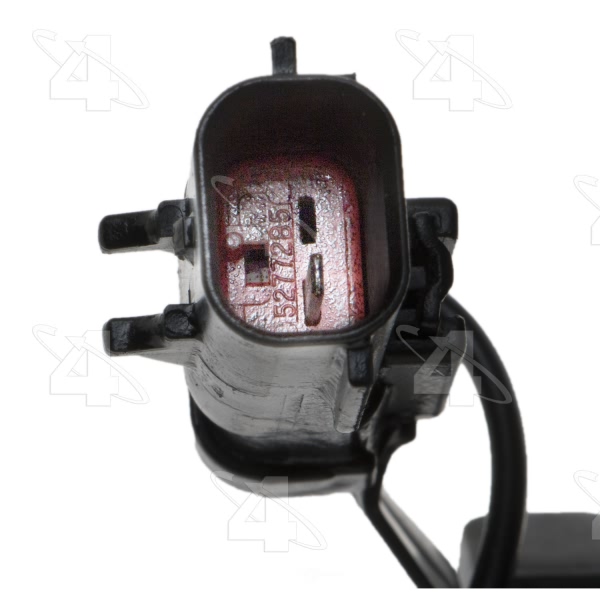

Terminal Type | Pin |
UPC | 096361673403 |
Year Make Model | Trim | Engine |
---|---|---|
2004-2005 Chrysler Sebring | All Trims | 4 Cyl 2.4L |
2004-2005 Chrysler Sebring | All Trims | 6 Cyl 2.7L |
2006 Chrysler Sebring | All Trims | All Engines |
2004-2006 Dodge Stratus | All Trims | 4 Cyl 2.4L |
2004-2006 Dodge Stratus | All Trims | 6 Cyl 2.7L |
