Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 67323 |

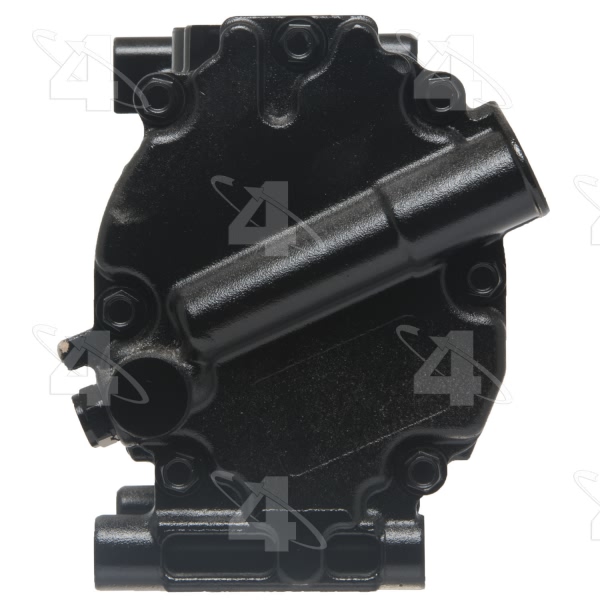

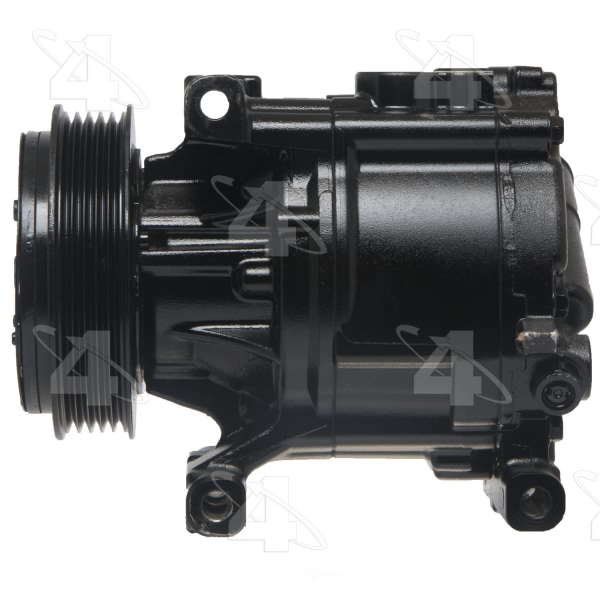

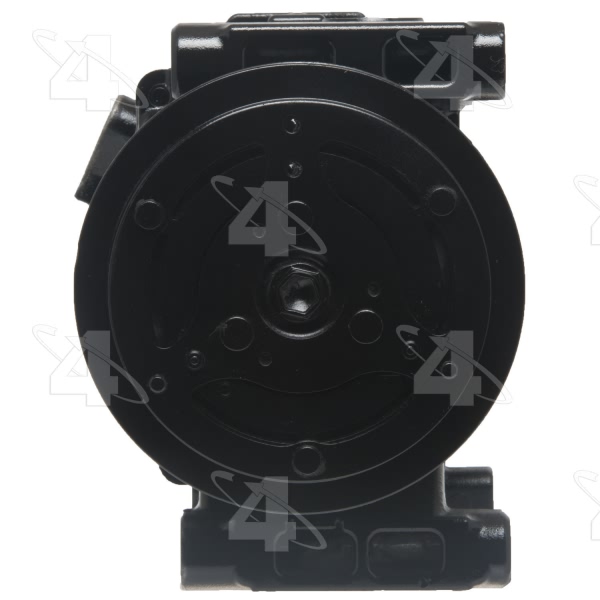

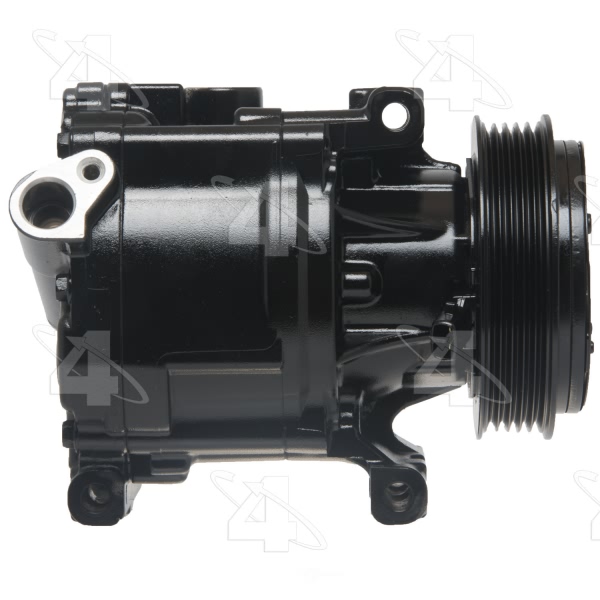

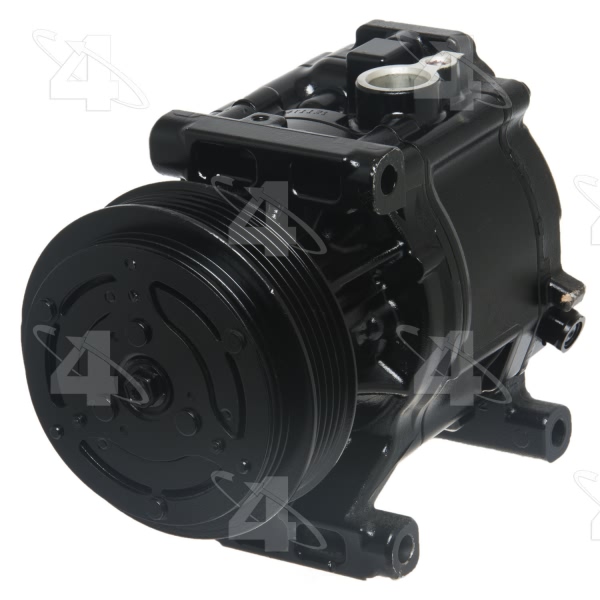

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.330 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | SCSB06C |
Distance From Clutch To Mounting Flange | 0.828125 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | 24661 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24681 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 4.330 |
Pulley Outside Diameter | 4.330 |
Pulley Ridge Diameter | 4.330 |
Refrigerant Type | R134a |

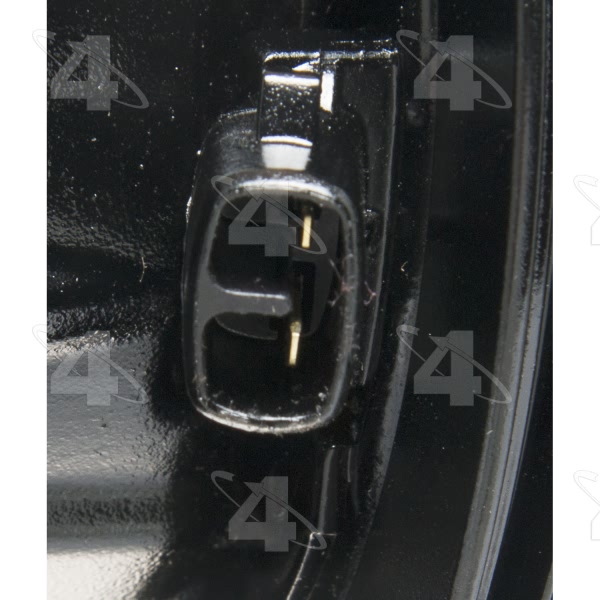

Terminal Type | Lead Wire |
UPC | 096361031425 |
Year Make Model | Trim | Engine |
---|---|---|
2012 Fiat 500 | All Trims | All Engines |
2013-2016 Fiat 500 | All Trims | 4 Cyl 1.4L |
2017 Fiat 500 | Lounge | 4 Cyl 1.4L |
2018 Fiat 500 | Abarth | All Engines |
2018 Fiat 500 | Abarth Cabrio | All Engines |
2018 Fiat 500 | All Trims | All Engines |
2018 Fiat 500 | c Lounge | All Engines |
2018 Fiat 500 | c Pop | All Engines |
2018 Fiat 500 | Lounge | All Engines |
2018 Fiat 500 | Pop | All Engines |
