Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 67302 |

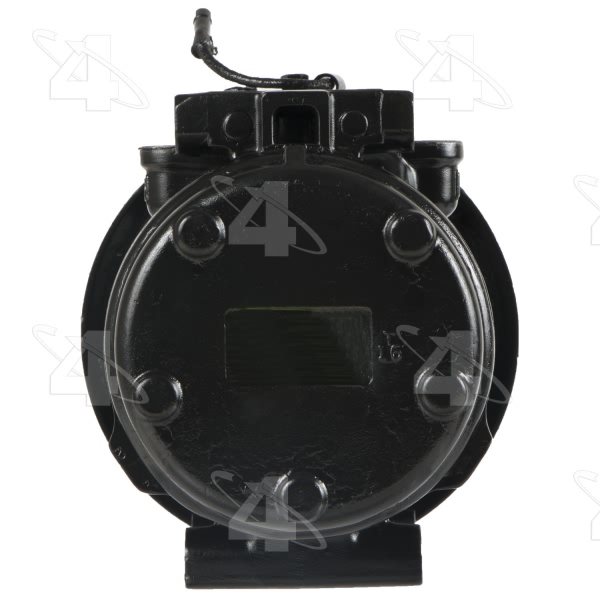

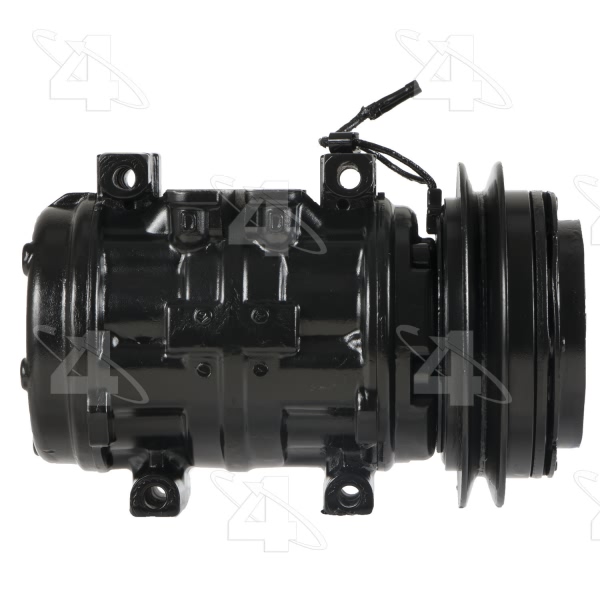

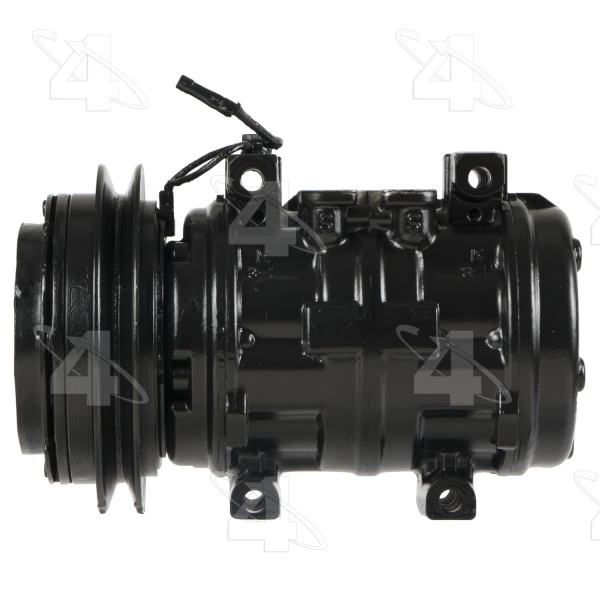

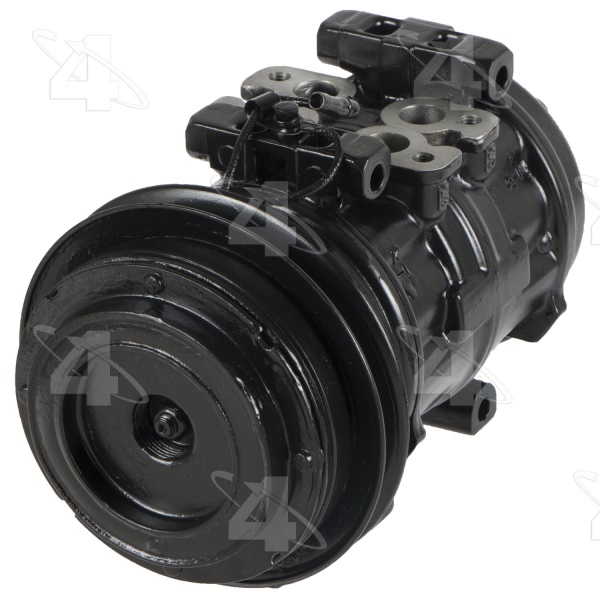

Part Description | Remanufactured A C Compressor With Clutch |
Belt Width IN | 0.500 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.625 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10P15C |
Distance From Clutch To Mounting Flange | 1.6875 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24613] / Green O-Ring |
O-Ring A Quantity | 4 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 142.748 |
Pulley Groove Quantity | 1 |
Pulley Lip Diameter | 5.625 |
Pulley Outside Diameter | 5.625 |
Pulley Ridge Diameter | 5.625 |
Refrigerant Type | R134a |
Reman w/o Clutch | [57310] / Clutch Assembly |
Suc Prt Typ Note | w/O-Ring |

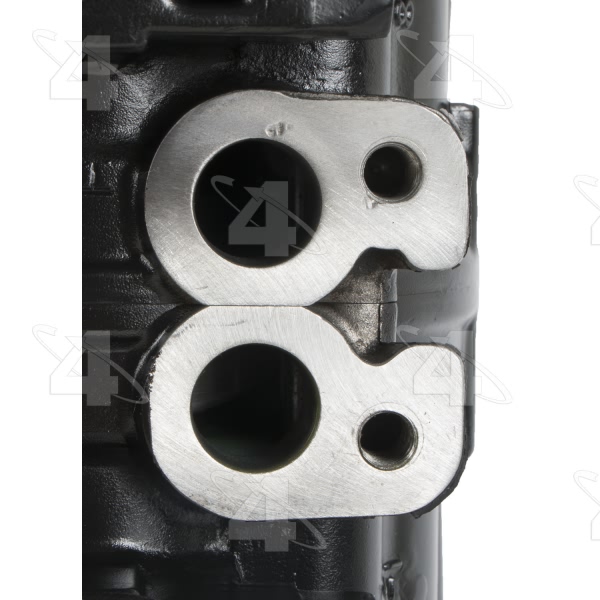

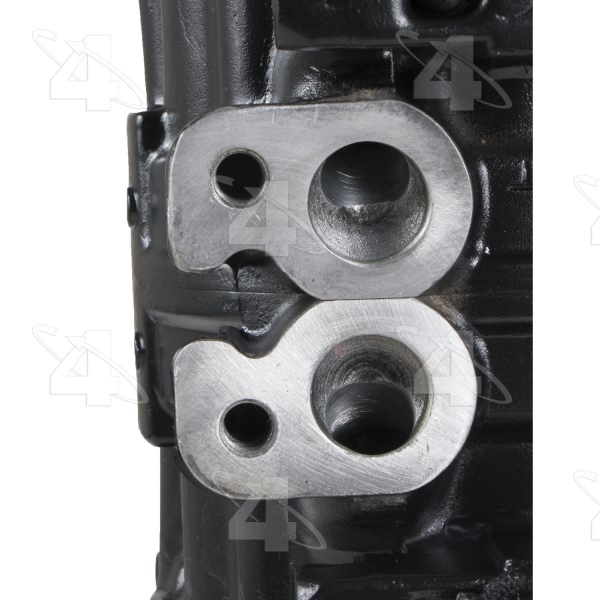

Suction Port Type | Pad Mount |

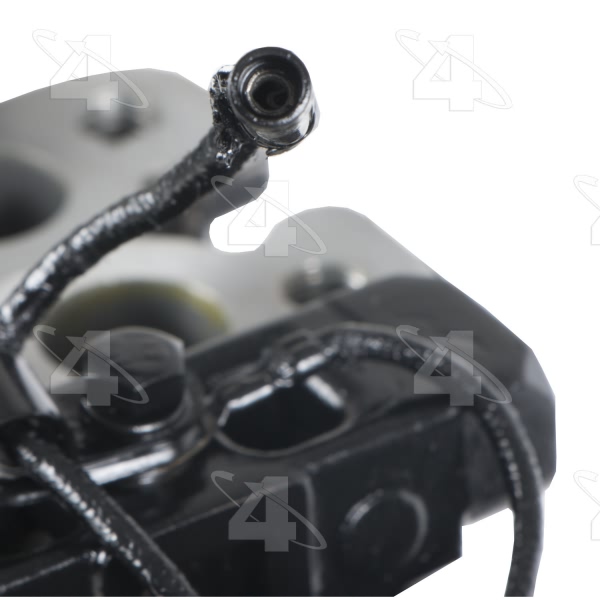

Terminal Type | Spade |
UPC | 096361673021 |
Year Make Model | Trim | Engine |
---|---|---|
1991 Mazda RX-7 | All Trims | 2 Cyl 1.3L |
1984 Toyota 4Runner | All Trims | All Engines |
1985 Toyota 4Runner | All Trims | 4 Cyl 2.4L |
1986-1987 Toyota 4Runner | All Trims | All Engines |
1988 Toyota 4Runner | All Trims | 4 Cyl 2.4L |
1985 Toyota Celica | GT | All Engines |
1985 Toyota Celica | GTS | All Engines |
1985 Toyota Celica | ST | All Engines |
1985-1986 Toyota Celica | Supra | All Engines |
1986 Toyota Corolla | DLX | All Engines |
