Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 67283 |

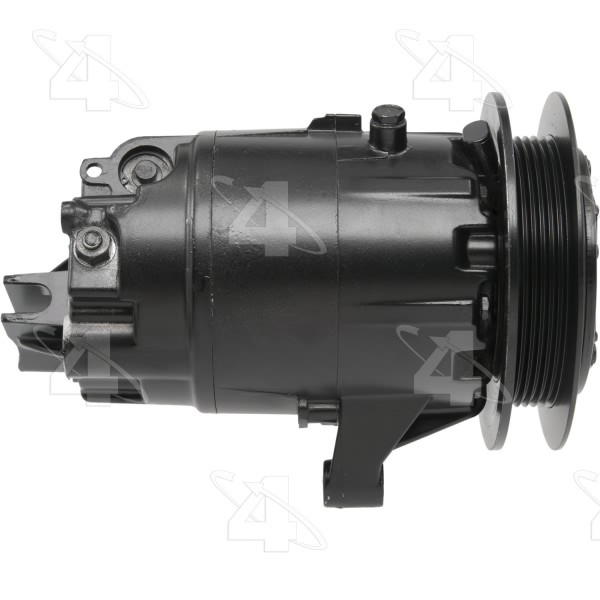

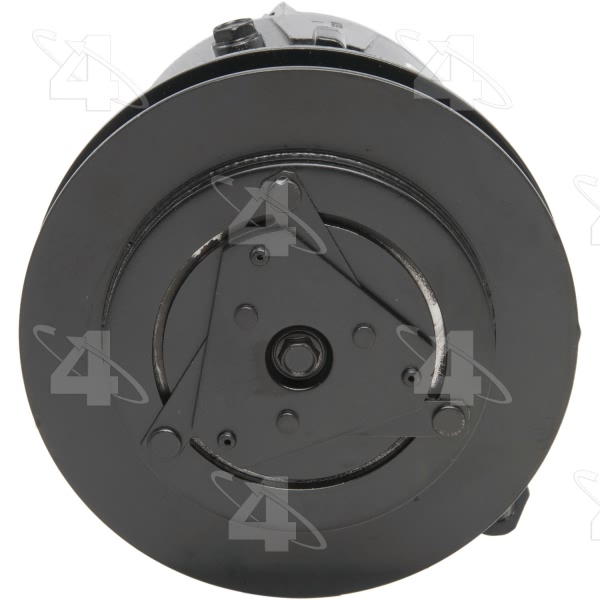

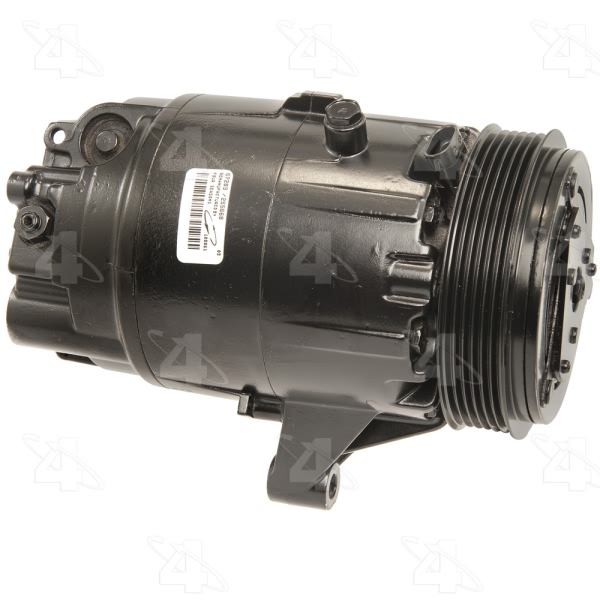

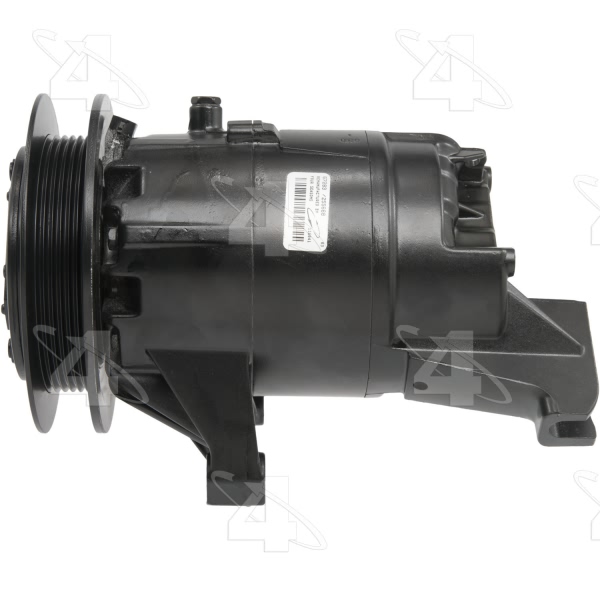

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.750 |
Coil Clock Position | 4 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | CVC |
Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 2.000 |
Mount Distance MM | 50.800 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24402] / Slimline Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 120.650 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.750 |
Pulley Outside Diameter | 4.750 |
Pulley Ridge Diameter | 4.750 |
Refrigerant Type | R134a |
Suc Prt Typ Note | 12 O'Clock |
Suction Port Type | Sealing Washer |
Terminal Type | Pin |
UPC | 096361672833 |
Year Make Model | Trim | Engine |
---|---|---|
2005-2009 Buick Allure | All Trims | 6 Cyl 3.8L |
2005-2009 Buick LaCrosse | All Trims | 6 Cyl 3.8L |
2004-2005 Chevrolet Impala | All Trims | 6 Cyl 3.8L |
2004-2005 Chevrolet Monte Carlo | All Trims | 6 Cyl 3.8L |
2004 Pontiac Grand Prix | All Trims | All Engines |
2005-2008 Pontiac Grand Prix | All Trims | 6 Cyl 3.8L |
