Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 67193 |
Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.4375 |
Coil Clock Position | 12 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | FS18 |

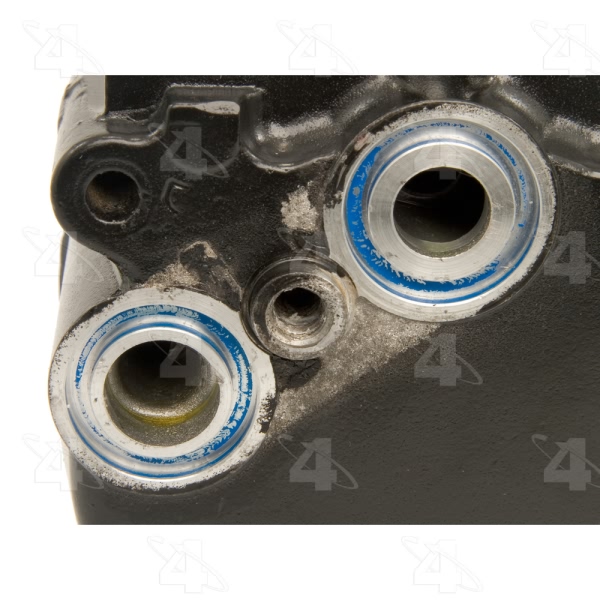

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.65625 |
Mount Distance MM | 41.910 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24621] / Green Oval O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 112.700 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.4375 |
Pulley Outside Diameter | 4.4375 |
Pulley Ridge Diameter | 4.4375 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |

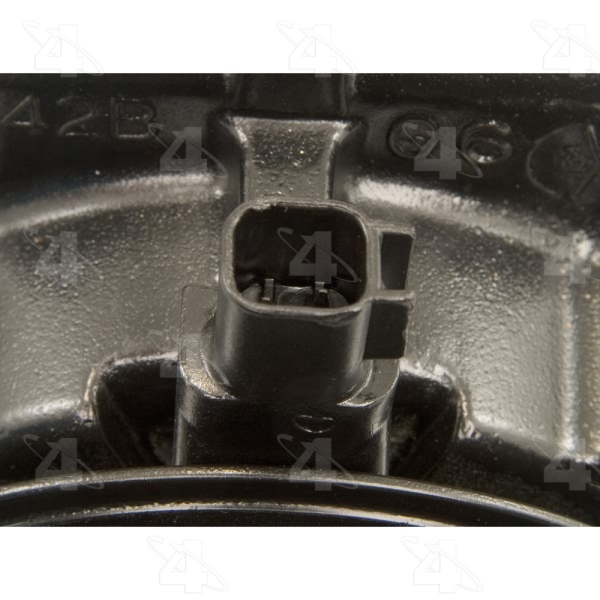

Terminal Type | 8mm - 10mm Pin Connector or Pin |
UPC | 096361671935 |
Year Make Model | Trim | Engine |
---|---|---|
2007-2010 Ford Mustang | All Trims | 6 Cyl 4.0L |
