Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 67186 |

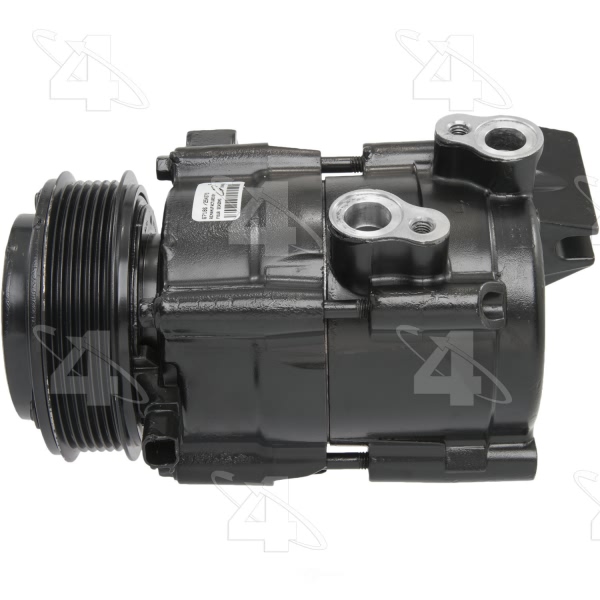

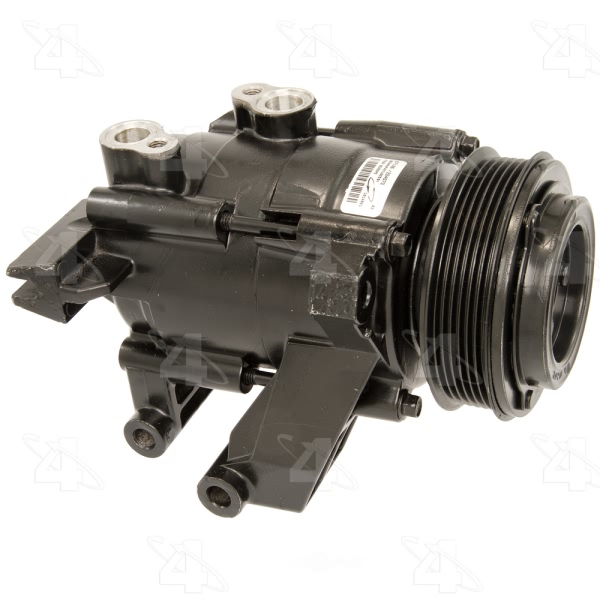

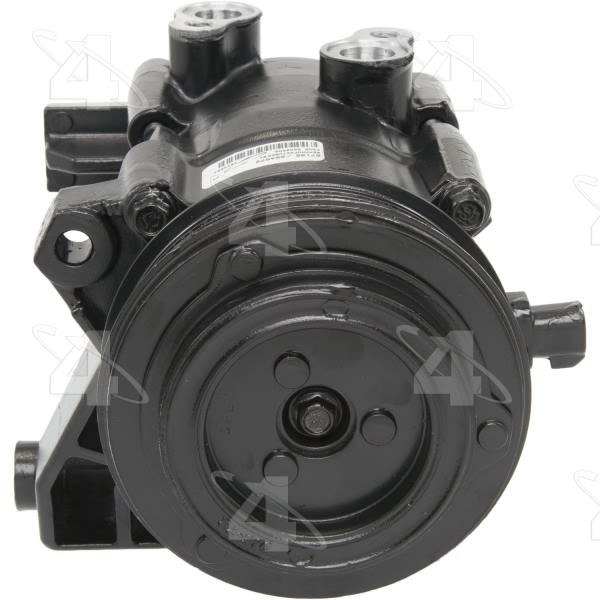

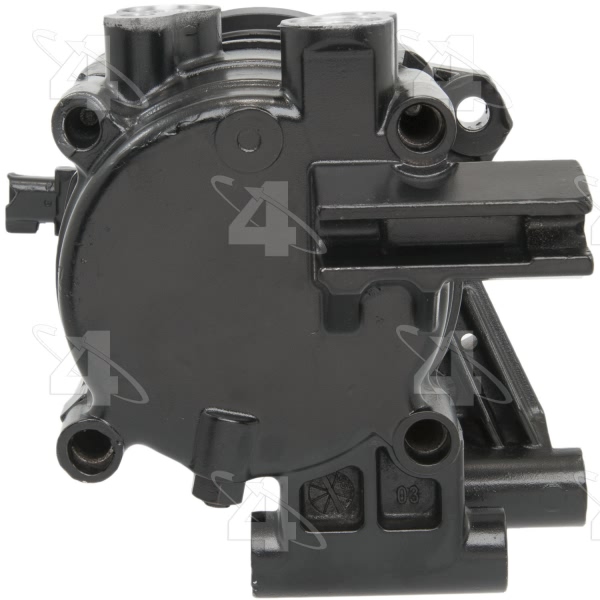

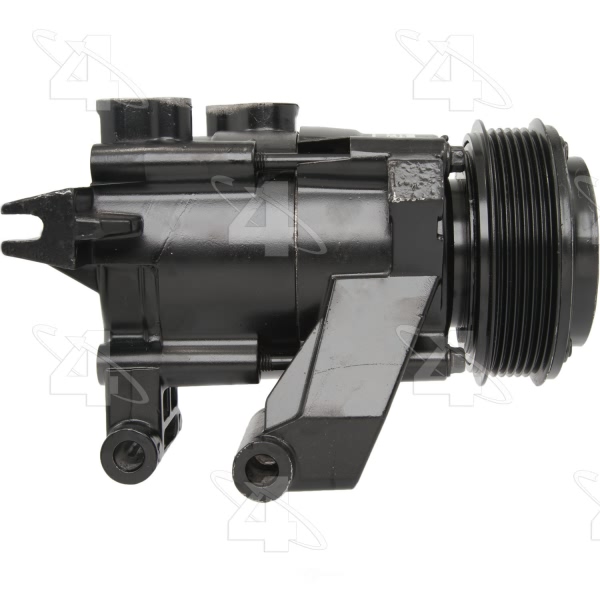

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.4375 |
Coil Clock Position | 3 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | FS18 |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 0.984375 |
Mount Distance MM | 25.146 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24403] / Slimline Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 112.700 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.4375 |
Pulley Outside Diameter | 4.4375 |
Pulley Ridge Diameter | 4.4375 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361671867 |
Year Make Model | Trim | Engine |
---|---|---|
2008-2010 Saturn Vue | All Trims | 6 Cyl 3.6L |
