Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 67182 |

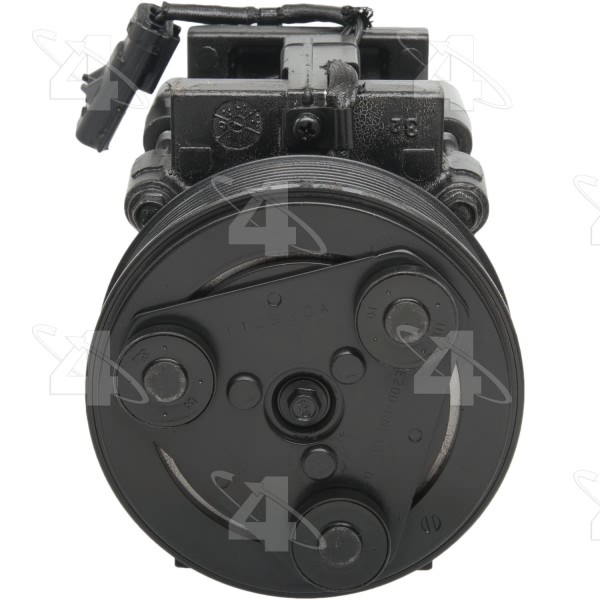

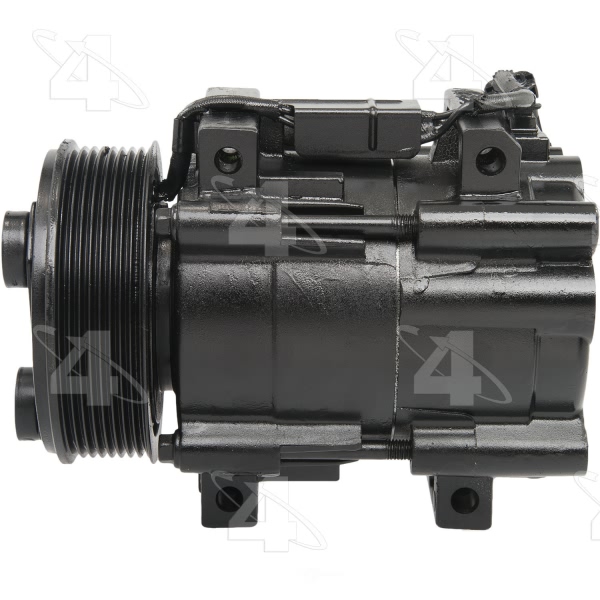

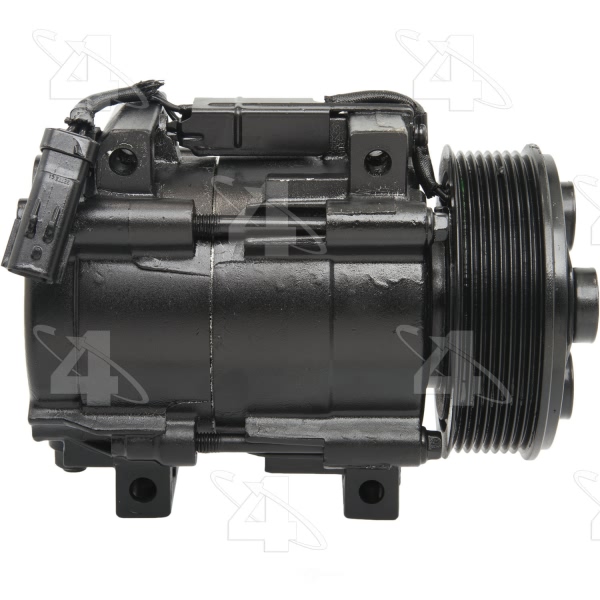

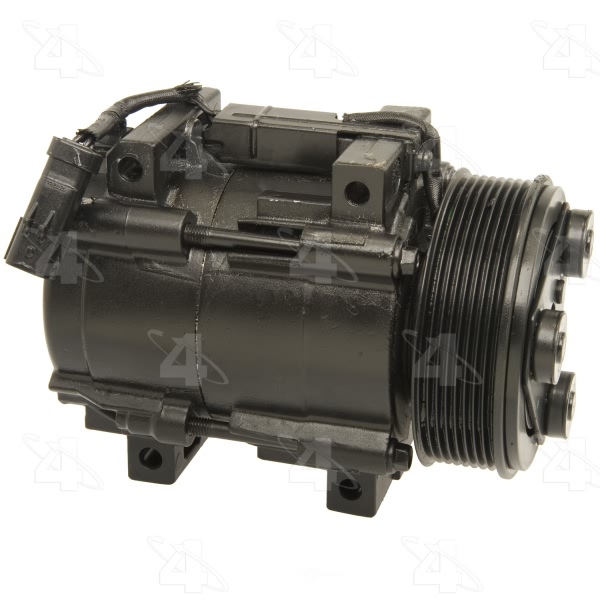

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.3125 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | HS18 |
Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 0.859375 |
Mount Distance MM | 21.590 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24354] / Sealing Washer |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 109.525 |
Pulley Groove Quantity | 8 |
Pulley Lip Diameter | 4.3125 |
Pulley Outside Diameter | 4.3125 |
Pulley Ridge Diameter | 4.3125 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |
Terminal Type | Pin |
UPC | 096361671829 |
Year Make Model | Trim | Engine |
---|---|---|
2006-2009 Dodge Ram 2500 | All Trims | 6 Cyl 5.9L |
2007-2009 Dodge Ram 2500 | All Trims | 6 Cyl 6.7L |
2006-2007 Dodge Ram 3500 | All Trims | 6 Cyl 5.9L |
2007-2009 Dodge Ram 3500 | All Trims | 6 Cyl 6.7L |
