Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57985 |

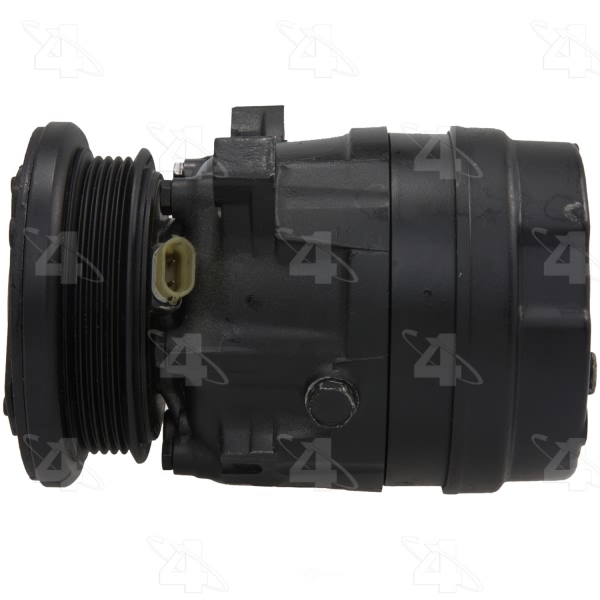

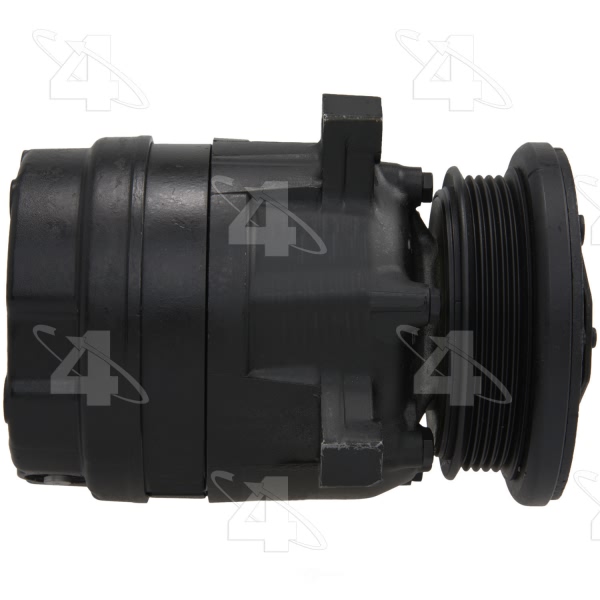

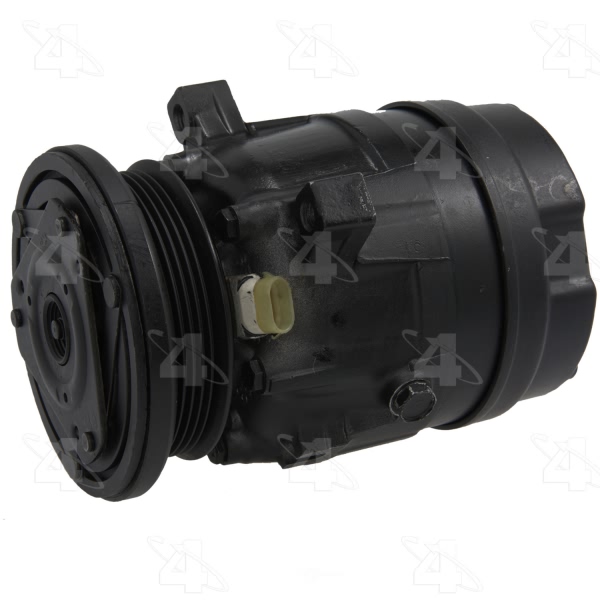

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.250 |
Coil Clock Position | 2 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | V5 |
Distance From Clutch To Mounting Flange | 1.296875 |
Mounting Hardware | Not Included |

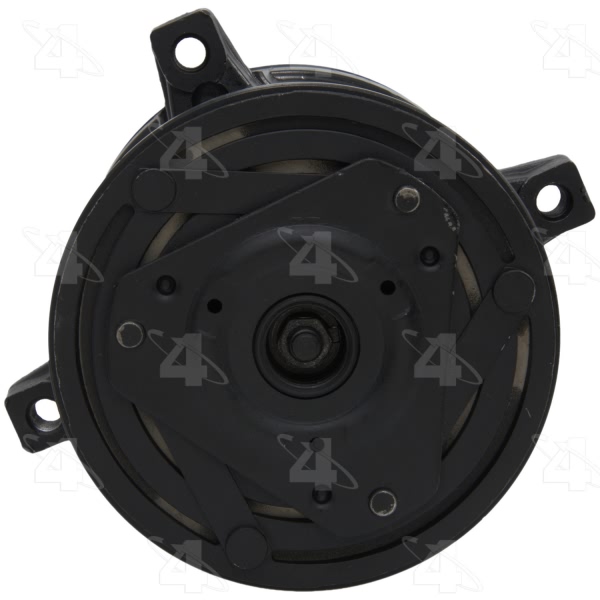

Mounting Type | Ear Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24354] / Sealing Washer |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Printed Foot Note | This compressor is equipped with an R12 Control Valve. If retrofitting to R134a, Control Valve [38846] is recommended for optimum system performance. |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 107.950 |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 4.250 |
Pulley Outside Diameter | 4.250 |
Pulley Ridge Diameter | 4.250 |
Refrigerant Type | R134a |
Suc Prt Typ Note | R12 - 5/8" Suction |

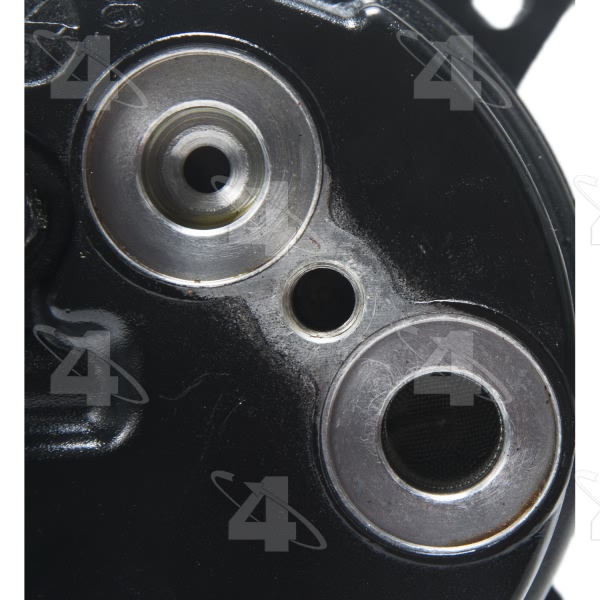

Suction Port Type | Sealing Washer |

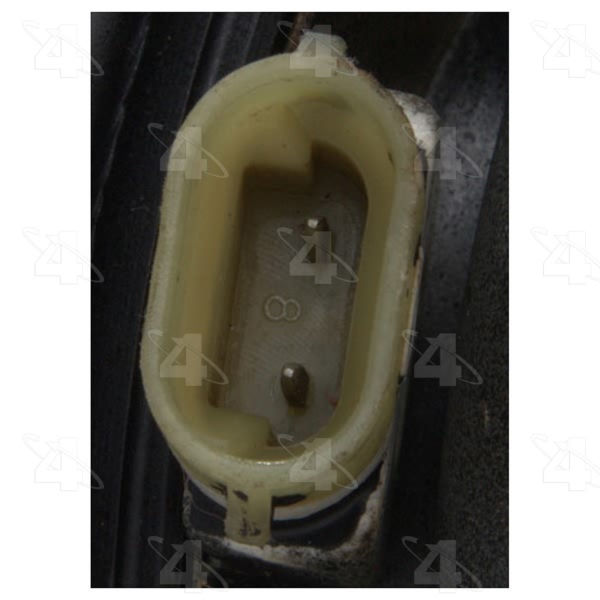

Terminal Type | 8mm Pin Connector |
UPC | 096361579859 |
Year Make Model | Trim | Engine |
---|---|---|
1993 Buick Century | All Trims | 4 Cyl 2.2L |
1993 Oldsmobile Cutlass Ciera | All Trims | 4 Cyl 2.2L |
