Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57974 |
Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.250 |
Coil Clock Position | 2 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | V5 |
Distance From Clutch To Mounting Flange | 1.15625 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24354] / Sealing Washer |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Printed Foot Note | This compressor is equipped with an R12 Control Valve. If retrofitting to R134a, Control Valve [38846] is recommended for optimum system performance. |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 107.950 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.250 |
Pulley Outside Diameter | 4.250 |
Pulley Ridge Diameter | 4.250 |
Refrigerant Type | R134a |

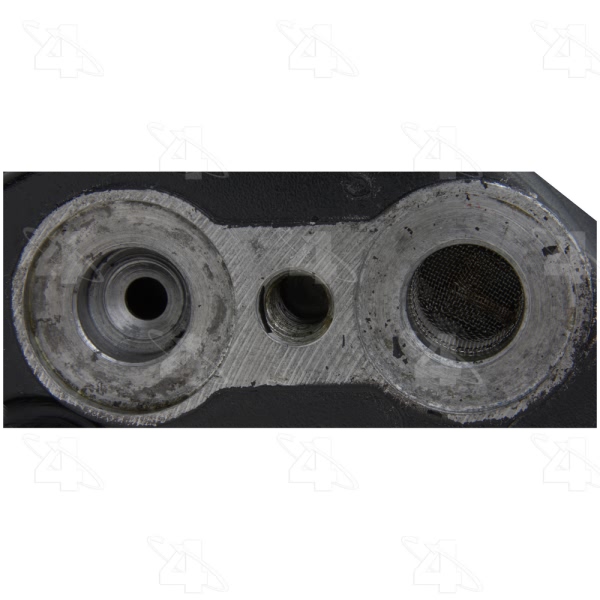

Suc Prt Typ Note | w/ 5/8" x 5/8" Ports |
Suction Port Type | Sealing Washer |
Switch Included | High Pressure |

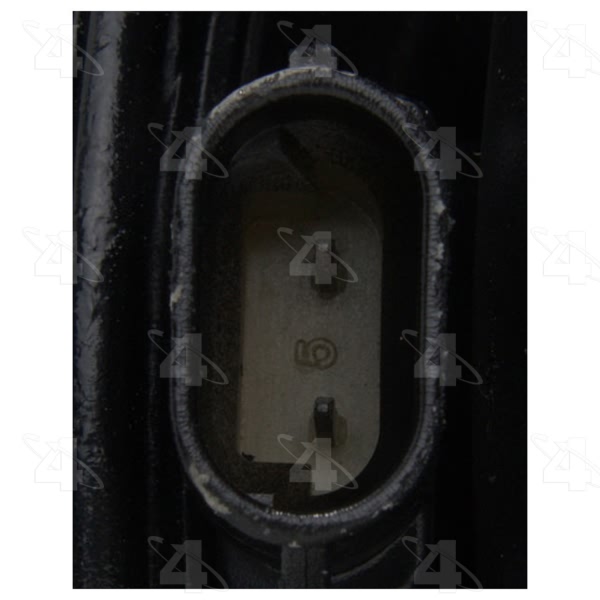

Terminal Type | 8mm Pin Connector |
UPC | 096361579743 |
Year Make Model | Trim | Engine |
---|---|---|
1992 Buick Century | All Trims | 4 Cyl 2.5L |
1992-1993 Buick Regal | All Trims | 6 Cyl 3.1L |
1992-1993 Chevrolet Lumina | All Trims | All Engines |
1992-1993 Chevrolet Lumina APV | All Trims | 6 Cyl 3.1L |
1992-1993 Oldsmobile Cutlass | All Trims | All Engines |
1992 Oldsmobile Cutlass Ciera | All Trims | 4 Cyl 2.5L |
1992-1993 Oldsmobile Cutlass Supreme | All Trims | All Engines |
1992-1993 Pontiac Grand Prix | All Trims | All Engines |
