Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57973 |
Part Description | Remanufactured A C Compressor With Clutch |

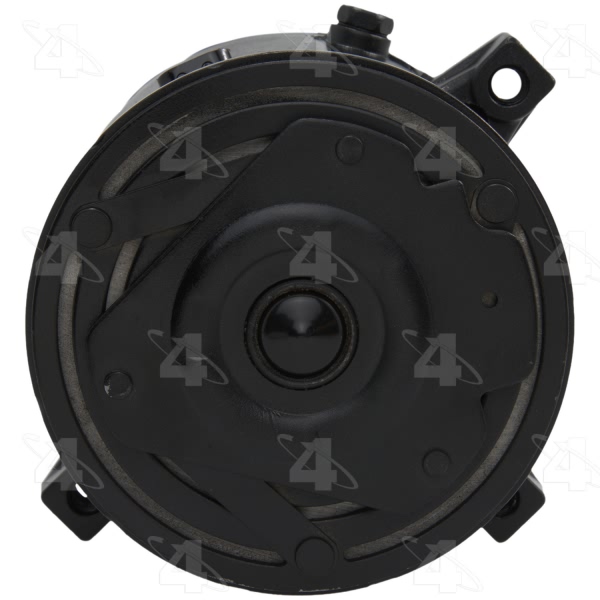

Clutch Included | Yes |
Clutch Maximum Diameter | 4.625 |
Coil Clock Position | 2 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | V5 |
Distance From Clutch To Mounting Flange | 1.15625 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24355] / Sealing Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24354] / Sealing Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 117.348 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.625 |
Pulley Outside Diameter | 4.625 |
Pulley Ridge Diameter | 4.625 |
Refrigerant Type | R134a |
Suc Prt Typ Note | R134A - 3/4" Suction |

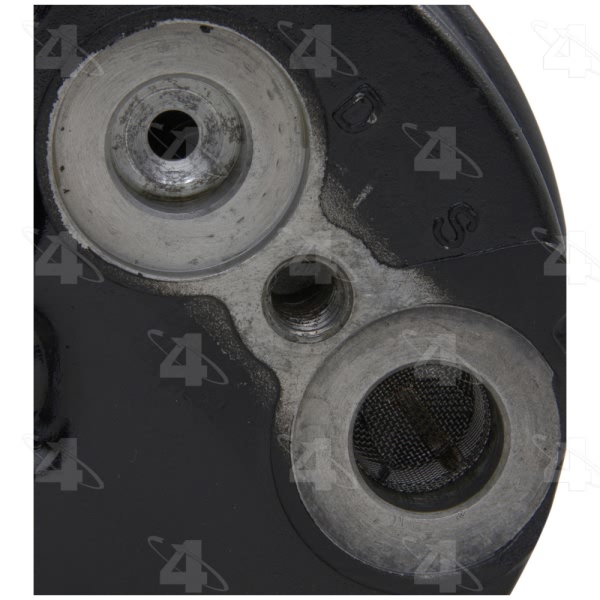

Suction Port Type | Sealing Washer |

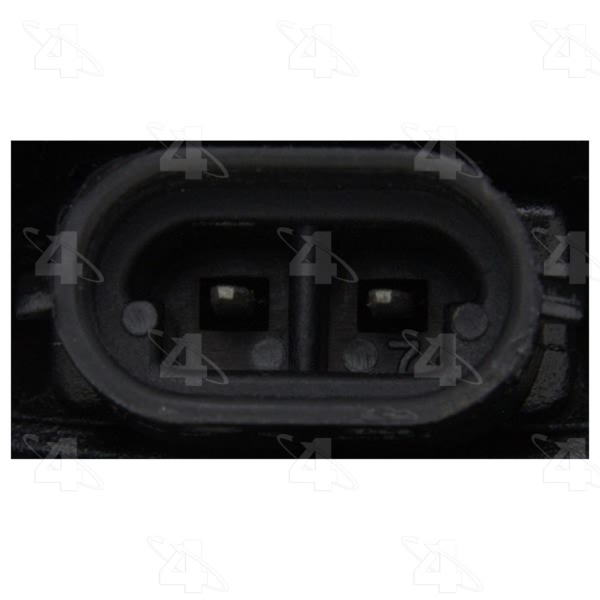

Terminal Type | 8mm Pin Connector |
UPC | 096361579736 |
Year Make Model | Trim | Engine |
---|---|---|
1993-1994 Chevrolet Cavalier | All Trims | 6 Cyl 3.1L |
1994 Pontiac Sunbird | All Trims | 6 Cyl 3.1L |
