Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57963 |

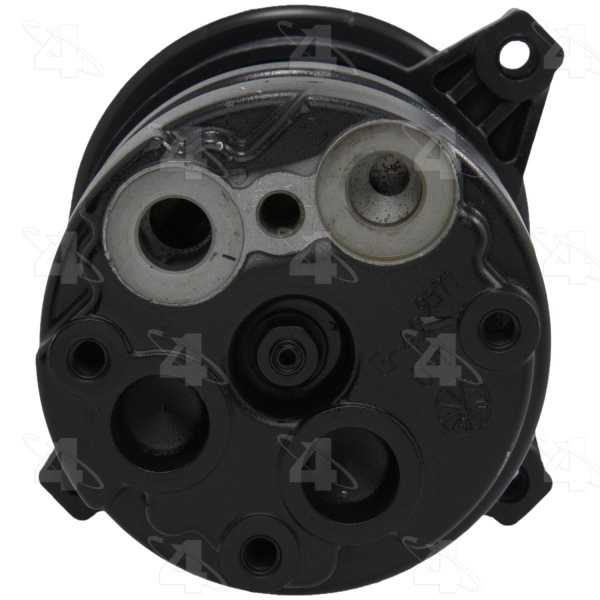

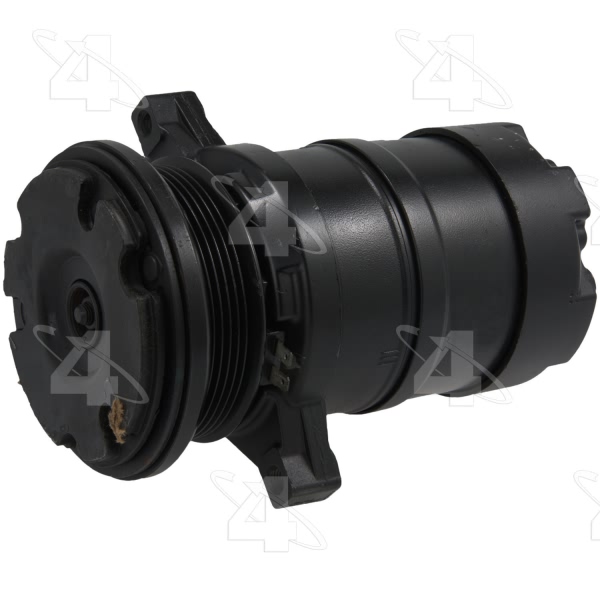

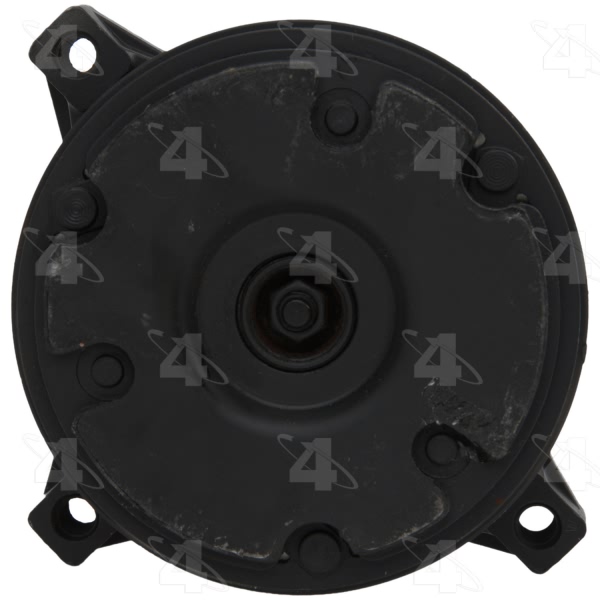

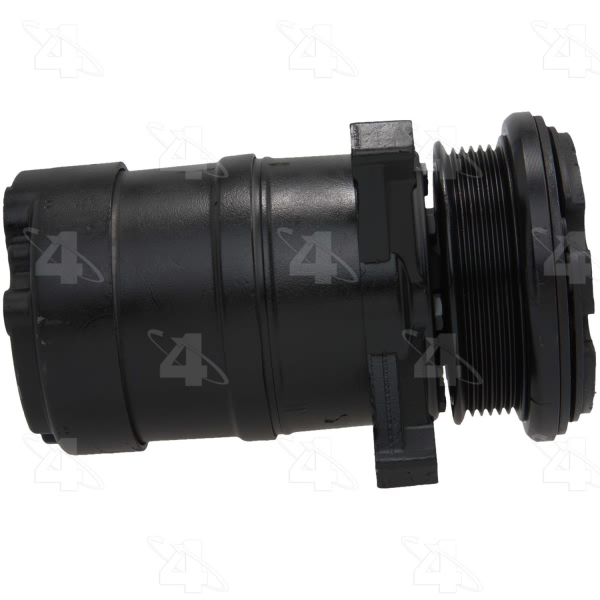

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.250 |
Coil Clock Position | 2 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | DA6, HR6, HE6 |
Distance From Clutch To Mounting Flange | 0.59375 |
Mounting Hardware | Not Included |
Mounting Type | Type I, Metric Threads |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24354] / Sealing Washer |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 107.950 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.250 |
Pulley Outside Diameter | 4.250 |
Pulley Ridge Diameter | 4.250 |
Refrigerant Type | R134a |

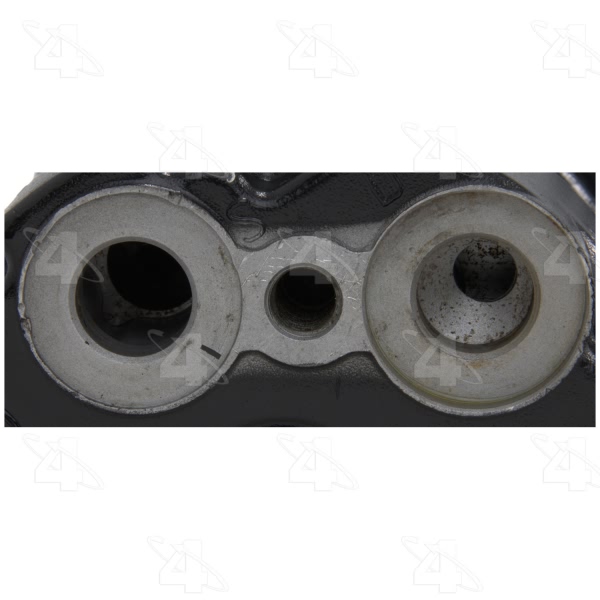

Suc Prt Typ Note | w/ 5/8" x 5/8" Ports |
Suction Port Type | Sealing Washer |

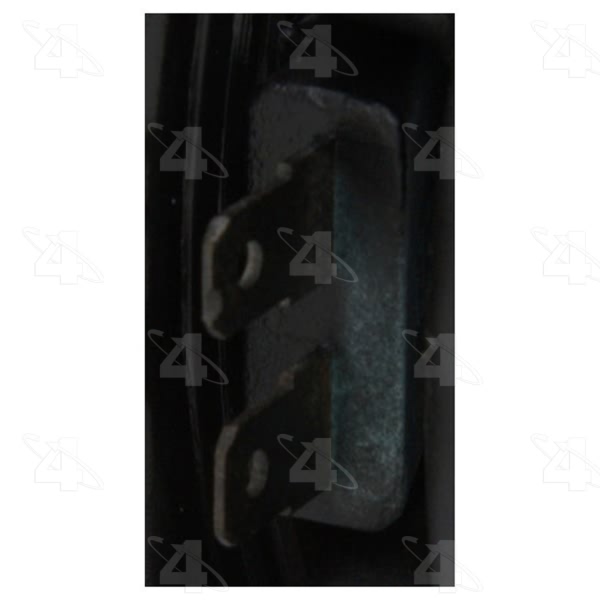

Terminal Type | 8mm Pin Connector |
UPC | 096361579637 |
Year Make Model | Trim | Engine |
---|---|---|
1992 Cadillac Allante | All Trims | All Engines |
1992-1993 Cadillac DeVille | All Trims | All Engines |
1992 Cadillac Eldorado | All Trims | All Engines |
1992 Cadillac Fleetwood | All Trims | All Engines |
1993 Cadillac Fleetwood | Base | All Engines |
1992 Cadillac Seville | All Trims | All Engines |
1993 Cadillac Seville | All Trims | 8 Cyl 4.9L |
1994 Chevrolet P30 | All Trims | 8 Cyl 6.5L |
1994-1995 GMC P3500 | All Trims | 8 Cyl 6.5L |
