Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57949 |

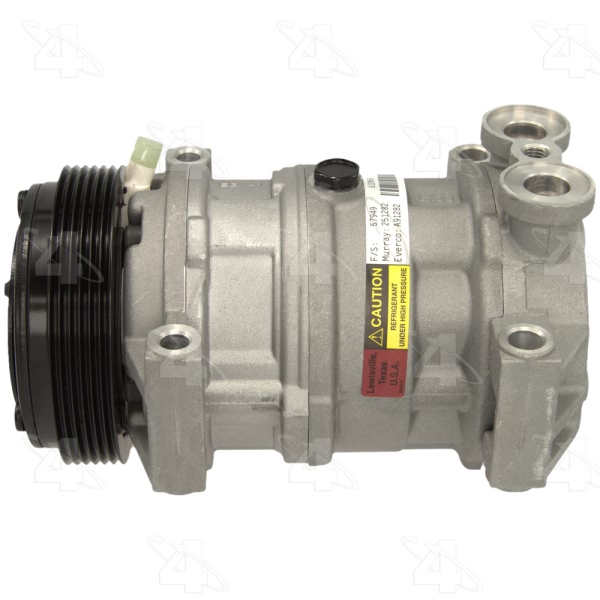

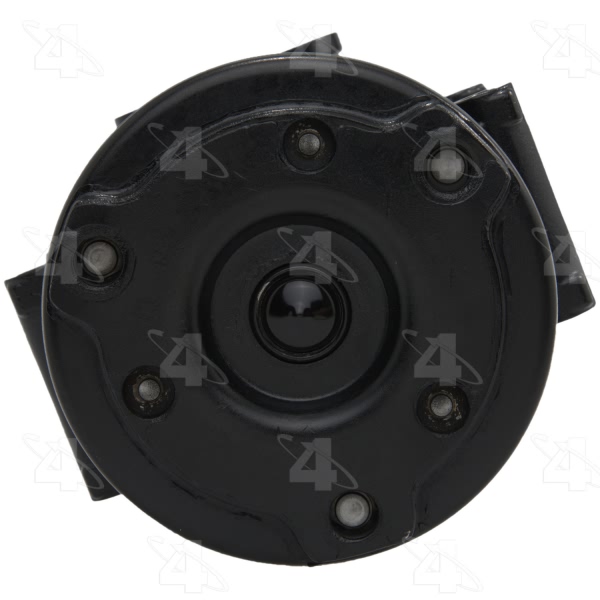

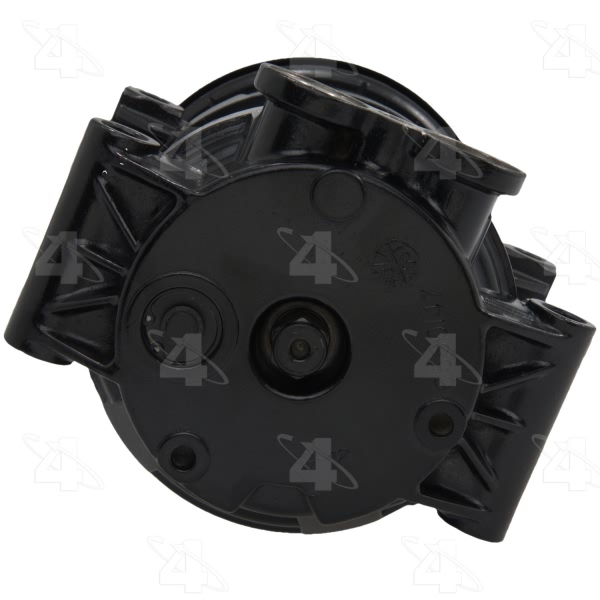

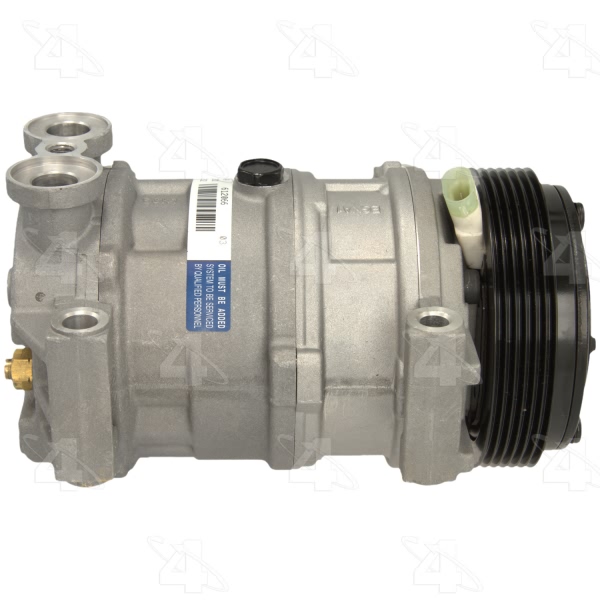

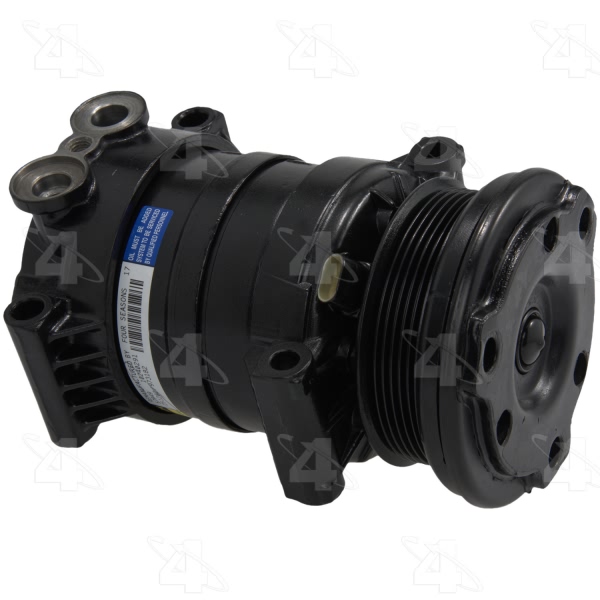

Part Description | Remanufactured A C Compressor With Clutch |
Belt Width IN | 0.875 |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.625 |
Coil Clock Position | 11 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | HT6 |
Distance From Clutch To Mounting Flange | 0.59375 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24354] / Sealing Washer |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 117.348 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.625 |
Pulley Outside Diameter | 4.625 |
Pulley Ridge Diameter | 4.625 |
Refrigerant Type | R134a |

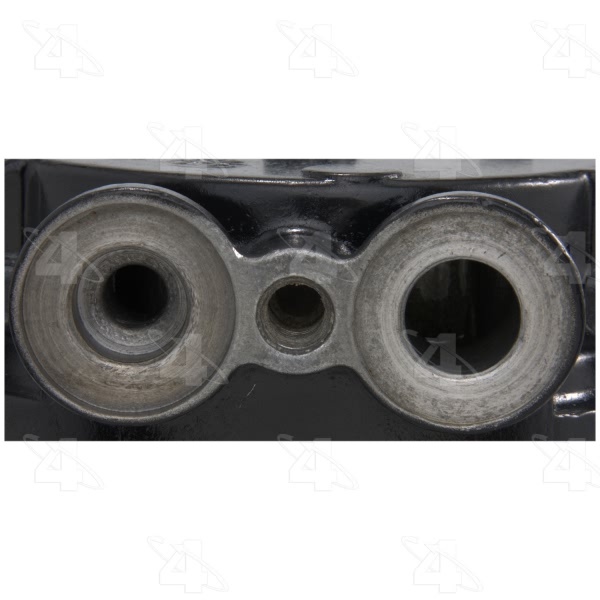

Suction Port Type | Sealing Washer |
Switch Included | High Pressure |

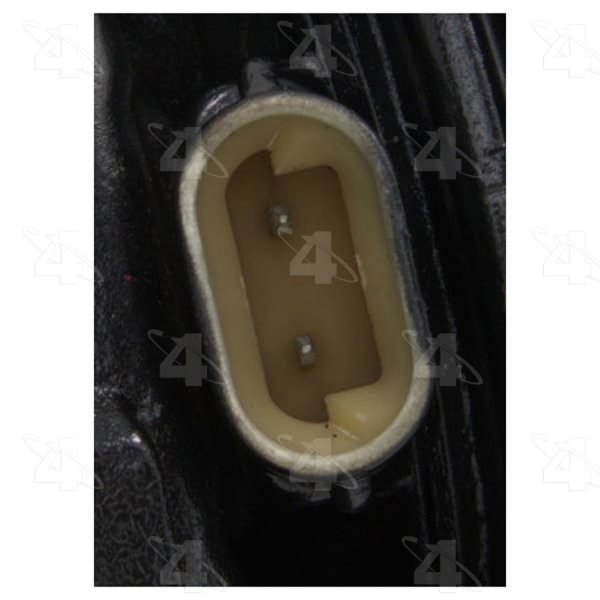

Terminal Type | 8mm Pin Connector |
UPC | 096361579491 |
Year Make Model | Trim | Engine |
---|---|---|
1996-2005 Chevrolet Astro | All Trims | All Engines |
1996-2005 GMC Safari | All Trims | All Engines |
