Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57878 |

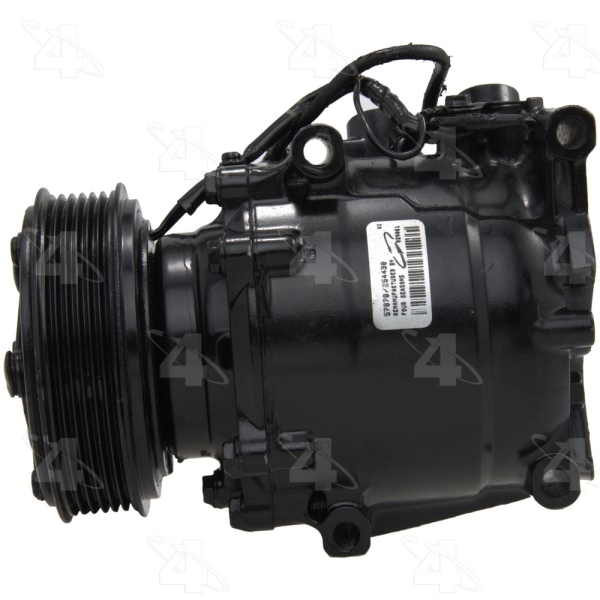

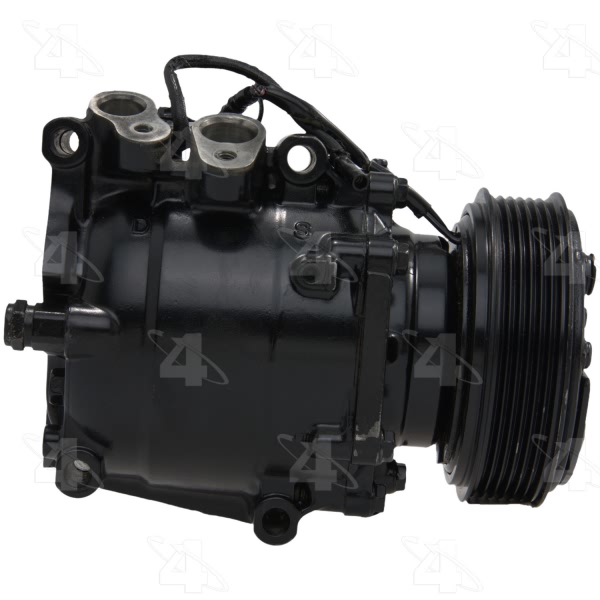

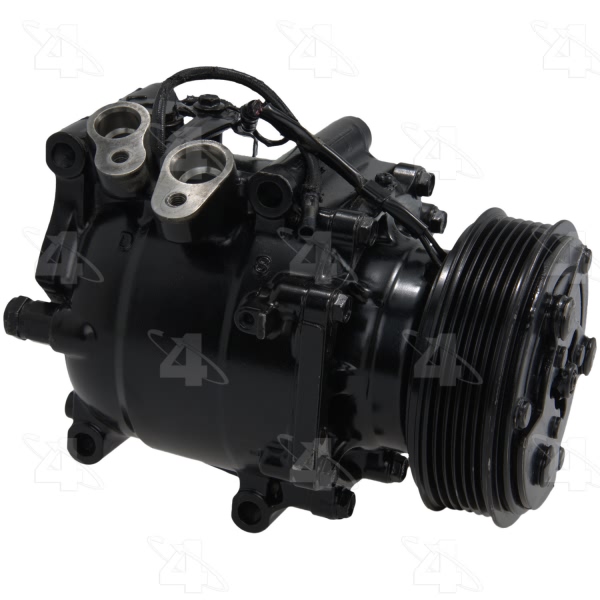

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.370 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | HS090 |
Distance From Clutch To Mounting Flange | 0.920 |
Mount Distance MM | 23.368 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 110.998 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.370 |
Pulley Outside Diameter | 4.370 |
Pulley Ridge Diameter | 4.370 |
Refrigerant Type | R134a |
Switch Included | Heat Sensor |
Terminal Type | Butt |
UPC | 096361578784 |
Year Make Model | Trim | Engine |
---|---|---|
1997-2001 Honda Prelude | All Trims | All Engines |
