Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57863 |

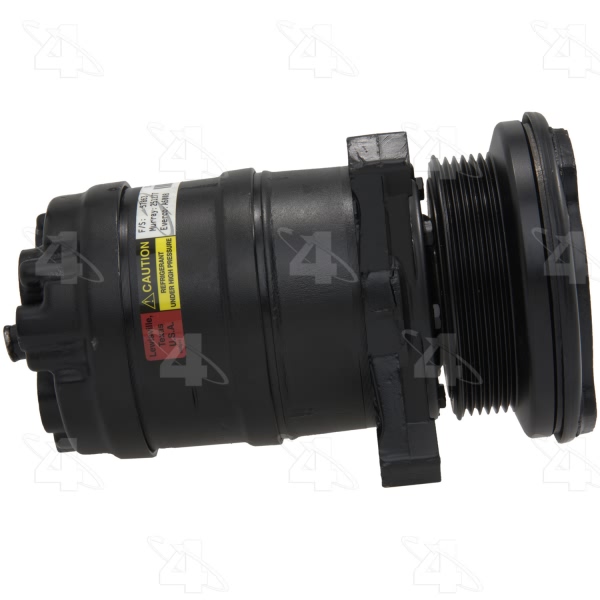

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.250 |
Coil Clock Position | 2 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | HR6, DA6 |
Distance From Clutch To Mounting Flange | 0.59375 |
Mounting Hardware | Not Included |
Mounting Type | Type I, Metric Threads |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24615] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 107.950 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.250 |
Pulley Outside Diameter | 4.250 |
Pulley Ridge Diameter | 4.250 |
Refrigerant Type | R134a |
Reman w/o Clutch | [57250] / Clutch Assembly |
Suc Prt Typ Note | W/ O-Rings / Sealing Washer |
Suction Port Type | Block Mount |

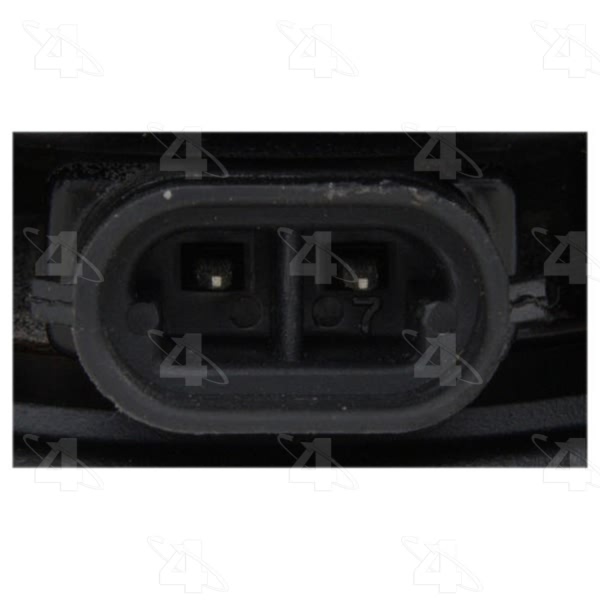

Terminal Type | 8mm Pin Connector |
UPC | 096361578630 |
Year Make Model | Trim | Engine |
---|---|---|
1989-1991 Cadillac Allante | All Trims | All Engines |
1989-1991 Cadillac Commercial Chassis | All Trims | All Engines |
1992-1993 Cadillac Commercial Chassis | Base | 8 Cyl 4.9L |
1989-1991 Cadillac DeVille | All Trims | All Engines |
1989-1991 Cadillac Eldorado | All Trims | All Engines |
1989 Cadillac Fleetwood | 60 Special | All Engines |
1989 Cadillac Fleetwood | Base | All Engines |
1989 Cadillac Fleetwood | d'Elegance | All Engines |
1989-1991 Cadillac Fleetwood | All Trims | All Engines |
1989-1991 Cadillac Seville | All Trims | All Engines |
