Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57632 |

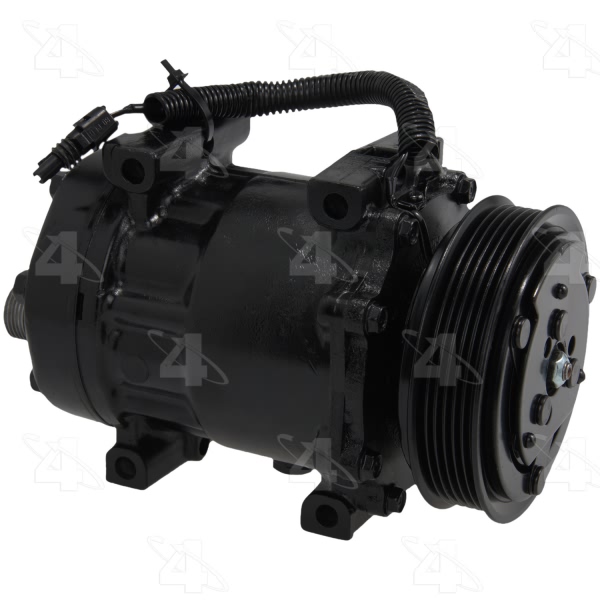

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.6875 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Comp Head Prt Config | Rear-Horiz-Tube O |
Compatible Refrigerant Oil Type | PAG 100 |
Compressor Head Type | MD |
Compressor Type | SD709 |

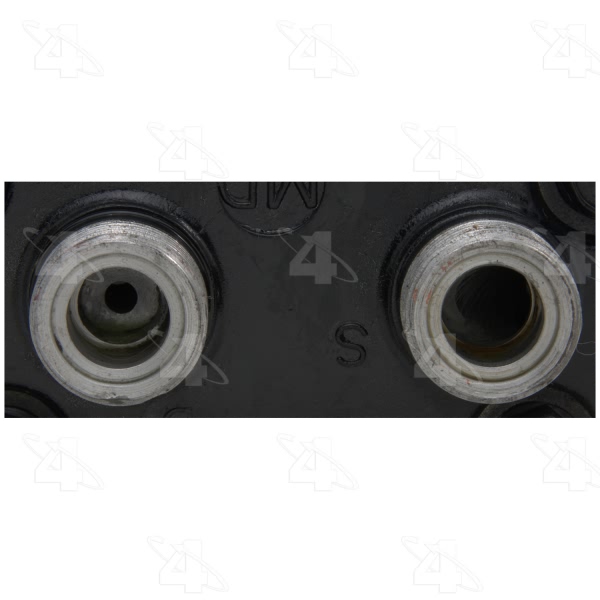

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.265625 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24111] / Mini York Teflon Seal O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 119.050 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.6875 |
Pulley Outside Diameter | 4.6875 |
Pulley Ridge Diameter | 4.6875 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361576322 |
Year Make Model | Trim | Engine |
---|---|---|
1991-1993 Jeep Cherokee | All Trims | All Engines |
1991-1992 Jeep Comanche | All Trims | All Engines |
1991-1995 Jeep Wrangler | All Trims | All Engines |
