Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57591 |

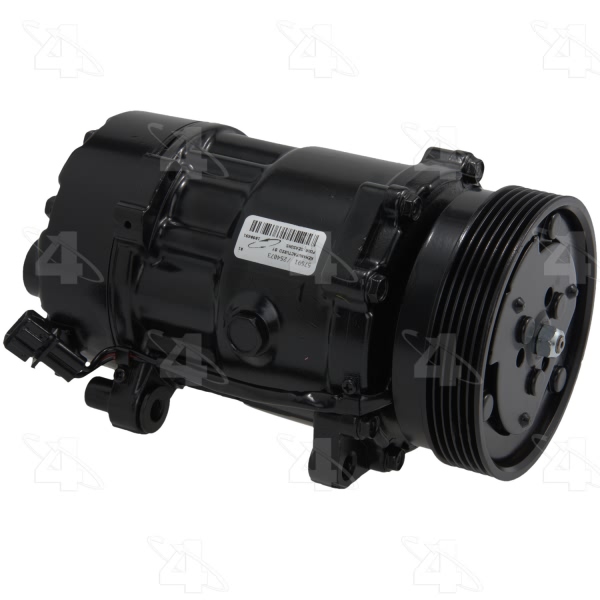

Part Description | Remanufactured A C Compressor With Clutch |
Belt Width IN | 0.750 |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.125 |
Coil Clock Position | Wire Lead |
Coil Voltage | 24 |

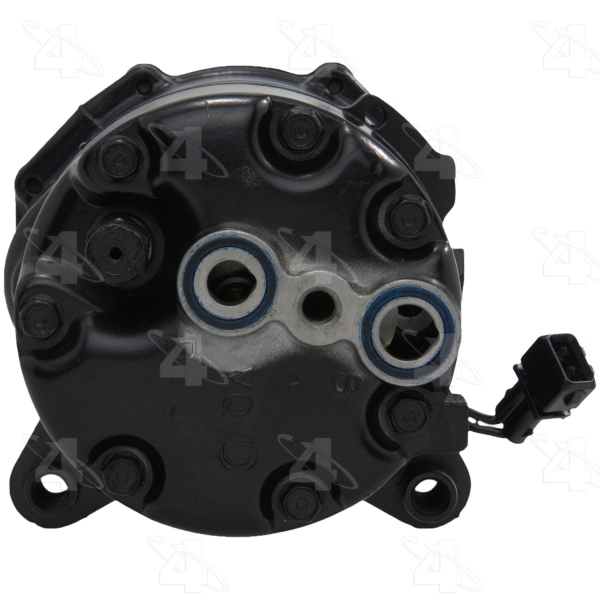

Comp Head Prt Config | Rear-Vert O-Ring |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Head Type | QD/VQ |
Compressor Type | SD7V16 |

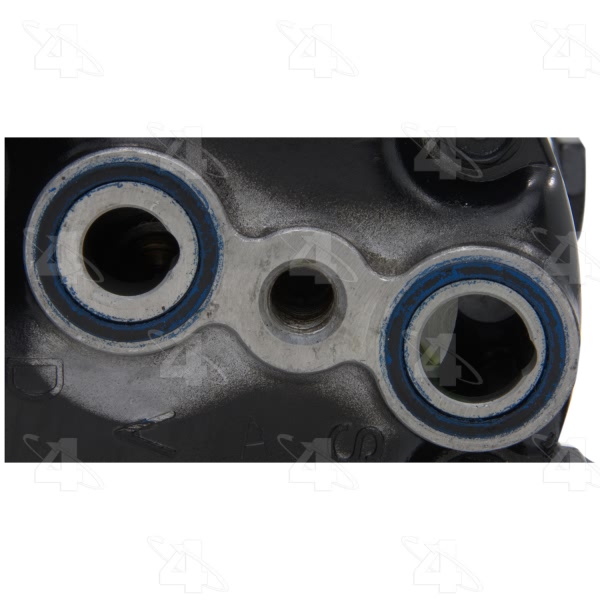

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.40625 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24626] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 130.048 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.125 |
Pulley Outside Diameter | 5.125 |
Pulley Ridge Diameter | 5.125 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |

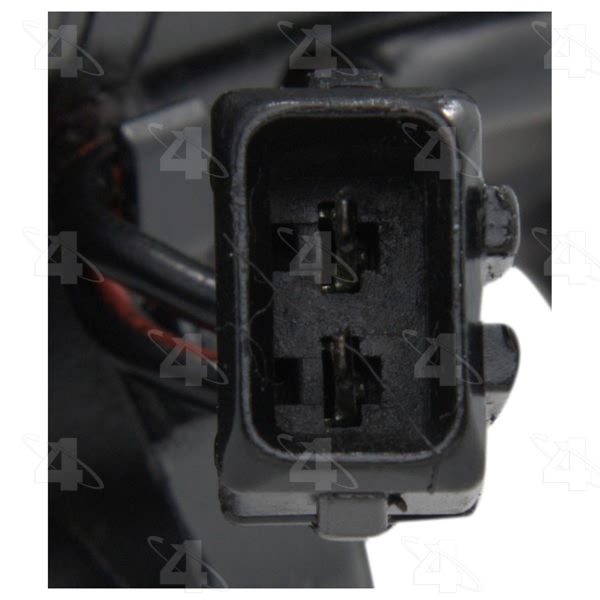

Terminal Type | Bullet |
UPC | 096361575912 |
Year Make Model | Trim | Engine |
---|---|---|
1995-2002 Volkswagen Cabrio | All Trims | All Engines |
1993-1998 Volkswagen Golf | All Trims | 4 Cyl 2.0L |
1993-1999 Volkswagen Jetta | All Trims | 4 Cyl 2.0L |
1997-1998 Volkswagen Jetta | All Trims | 4 Cyl 1.9L |
1993 Volkswagen Passat | All Trims | 4 Cyl 2.0L |
1995-1996 Volkswagen Passat | All Trims | 4 Cyl 2.0L |
1996-1997 Volkswagen Passat | All Trims | 4 Cyl 1.9L |
