Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57579 |
Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.000 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |

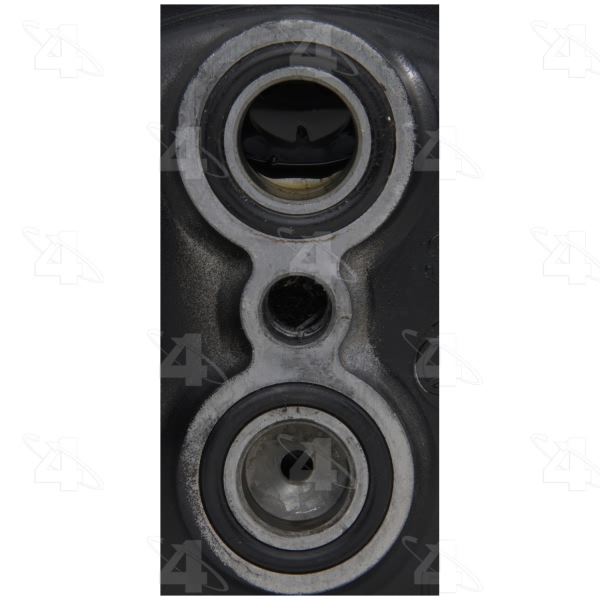

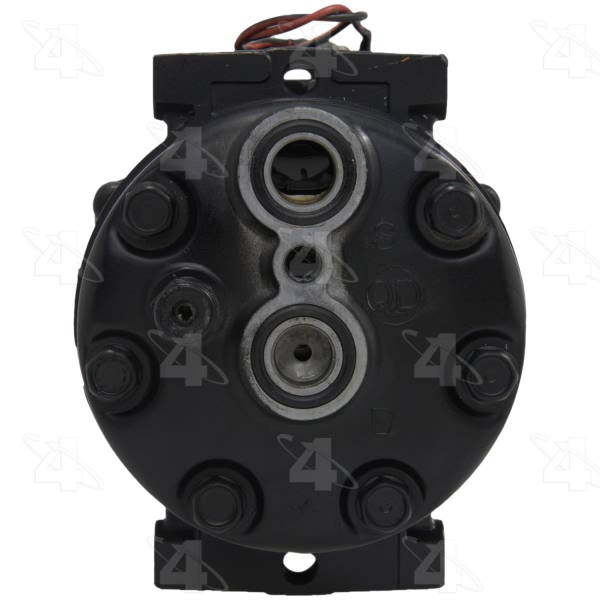

Comp Head Prt Config | Rear-Vert O-Ring |
Compatible Refrigerant Oil Type | PAG 100 |
Compressor Head Type | QD |
Compressor Type | SD708 |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.65625 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24615] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 127.000 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.000 |
Pulley Outside Diameter | 5.000 |
Pulley Ridge Diameter | 5.000 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |

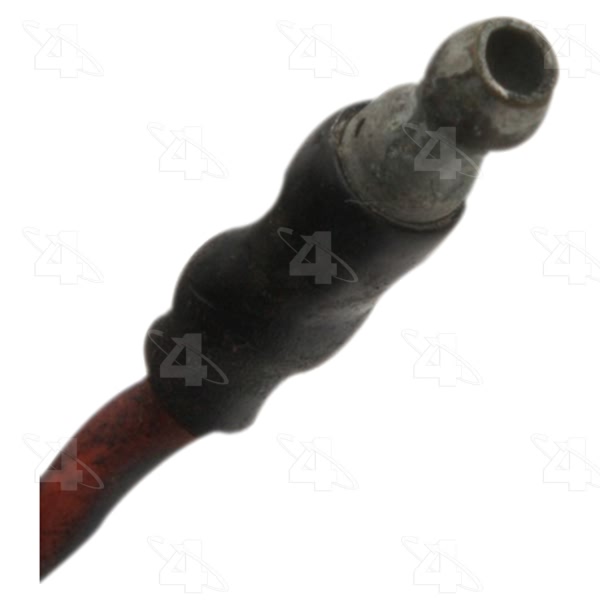

Terminal Type | Butt |
UPC | 096361575790 |
Year Make Model | Trim | Engine |
---|---|---|
1991-1994 Ford Escort | All Trims | 4 Cyl 1.8L |
1991-1994 Ford Escort | All Trims | 4 Cyl 1.9L |
1991-1994 Mercury Tracer | All Trims | 4 Cyl 1.8L |
1991-1994 Mercury Tracer | All Trims | 4 Cyl 1.9L |
