Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57490 |

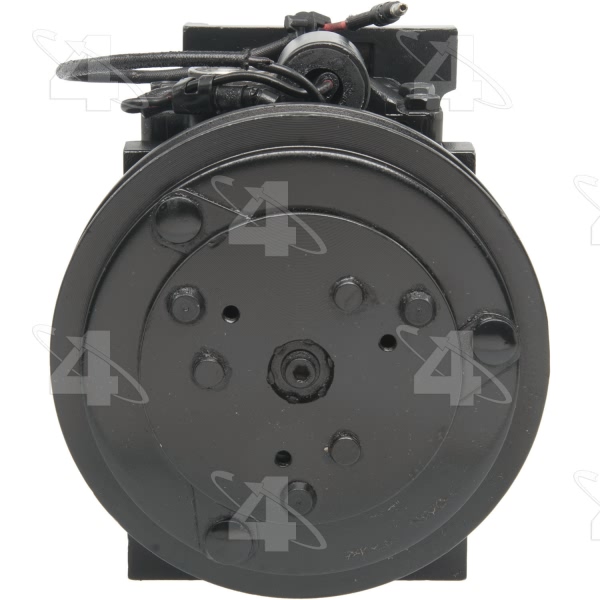

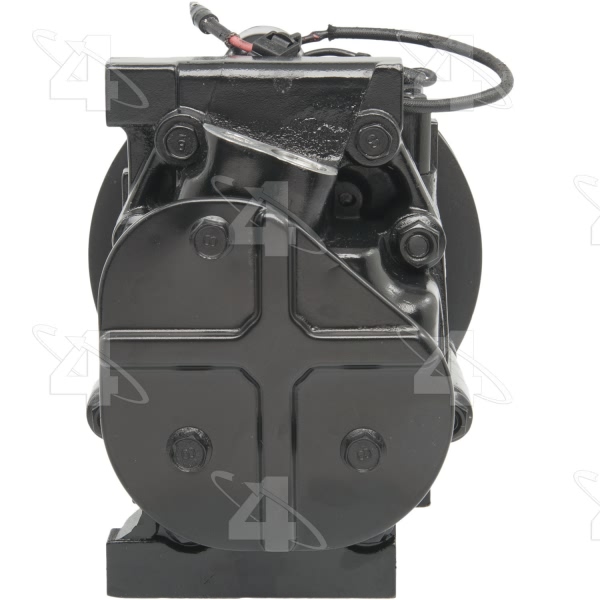

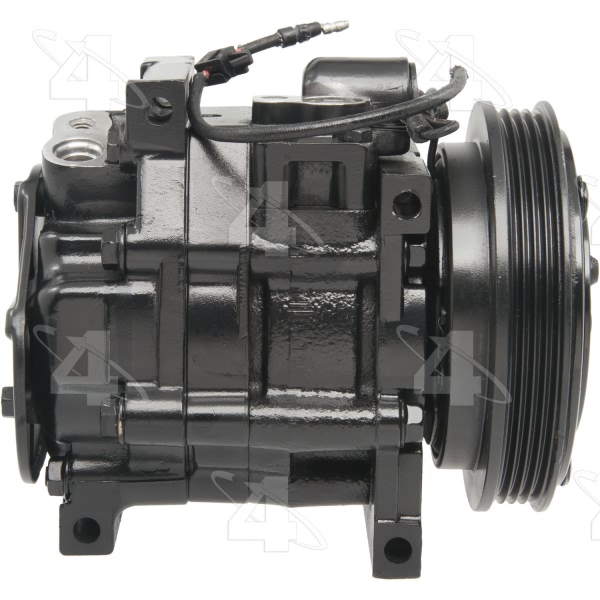

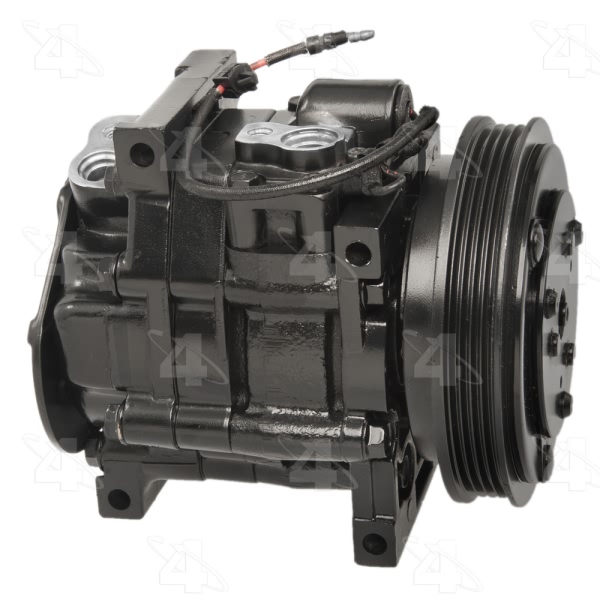

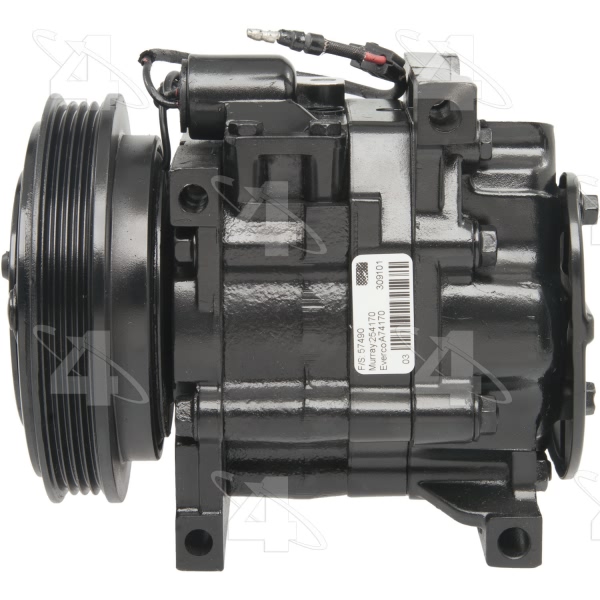

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.250 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | NL1302AD4 |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.000 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24610] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 133.350 |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 5.250 |
Pulley Outside Diameter | 5.250 |
Pulley Ridge Diameter | 5.250 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Spade |
UPC | 096361574908 |
Year Make Model | Trim | Engine |
---|---|---|
1988-1991 Honda CRX | All Trims | All Engines |
1988 Honda Civic | All Trims | All Engines |
1989 Honda Civic | All Trims | 4 Cyl 1.5L |
1990-1991 Honda Civic | All Trims | All Engines |
1993 Honda Civic del Sol | All Trims | All Engines |
