Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57474 |

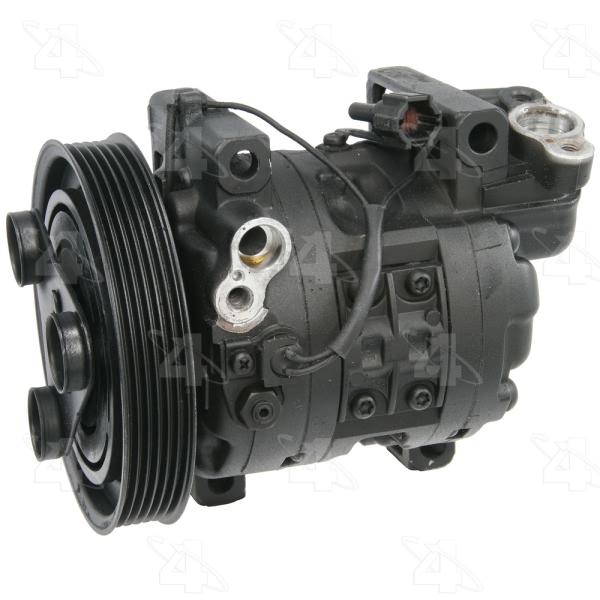

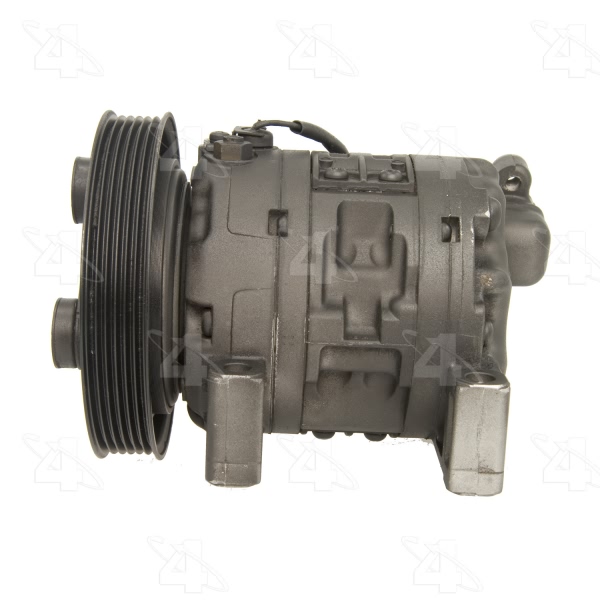

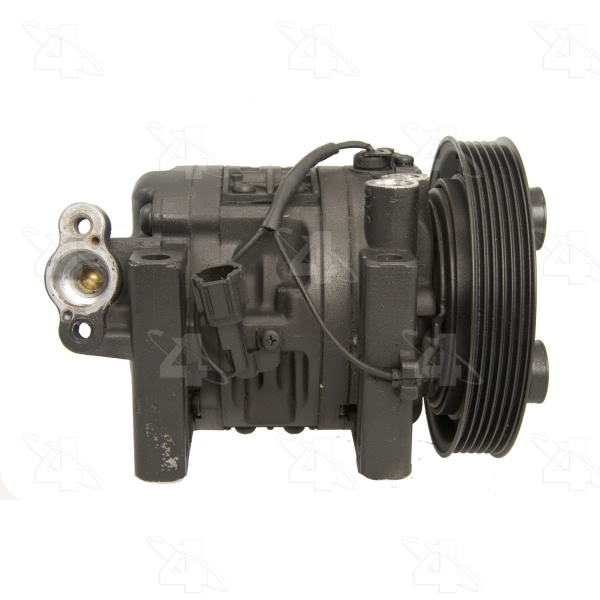

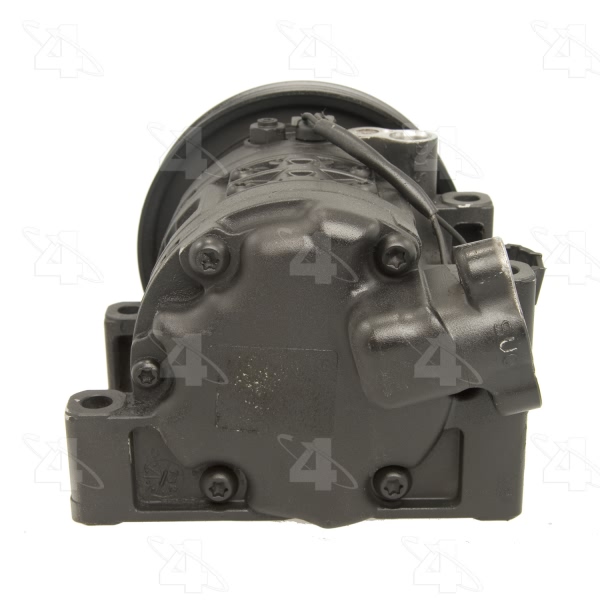

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.625 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 100 |
Compressor Type | DKV14D |

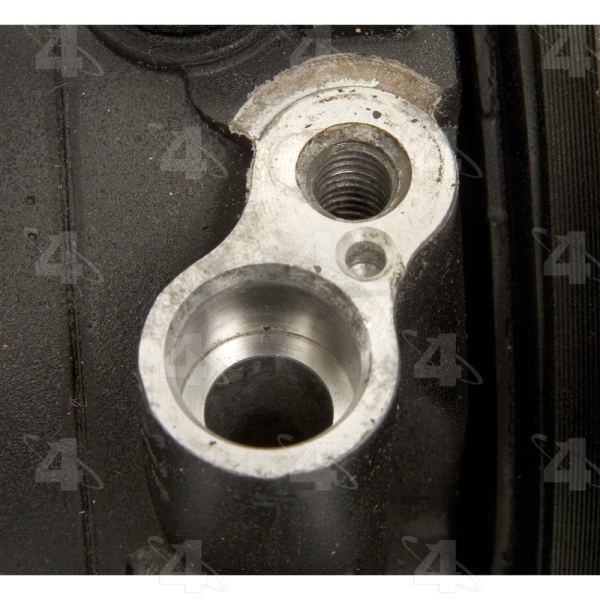

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.000 |
Mount Distance MM | 25.400 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24610] / Green O-Ring |
O-Ring B Quantity | 1 |

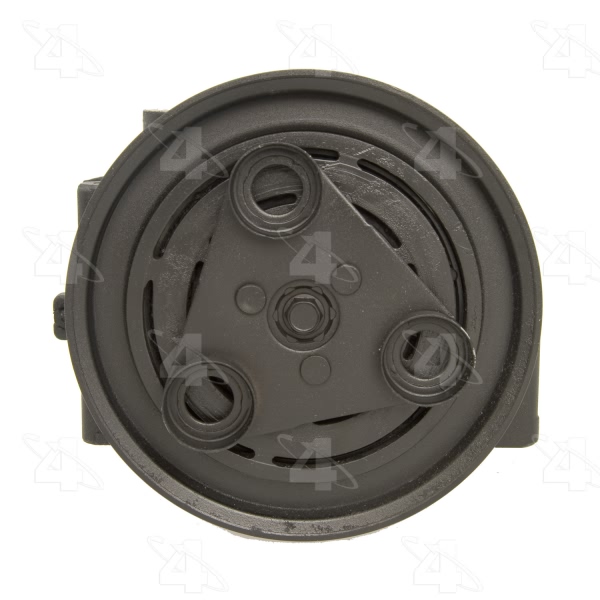

Pulley Belt Type | Serpentine |
Pulley Diameter MM | 142.875 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.625 |
Pulley Outside Diameter | 5.625 |
Pulley Ridge Diameter | 5.625 |
Refrigerant Type | R134a |
Suc Prt Typ Note | Smooth 2 Bolt |

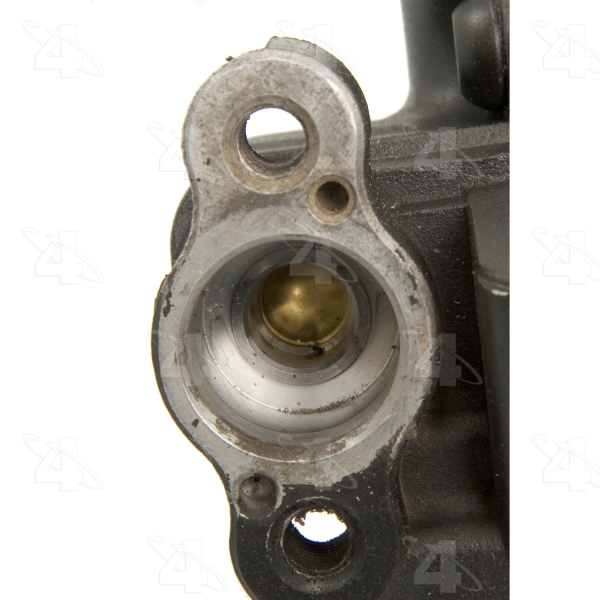

Suction Port Type | O-Ring |

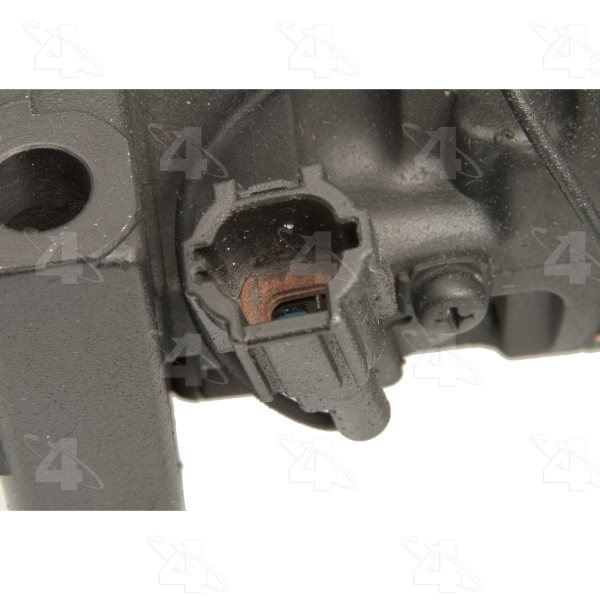

Switch Included | Heat Sensor |
Switch Type | Heat Switch |
Terminal Type | Pin |
UPC | 096361574748 |
Year Make Model | Trim | Engine |
---|---|---|
1993 Ford Probe | All Trims | 6 Cyl 2.5L |
1999-2000 Nissan Lucino | All Trims | 4 Cyl 2.0L |
1998 Nissan Sentra | All Trims | 4 Cyl 2.0L |
1999 Nissan Sentra | All Trims | All Engines |
1999 Nissan Tsuru | All Trims | All Engines |
